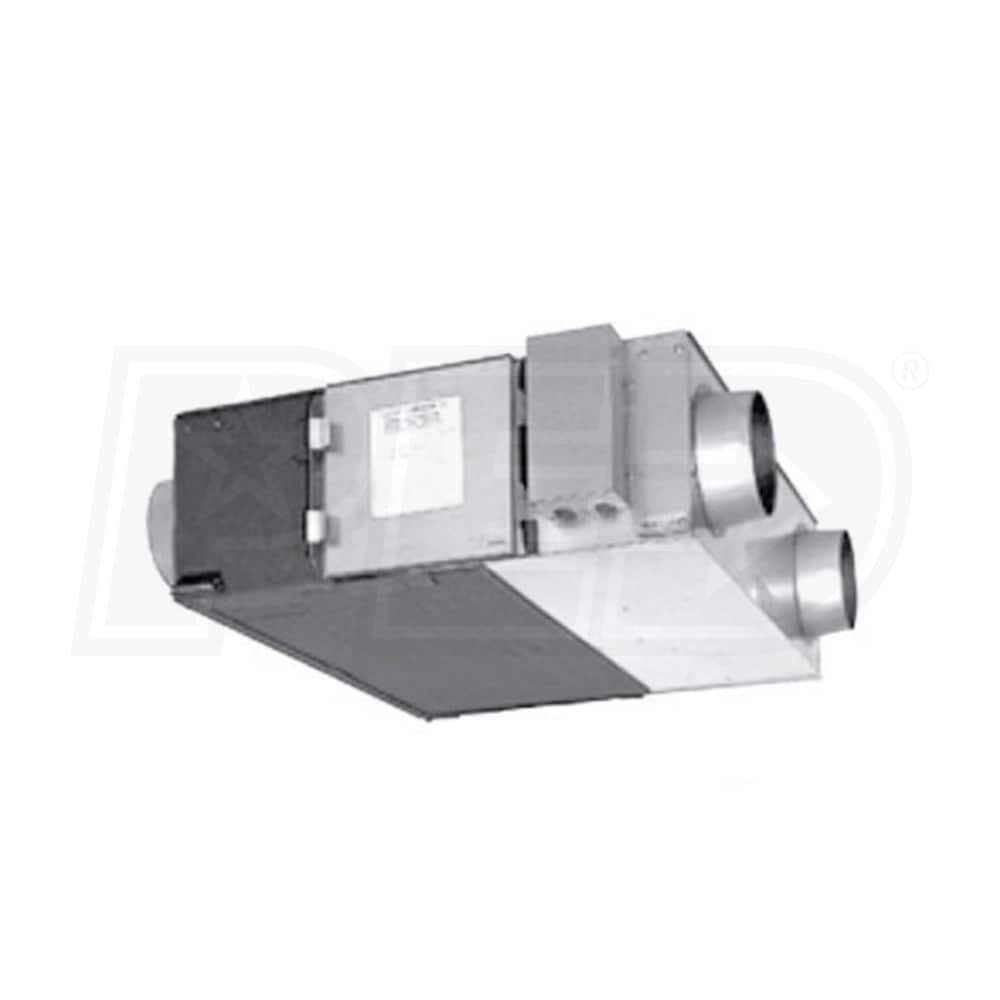

The LGH-F600RX5-E1 is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F600RX5-E1 is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F600RX5-E1 includes washable MERV 6 filters that keep the core clean by capturing outside pollutants.
The LGH-F600RX5-E1 uses a cross-flow air-to-air heat exchanger known as a Lossnay core. This core provides efficienct energy transfer with less than 1% cross contamination between the air flows. It is made from a uniquely processed cellulose paper that encourages moisture transfer to reduce the load on the cooling or humidification system.
Lossnay units are compatible with both BACnet and LonWorks interfaces and Mitsubishi M-Series and P-Series mini split indoor units, making it easy to control them as a part of a larger system.
Multiple Ventilation Modes
There are three standard ventilation modes for Lossnay ERVs. Energy recovery ventilation uses the Lossnay core to improve efficiency. Bypass ventilation circumvents the Lossnay core and is typically used to purge hot air from a system or draw cool outside air in as a way to mitigate environmental heat gain. Automatic ventilation mode switches between the these two modes based on data from the unit's internal temperature sensor.
High Static Pressure Blades
For the Lossnay line, Mitsubishi designed blower blades that increase static pressure, decrease noise levels, and provide ideal airflow in many applications.
MERV Rated Filtration
This energy recovery ventilator provides additional filtration for your home or business. The included MERV 6 rated filter captures contaminants as small as 3 micrometers, including pollen, dust, mold, and dander.
- (1) Mitsubishi LGH-F600RX5-E1 Lossnay Energy Recovery Ventilator
- (1) P-Series/Lossnay Connection Cable
- (4) Duct Connecting Flanges
- (16) Mounting Screws
