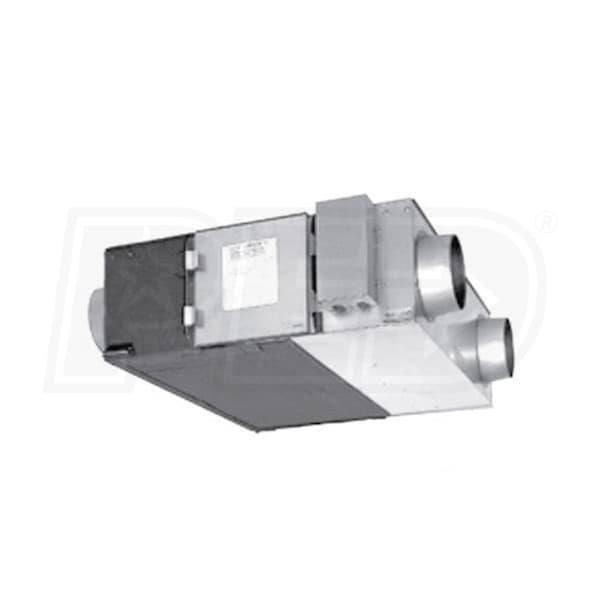

Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10-5/8" Duct - Exhaust Defrost

Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10-5/8" Duct - Exhaust Defrost
Model: LGH-F1200RX5-E1
$6,017.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

Factory-Direct
Ships in 7-14 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The LGH-F1200RX5-E1 is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F1200RX5-E1 is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F1200RX5-E1 includes washable MERV 6 filters that keep the core clean by capturing outside pollutants.

    Product Features

    Lossnay Core
    The LGH-F1200RX5-E1 uses a cross-flow air-to-air heat exchanger known as a Lossnay core. This core provides efficienct energy transfer with less than 1% cross contamination between the air flows. It is made from a uniquely processed cellulose paper that encourages moisture transfer to reduce the load on the cooling or humidification system.

    Extensive Connectivity
    Lossnay units are compatible with both BACnet and LonWorks interfaces and Mitsubishi M-Series and P-Series mini split indoor units, making it easy to control them as a part of a larger system.

    Multiple Ventilation Modes
    There are three standard ventilation modes for Lossnay ERVs. Energy recovery ventilation uses the Lossnay core to improve efficiency. Bypass ventilation circumvents the Lossnay core and is typically used to purge hot air from a system or draw cool outside air in as a way to mitigate environmental heat gain. Automatic ventilation mode switches between the these two modes based on data from the unit's internal temperature sensor.

    High Static Pressure Blades
    For the Lossnay line, Mitsubishi designed blower blades that increase static pressure, decrease noise levels, and provide ideal airflow in many applications.

    MERV Rated Filtration
    This energy recovery ventilator provides additional filtration for your home or business. The included MERV 6 rated filter captures contaminants as small as 3 micrometers, including pollen, dust, mold, and dander.

    Product Includes
    • (1) Mitsubishi LGH-F1200RX5-E1 Lossnay Energy Recovery Ventilator
    • (1) P-Series/Lossnay Connection Cable
    • (4) Duct Connecting Flanges
    • (16) Mounting Screws
Specifications
General Information
Type
ERV
Product Line
Lossnay
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
Finish
Galvanized Steel Sheet
Core Material
Lossnay Core
Performance
Sensible Recovery Efficiency
73 %
Total Recovery Efficiency
68 %
Minimum Air Flow
824 CFM
Maximum Air Flow
1200 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40.5 dB
Minimum Sound Level
32 dB
Electrical Data
Power Consumption
1303 Watts
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.1 Amps
Recommended Breaker Size
15 Amps
Dimensions
Duct Connection
10.625 Inches
Product Height
31.4375 Inches
Product Width
48.5 Inches
Product Length
45.625 Inches
Product Weight
265 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Features
Features

    The LGH-F1200RX5-E1 is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F1200RX5-E1 is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F1200RX5-E1 includes washable MERV 6 filters that keep the core clean by capturing outside pollutants.

    Product Features

    Lossnay Core
    The LGH-F1200RX5-E1 uses a cross-flow air-to-air heat exchanger known as a Lossnay core. This core provides efficienct energy transfer with less than 1% cross contamination between the air flows. It is made from a uniquely processed cellulose paper that encourages moisture transfer to reduce the load on the cooling or humidification system.

    Extensive Connectivity
    Lossnay units are compatible with both BACnet and LonWorks interfaces and Mitsubishi M-Series and P-Series mini split indoor units, making it easy to control them as a part of a larger system.

    Multiple Ventilation Modes
    There are three standard ventilation modes for Lossnay ERVs. Energy recovery ventilation uses the Lossnay core to improve efficiency. Bypass ventilation circumvents the Lossnay core and is typically used to purge hot air from a system or draw cool outside air in as a way to mitigate environmental heat gain. Automatic ventilation mode switches between the these two modes based on data from the unit's internal temperature sensor.

    High Static Pressure Blades
    For the Lossnay line, Mitsubishi designed blower blades that increase static pressure, decrease noise levels, and provide ideal airflow in many applications.

    MERV Rated Filtration
    This energy recovery ventilator provides additional filtration for your home or business. The included MERV 6 rated filter captures contaminants as small as 3 micrometers, including pollen, dust, mold, and dander.

    Product Includes
    • (1) Mitsubishi LGH-F1200RX5-E1 Lossnay Energy Recovery Ventilator
    • (1) P-Series/Lossnay Connection Cable
    • (4) Duct Connecting Flanges
    • (16) Mounting Screws
Specifications
General Information
Type
ERV
Product Line
Lossnay
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
Finish
Galvanized Steel Sheet
Core Material
Lossnay Core
Performance
Sensible Recovery Efficiency
73 %
Total Recovery Efficiency
68 %
Minimum Air Flow
824 CFM
Maximum Air Flow
1200 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40.5 dB
Minimum Sound Level
32 dB
Electrical Data
Power Consumption
1303 Watts
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.1 Amps
Recommended Breaker Size
15 Amps
Dimensions
Duct Connection
10.625 Inches
Product Height
31.4375 Inches
Product Width
48.5 Inches
Product Length
45.625 Inches
Product Weight
265 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Product Specs
+
Specifications
General Information
Type
ERV
Product Line
Lossnay
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
Finish
Galvanized Steel Sheet
Core Material
Lossnay Core
Performance
Sensible Recovery Efficiency
73 %
Total Recovery Efficiency
68 %
Minimum Air Flow
824 CFM
Maximum Air Flow
1200 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40.5 dB
Minimum Sound Level
32 dB
Electrical Data
Power Consumption
1303 Watts
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.1 Amps
Recommended Breaker Size
15 Amps
Dimensions
Duct Connection
10.625 Inches
Product Height
31.4375 Inches
Product Width
48.5 Inches
Product Length
45.625 Inches
Product Weight
265 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
