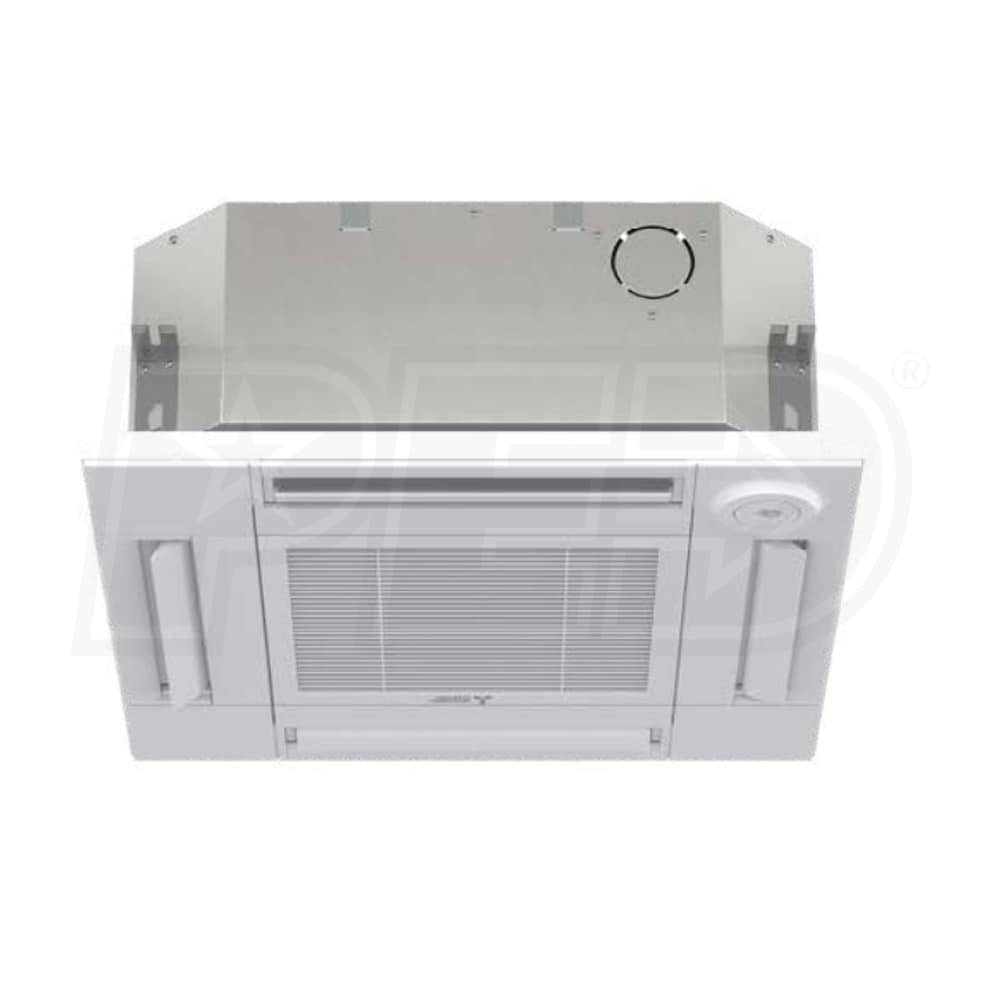

Mitsubishi M-Series Ceiling Cassette with Grille - Multi or Single-Zone - 15k BTU - R-454B

Model:

SLZ-AF15NL

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mitsubishi M-Series Ceiling Cassette with Grille - Multi or Single-Zone - 15k BTU - R-454B
Mitsubishi M-Series Ceiling Cassette with Grille - Multi or Single-Zone - 15k BTU - R-454B
Model: SLZ-AF15NL
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SLZ-AF15NL is an unobtrusive ceiling cassette unit for use in single-zone or multi-zone mini split systems. The low-profile design is paired with quiet operations that provide comfort without disrupting your space. With multiple operating modes, multiple fan speeds and airflow directions, the SLZ-AF15NL fits the needs of nearly any room.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Powerful Mode
  • The powerful setting on the SLZ-AF makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Condensate Removal System
  • The SLZ-AF contains an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Includes
    • (1) Mitsubishi M-Series Ceiling Cassette without Grille - Multi or Single-Zone - 15k BTU - R-454B (SLZ-AF15NL)
    • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units (SLP-18FAU)
    Product Note
    This product requires a compatible Mitsubishi mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.

Specifications

Product Includes
  • (1) Mitsubishi M-Series Ceiling Cassette without Grille - Multi or Single-Zone - 15k BTU - R-454B (SLZ-AF15NL)
  • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units (SLP-18FAU)
SLZ-AF15NL
specs product image PID-168593
General Information
Type
Ceiling Cassette
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-454B
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Grille
Included
Required Grille Model
SLP-18FAU
Additional Model Numbers

SLZ-AF15NLG, SLZ-AF15NL

Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Heating Capacity
18000 BTU
Moisture Removal
3.8 Pints/Hour
Maximum Air Flow
405 CFM
Minimum Air Flow
245 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 3/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
36 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLZ-AF15NL
General Information
Type
Ceiling Cassette
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-454B
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAU
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Heating Capacity
18000 BTU
Moisture Removal
3.8 Pints/Hour
Maximum Air Flow
405 CFM
Minimum Air Flow
245 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 3/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
36 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLP-18FAU
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
