Primary Mini Split Installation Starter Kit - 50' Long - 3/8" x 5/8" Line Set - One Required

Model:

MSPLTKIT-385850

Write A Review
$666.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$111 / Month
Suggested monthly payments with 6 month financing.
Primary Mini Split Installation Starter Kit - 50' Long - 3/8
Primary Mini Split Installation Starter Kit - 50' Long - 3/8" x 5/8" Line Set - One Required
Model: MSPLTKIT-385850
$666.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Each mini split system requires certain accessories for installation. The Mini Split Installation Starter Kit has everything necessary to install your new single-zone mini split system. Our convenient starter package brings together essential components--from a selection of top brands--to ensure that your mini split installation is a quick, smooth, and safe process.

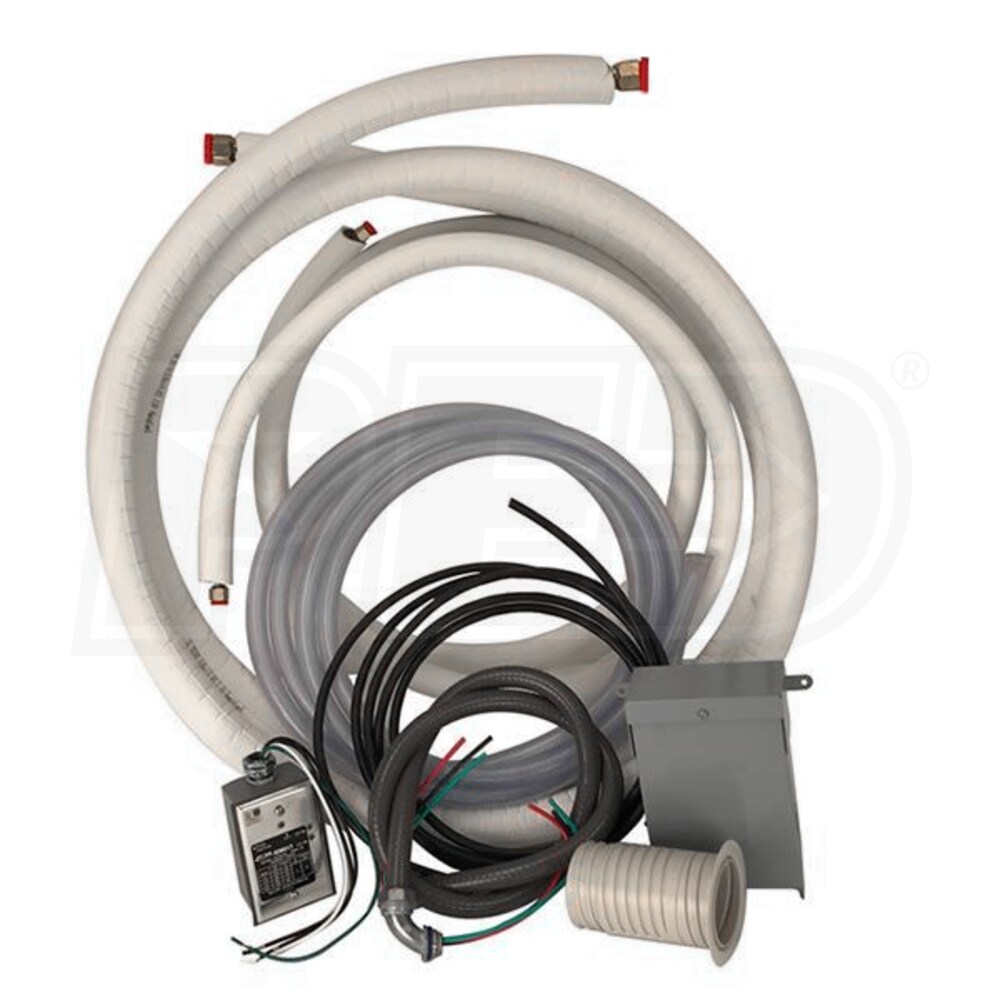

    Product Includes
    • (1) HVAC Solutions - 3/8" x 5/8" Insulated Mini Split Line Set - 50' Length - Factory Flared (MLS385812-50)
    • (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 50' Length (MSCABLE144-50)
    • (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517)
    • (1) Mini Split 50' Length 5/8" ID PVC Braided Drain Tubing (DRAINTUBING-50)
    • (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90° Connector (18831)
    • (1) Bramec 60A Non-Fused Metal Disconnect (20650)
    • (1) Rectorseal NFP - Telescopic Wall Sleeve - 2-1/2" ID - 2-7/8" OD (NFP-75)
    Product Note
    Connection between outdoor and indoor units may require a longer length of mini split cable than the distance between the units. We recommend oversizing the length of the cable to account for this difference. During peak season, the lineset may come in black while white is in high demand. Due to lead times and availability, we source linesets from multiple suppliers.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) HVAC Solutions - 3/8" x 5/8" Insulated Mini Split Line Set - 50' Length - Factory Flared (MLS385812-50)
  • (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 50' Length (MSCABLE144-50)
  • (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517)
  • (1) Mini Split 50' Length 5/8" ID PVC Braided Drain Tubing (DRAINTUBING-50)
  • (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90° Connector (18831)
  • (1) Bramec 60A Non-Fused Metal Disconnect (20650)
  • (1) Rectorseal NFP - Telescopic Wall Sleeve - 2-1/2" ID - 2-7/8" OD (NFP-75)
MSPLTKIT-385850
specs product image PID-56540
Overview
Product Category
Mini Split Accessories
General Information
Type
Installation Kit
Product Category
Mini Split Accessories
Dimensions
Product Weight
46.7 Pounds
MLS385812-50
General Information
Type
Mini Split Line Set
Product Category
Mini Split Accessories
Connection Type
Flared
Dimensions
Insulation Depth
1/2 Inch
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Length
50 Feet
Product Weight
19 Pounds
Shipping Height
33 Inches
Shipping Width
6 3/4 Inches
Shipping Depth
34 Inches
Shipping Weight
24 Pounds
Overview
Product Category
Mini Split Accessories
MSCABLE144-50
General Information
Product Category
Mini Split Accessories
Length Increments
50
Color
Black
Dimensions
Product Weight
5 Pounds
Shipping Weight
7 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Overview
Product Category
Mini Split Accessories
General Information
Type
Surge Protector
Product Category
Mini Split Accessories
Surge Protection Device Type
2
Electrical Data
Phase
1
Frequency
60 Hz
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
20000 Amps
Dimensions
Product Height
4 1/2 Inches
Product Width
4 1/4 Inches
Product Depth
2 Inches
Product Weight
1 Pound
Shipping Weight
1 Pound
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Overview
Product Category
Mini Split Accessories
DRAINTUBING-50
General Information
Type
Drain Tubing
Product Category
Mini Split Accessories
Dimensions
Product Length
50 Feet
Product Weight
1 Pound
Shipping Weight
1 Pound
Overview
Product Category
Mini Split Accessories
General Information
Type
Electrical Whip
Product Category
Mini Split Accessories
Dimensions
Product Weight
2 Pounds
Shipping Weight
3 Pounds
Overview
Product Category
Mini Split Accessories
General Information
Type
Disconnect
Product Category
Mini Split Accessories
Dimensions
Product Weight
5 Pounds
Shipping Weight
7 Pounds
Overview
Product Category
Mini Split Accessories
General Information
Type
Line Set Cover
Product Category
Mini Split Accessories
Dimensions
Product Depth
7 1/2 Inches
Product Weight
1 Pound
Shipping Weight
2 Pounds
Inner Diameter
2 1/2 Inches
Outer Diameter
2 7/8 Inches
Overview
Product Category
Mini Split Accessories

Reviews

(3)
Mini Split Accessories MSPLTKIT-385850 Reviews & Ratings

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Bob, the eComfort Product Expert
Can the line set be bent 90 degrees to go around an outside corner of a building?
Steve
from Florida
June 22, 2016
Does the disconnect box include an electrical shut-off switch?
Greg
from Arkansas
June 22, 2016

How-To Articles

How to Pick the Perfect Line Set Cover
How to Pick the Perfect Line Set Cover
Installing a line set cover is the icing on the cake for your mini-split system...
How to Remove Condensate from Mini Split Units
How to Remove Condensate from Mini Split Units
One of the requirements of owning a mini split is a way to drain condensate. As...
Mini Split Accessory Buying Guide
Mini Split Accessory Buying Guide
Details matter. If you own or are considering owning a ductless mini split syst...
