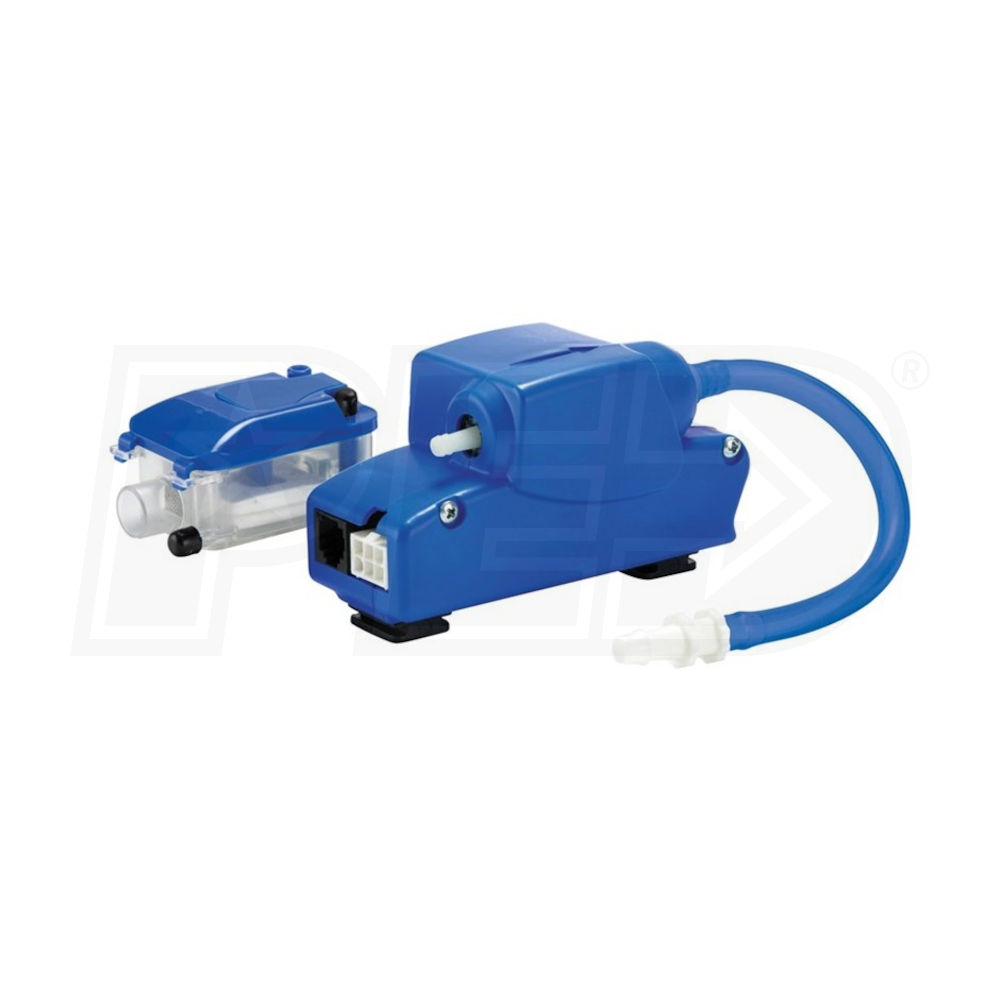

Little Giant EC-1 - Mini Split Condensate Removal Pump - 115V - Up to 34,000 BTU

Model:

553500

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant EC-1 - Mini Split Condensate Removal Pump - 115V - Up to 34,000 BTU
Little Giant EC-1 - Mini Split Condensate Removal Pump - 115V - Up to 34,000 BTU
Model: 553500
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Condensate needs to be drained from your HVAC equipment to maintain proper function. The Little Giant EC-1 is a used to remove condensate from wall mount and ductless mini-split cooling systems up to 34,000 BTU. The two-piece design of the EC-1-DV with its included wall brackets makes it convenient to install. The noise reducing design of the EC-1 makes this the optimal choice for your in wall or false ceiling condensate removal needs.
  • Designed for HVAC
  • The convenient two piece design of the EC-1 allows the reservoir to be put inside the air handler with the pump controller is outside the air handler.
  • Clear Reservoir
  • Easily view the water level, float and filter through the clear reservoir on the Little Giant EC-1.
  • Easy to Install
  • Install the EC-1 above your air conditioner in a false ceiling, behind a wall mount air handler or in a plastic conduit or line-set channel.
  • Product Includes
  • Pump
  • Pump Bracket
  • Reservoir/Filter Screen
  • Reservoir Bracket
  • Adapter
  • Wiring Harness
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

553500
specs product image PID-89760
General Information
Type
Condensate Pump
UPC
010121145085
Performance
Maximum Water Temperature
140 F
Suction Lift
3 Feet
Maximum Shut Off
33 feet
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
21 dB
Maximum Ambient Temperature
140 F
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Discharge Port Size
0.25 Inches
Product Height
4 5/48 Inches
Product Width
2 19/48 Inches
Product Length
1 12/15 Inches
Product Weight
1.7 Pounds
Power Cord Length
5 Feet
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
