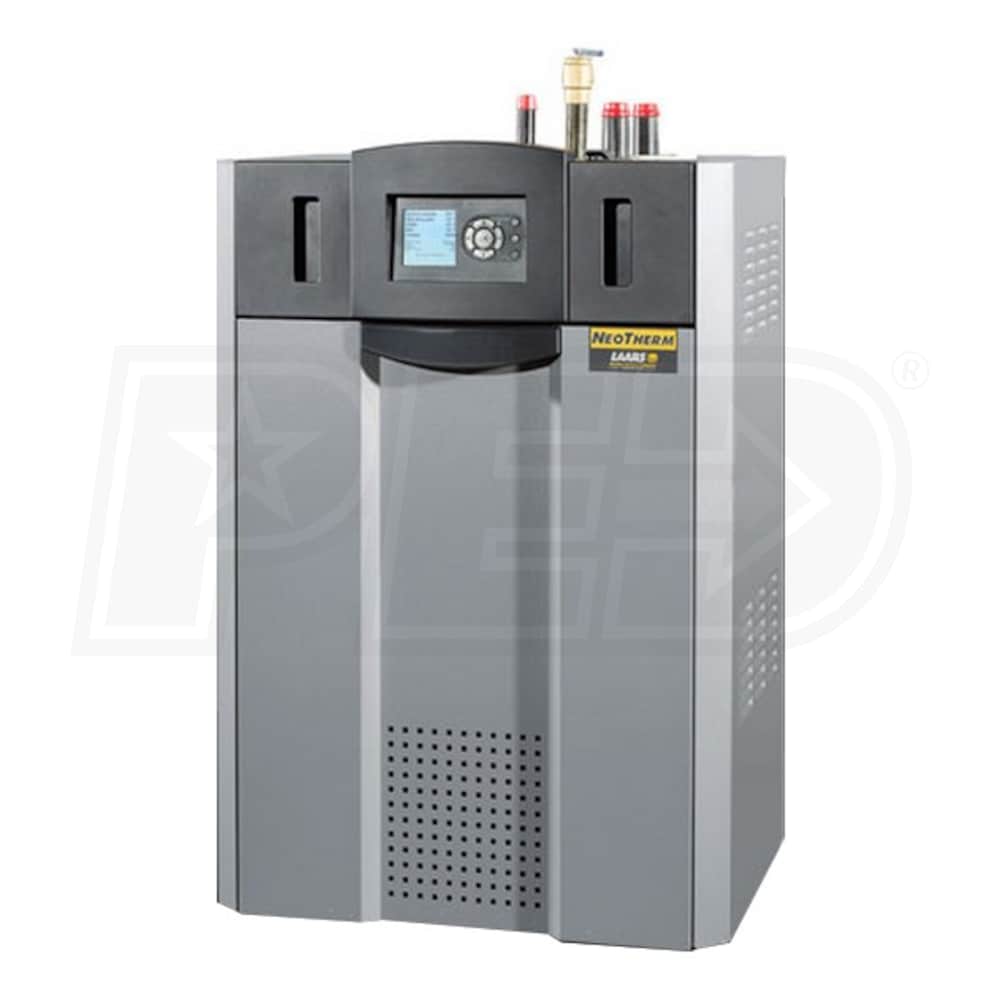

Laars NTH-105 - 96K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent

Laars NTH-105 - 96K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent
Model: NTH105NXN3
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Laars NeoTherm boilers set a new standard for high efficiency hydronic heating in a small, compact package. A fully stainless steel heat exchanger lies at the heart of the boiler, ensuring that heat transfer between burned fuel and your home's heating medium is effortless and fast. This condensing boiler extracts every last BTU possible of heat energy from burned fuel, keeping your home's heating bills to an absolute minimum. Sealed combustion burning chambers and venting systems keep your home's air fresh while allowing the boiler to supply itself with oxygen saturated combustion air. A fully modulating burner allows the boiler to scale its burning rate to your home's heating demand, topping off the feature set of this highly efficient boiler.

    Product Features

    Stainless Steel Heat Exchanger
    The NTH105NXN3's heat exchanger is constructed from high grade stainless steel. This high grade material not only facilitates greater heat transfer between combusted flue gas and the system's hot water, but also provides a significant durability increase.

    Fully Modulating Burner
    The NeoTherm's is capable of a 5 to 1 turndown ratio, firing at between 20% and 100% of its total capacity to efficiently match your home's heating needs. This results in less temperature fluctuation and lower heating bills during warmer months.

    Separated Combustion Venting
    The NeoTherm's venting system separates your home's air from the air used by the burner for combustion, keeping your home's air oxygenated and fresh and the burner's flame well supplied at the same time.

    Included Pump
    This NeoTherm comes with a Laars pump pre-installed, eliminating the need to purchase a system circulation pump.

Specifications
General Information
Product Line
NeoTherm
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
105000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
96000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
83000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
2 Inches
Gas Connection Size
0.5 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
38 Inches
Product Width
24.5 Inches
Product Depth
19.5 Inches
Product Weight
188 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
5 Years
Certifications
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2100427
Features
Features

    Laars NeoTherm boilers set a new standard for high efficiency hydronic heating in a small, compact package. A fully stainless steel heat exchanger lies at the heart of the boiler, ensuring that heat transfer between burned fuel and your home's heating medium is effortless and fast. This condensing boiler extracts every last BTU possible of heat energy from burned fuel, keeping your home's heating bills to an absolute minimum. Sealed combustion burning chambers and venting systems keep your home's air fresh while allowing the boiler to supply itself with oxygen saturated combustion air. A fully modulating burner allows the boiler to scale its burning rate to your home's heating demand, topping off the feature set of this highly efficient boiler.

    Product Features

    Stainless Steel Heat Exchanger
    The NTH105NXN3's heat exchanger is constructed from high grade stainless steel. This high grade material not only facilitates greater heat transfer between combusted flue gas and the system's hot water, but also provides a significant durability increase.

    Fully Modulating Burner
    The NeoTherm's is capable of a 5 to 1 turndown ratio, firing at between 20% and 100% of its total capacity to efficiently match your home's heating needs. This results in less temperature fluctuation and lower heating bills during warmer months.

    Separated Combustion Venting
    The NeoTherm's venting system separates your home's air from the air used by the burner for combustion, keeping your home's air oxygenated and fresh and the burner's flame well supplied at the same time.

    Included Pump
    This NeoTherm comes with a Laars pump pre-installed, eliminating the need to purchase a system circulation pump.

Specifications
General Information
Product Line
NeoTherm
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
105000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
96000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
83000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
2 Inches
Gas Connection Size
0.5 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
38 Inches
Product Width
24.5 Inches
Product Depth
19.5 Inches
Product Weight
188 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
5 Years
Certifications
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2100427
Product Specs
+
Specifications
General Information
Product Line
NeoTherm
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
105000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
96000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
83000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
2 Inches
Gas Connection Size
0.5 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
38 Inches
Product Width
24.5 Inches
Product Depth
19.5 Inches
Product Weight
188 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
5 Years
Certifications
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2100427
