Features
- Simple Installation
- This branch distribution unit features flared joints to improve the speed and ease of installation.
- Product Compatible With
- LG LMU360HHV Mini Split Outdoor Condenser
- LG LMU420HHV Mini Split Outdoor Condenser
- LG LMU480HV Mini Split Outdoor Condenser
- LG LMU540HV Mini Split Outdoor Condenser
- LG LMU600HV Mini Split Outdoor Condenser
The PMBD3620 is a two port branch distribution unit for LG's Multi F LMU540HV mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the LMU540HV to Multi F mini split indoor units.
Product Note
All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box and from the branch box to the indoor unit.
Specifications
PMBD3620
Overview
Product Category
Mini Split Accessories
UPC
048231368155
General Information
Type
Branch Box
Product Line
Multi F
Product Category
Mini Split Accessories
Ports Quantity
2
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
48000 BTU
Electrical Data
Power Consumption
16 Watts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
5 11/12 Inches
Product Width
9 41/48 Inches
Product Depth
11 13/16 Inches
Product Weight
13 Pounds
Shipping Weight
15 Pounds
Certifications
Country of Origin
Korea
Reviews
(3)
LG PMBD3620 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
How do you connect 5 air handlers to the branch box?
Bobby I
from Mississippi
July 10, 2017
How-To Articles
How to Remove Condensate from Mini Split Units
One of the requirements of owning a mini split is a way to drain condensate. As...
Mini Split Accessory Buying Guide
Details matter. If you own or are considering owning a ductless mini split syst...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

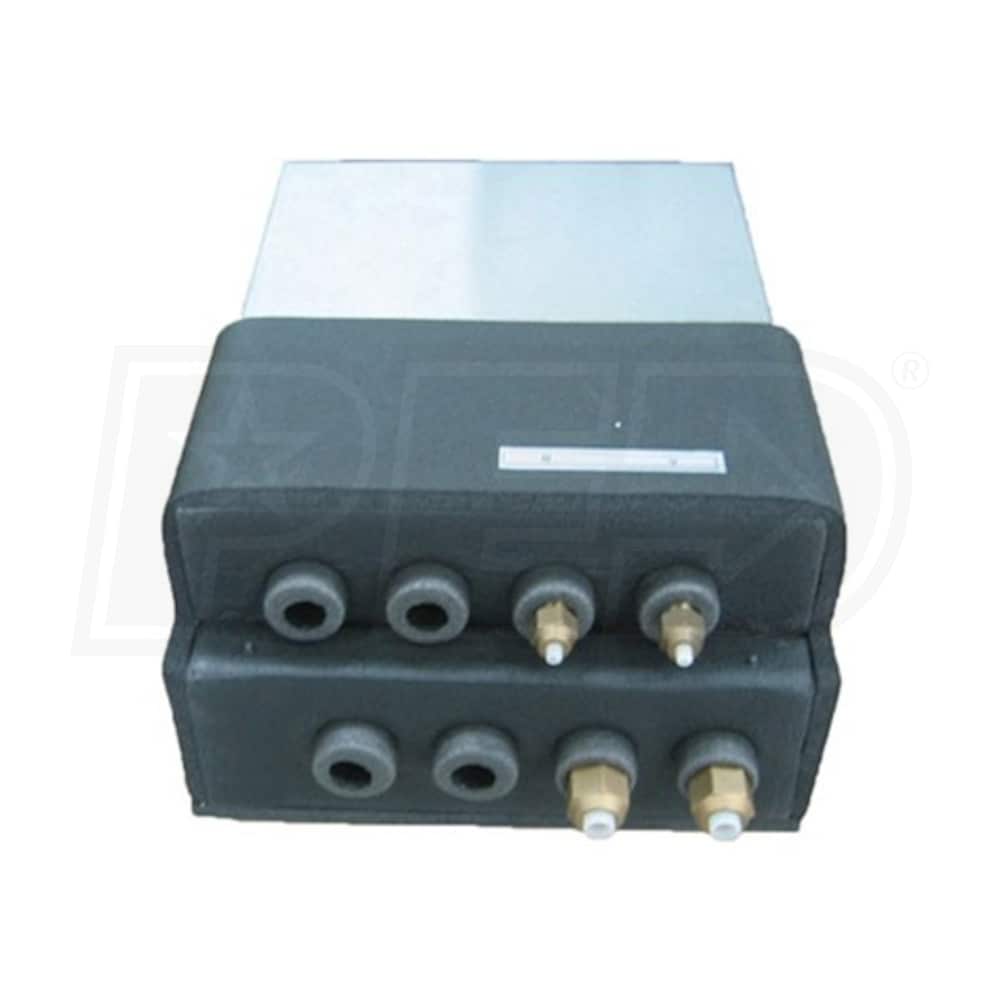

LG Multi F - Branch Box - 2 Ports
