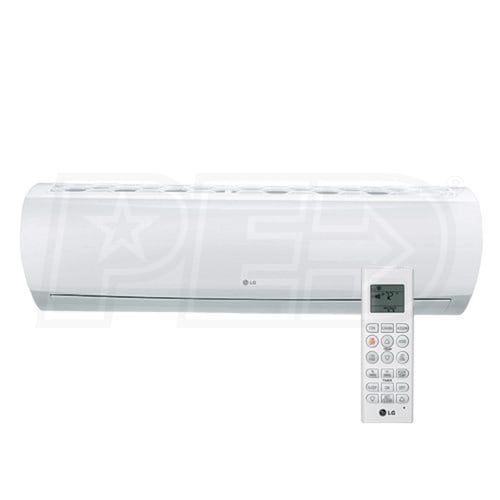

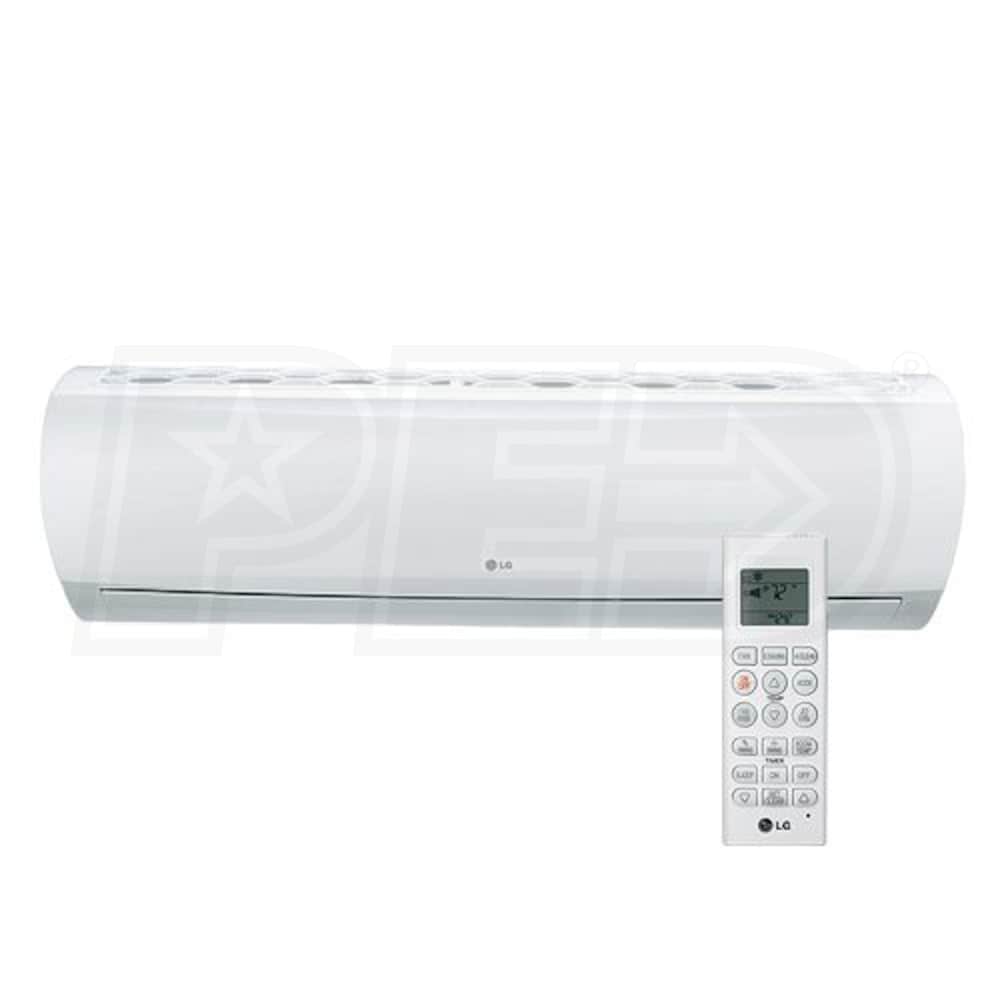

LG - 36k BTU - Wall Mounted Indoor Unit - Single Zone Only

Model:

LSN363HLV3

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
LG - 36k BTU - Wall Mounted Indoor Unit - Single Zone Only
LG - 36k BTU - Wall Mounted Indoor Unit - Single Zone Only
Model: LSN363HLV3
$1,240.00
Was $1,279.00
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. Their Extended Pipe mini split indoor units include advanced technology for cost-effective, energy efficient operation and improved piping capability to allow longer pipe length and higher elevation differences. With a variety of operating modes and helpful functions, this well-rounded mini split indoor unit is an easy choice for any system. This product requires a compatible outdoor condenser for functionality.
  • Built in Wi-Fi
  • The LSN363HLV3 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
  • Air Flow Options
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
  • Quiet Design
  • The LSN363HLV3 can operate at volumes as low as 33 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
  • Self-Cleaning Coil
  • The LSN363HLV3 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Dehumidify
  • LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LSN363HLV3 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

LSN363HLV3
specs product image PID-106118
General Information
Type
Wall Mounted
Product Line
Extended Piping
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
UPC
048231391313
Performance
Cooling BTU
36000
Heating BTU
35200
Maximum Air Flow
1166 CFM
Minimum Air Flow
601 CFM
Minimum Sound Level
33 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
14 5/8 Inches
Product Width
47 1/4 Inches
Product Depth
10 7/16 Inches
Product Weight
40.8 Pounds
Shipping Weight
48.9 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
