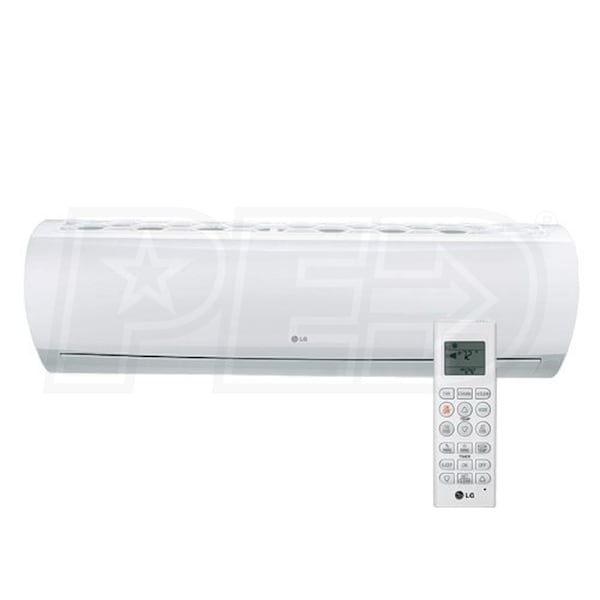

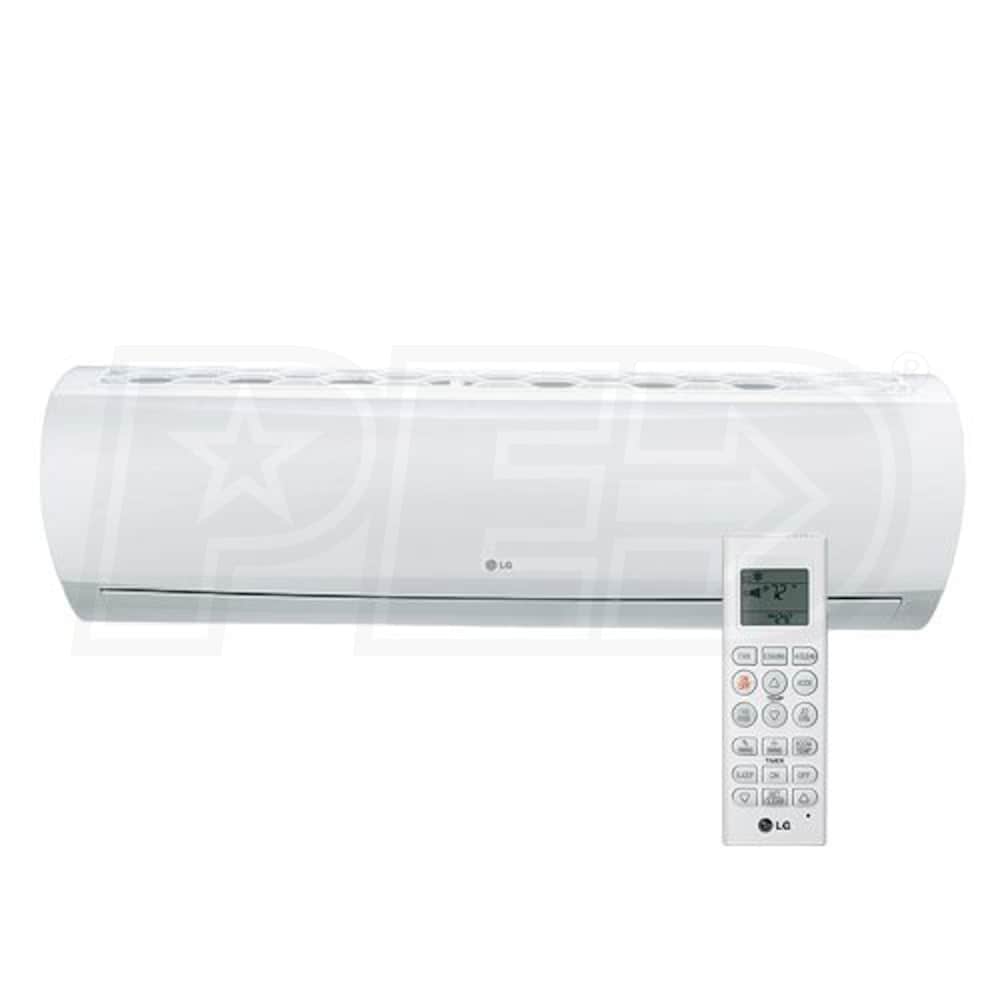

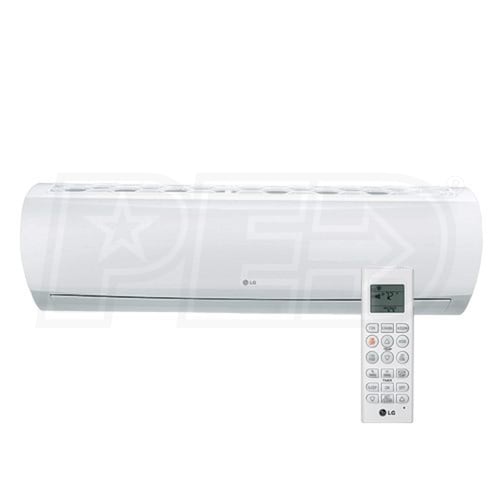

LG - 36k BTU - Wall Mounted Indoor Unit - For Single-Zone Only

Model:

LSN363HLV

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
LG - 36k BTU - Wall Mounted Indoor Unit - For Single-Zone Only
LG - 36k BTU - Wall Mounted Indoor Unit - For Single-Zone Only
Model: LSN363HLV
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.
  • Available
  • Product Note
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

LSN363HLV
specs product image PID-72240
General Information
Type
Wall Mounted
Product Line
Extended Pipe
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
UPC
048231380980
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Maximum Air Flow
953 CFM
Minimum Air Flow
530 CFM
Minimum Sound Level
37 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
13 5/8 Inches
Product Width
46 7/8 Inches
Product Depth
10 7/16 Inches
Product Weight
40 Pounds
Shipping Weight
46 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
