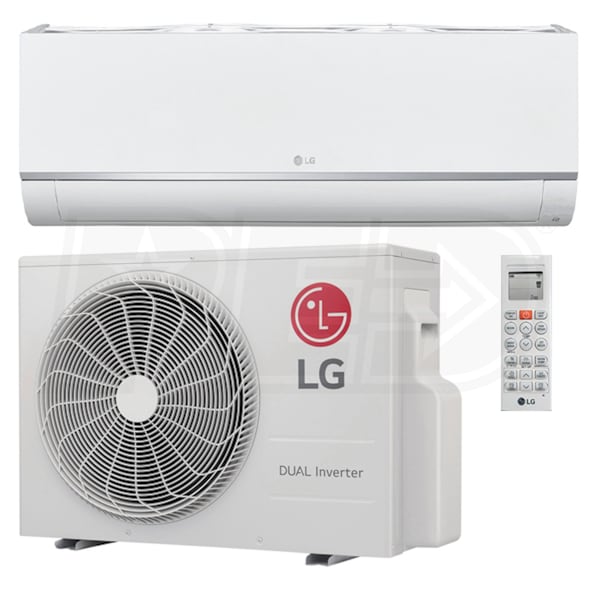

LG - 24k BTU Cooling + Heating - Mega Wall Mounted Air Conditioning System - 19.0 SEER

Model:

LS240HEV2

Write a Review
$1,628.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$272 / Month
Suggested monthly payments with 6 month financing.
LG - 24k BTU Cooling + Heating - Mega Wall Mounted Air Conditioning System - 19.0 SEER
LG - 24k BTU Cooling + Heating - Mega Wall Mounted Air Conditioning System - 19.0 SEER
Model: LS240HEV2
$1,628.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LS240HEV2 is a part of LG's low-profile wall mounted Mega product line. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. The Mega series also makes it easy to achieve comfort without the disruptive noise of central systems, the LSN240HEV2 indoor unit boasts sound levels as low as 29 dB. If you're looking to add well-rounded zoned comfort to your home, the LS240HEV2 is a great choice.
  • Inverter Technology
  • LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LSU240HEV2's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • Cold temperatures can't slow this system down. This outdoor unit supports heating and cooling operations down to 14 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • LG uses advanced components to ensure that their systems are as quiet as possible. Both the outdoor and indoor unit enjoy reduced electrical and mechanical sound thanks to their brushless fan motors.
  • Air Flow Options
  • There are several options for automatic comfort with the LSN240HEV2 indoor unit: auto mode, swing mode, and Chaos Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.
  • Self-Cleaning Coil
  • The LSU240HEV2 indoor unit features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LSN240HEV2 indoor unit features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
  • Product Includes

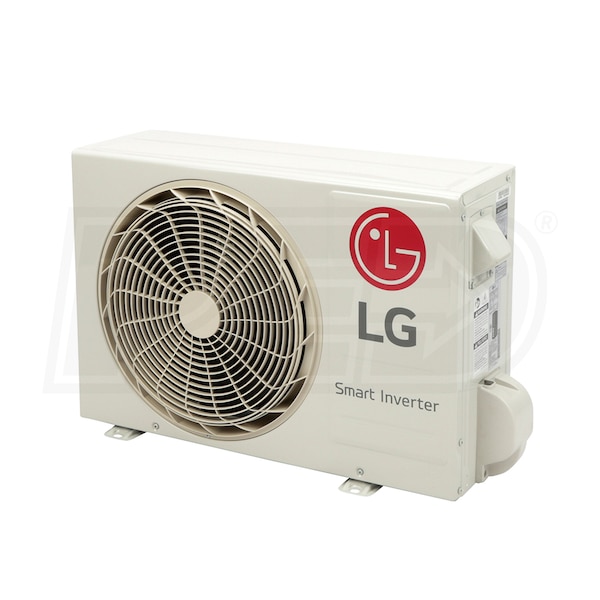

    • (1) LG - 24k BTU - Mega Outdoor Condenser - Single Zone Only (LSU240HEV2)

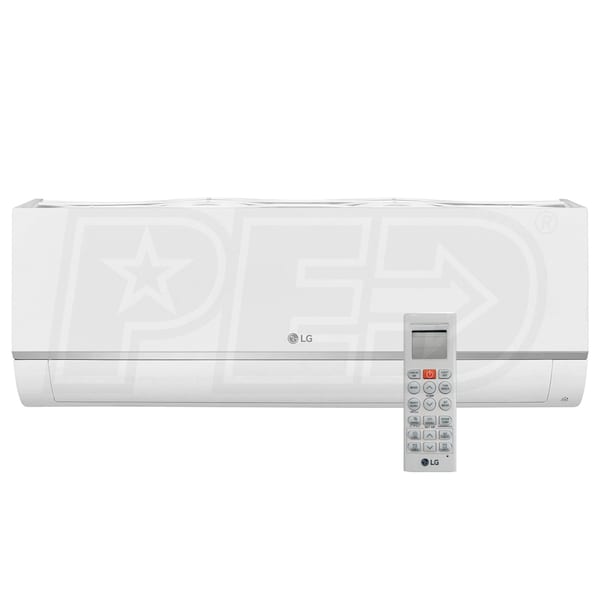

    • (1) LG Mega 24k BTU Wall Mounted Unit - For Single-Zone (LSN240HEV2)
    Product Note
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) LG - 24k BTU - Mega Outdoor Condenser - Single Zone Only (LSU240HEV2)
  • (1) LG Mega 24k BTU Wall Mounted Unit - For Single-Zone (LSN240HEV2)
LS240HEV2
specs product image PID-99295
General Information
Type
Wall Mounted
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
25000 BTU
SEER Learn More
19.0
EER Learn More
11.0
HSPF Learn More
9.5
Cooling Power Input
2 Watts
Heating Power Input
1.93 Watts
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Weight
124 Pounds
Shipping Weight
138 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202544308
LSU240HEV2
General Information
Type
Outdoor Condenser
Product Line
Mega
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
53 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
25 13/16 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
95 Pounds
Shipping Weight
104 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
LSN240HEV2
General Information
Type
Wall Mounted
Product Line
Mega
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
689 CFM
Minimum Air Flow
371 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 13/16 Inches
Product Width
40 9/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
32 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
