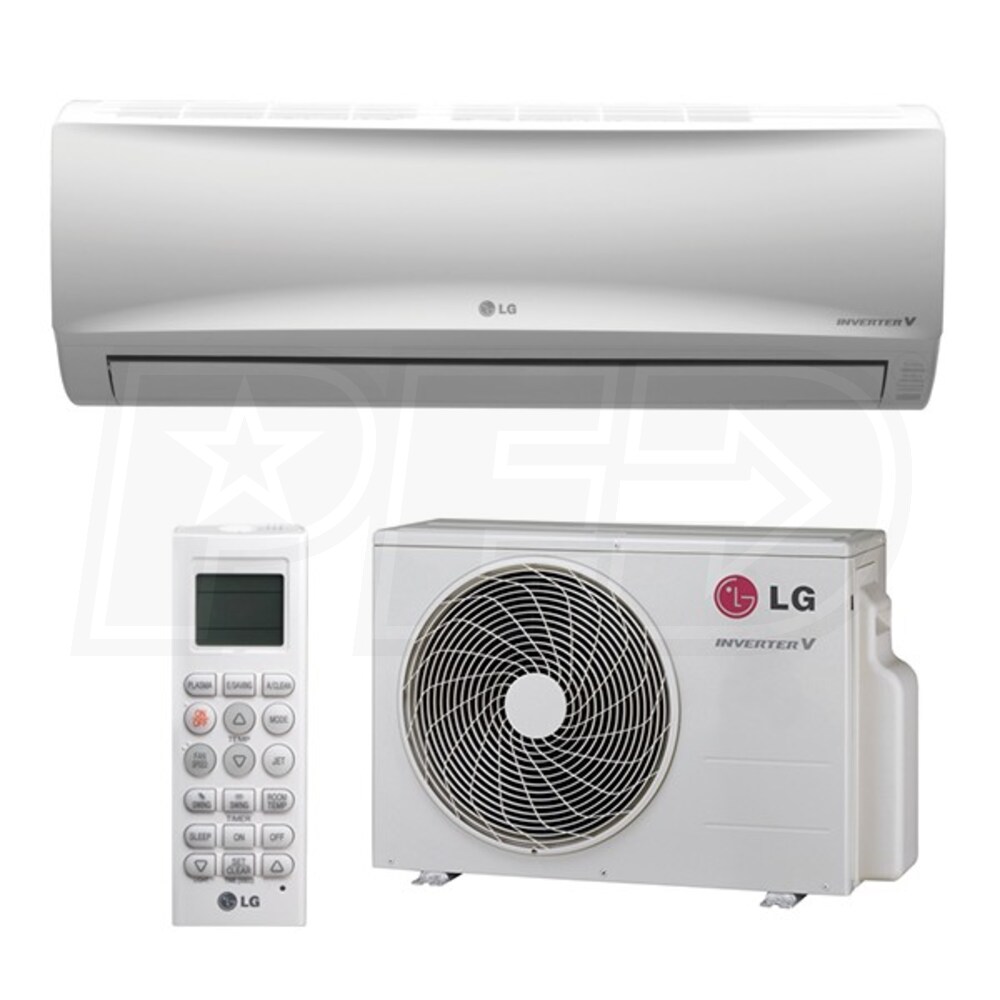

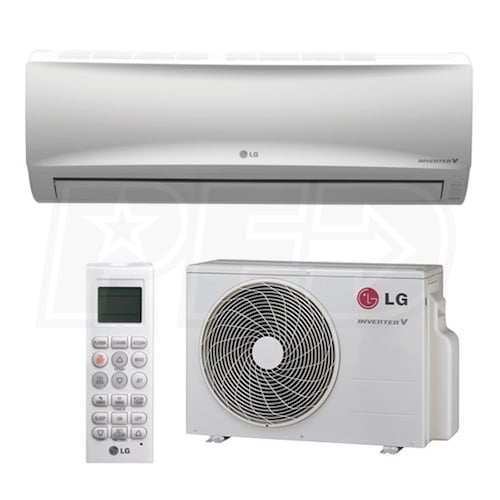

LG - 18k Cooling + Heating - Wall Mounted - Air Conditioning System - 18 SEER

Model:

LS180HEV1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
LG - 18k Cooling + Heating - Wall Mounted - Air Conditioning System - 18 SEER
LG - 18k Cooling + Heating - Wall Mounted - Air Conditioning System - 18 SEER
Model: LS180HEV1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LS180HEV1 is a part of LG's low-profile wall mounted Mega product line. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. The Mega series also makes it easy to achieve comfort without the disruptive noise of central systems, the LSN180HEV1 indoor unit boasts sound levels as low as 29 dB. If you're looking to add well-rounded zoned comfort to your home, the LS180HEV1 is a great choice.
  • Inverter Technology
  • LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LSU180HEV1's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • Cold temperatures can't slow this system down. This outdoor unit supports heating and cooling operations down to 14 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • LG uses advanced components to ensure that their systems are as quiet as possible. Both the outdoor and indoor unit enjoy reduced electrical and mechanical sound thanks to their brushless fan motors.
  • Air Flow Options
  • There are several options for automatic comfort with the LSN180HEV1 indoor unit: auto mode, swing mode, and Chaos Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.
  • Self-Cleaning Coil
  • The LSU180HEV1 indoor unit features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LSN180HEV1 indoor unit features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
  • Product Includes
    • (1) LG - 18k BTU - Mega Outdoor Condenser - Single Zone Only (LSU180HEV1)
    • (1) LG Mega 18k BTU Wall Mounted Unit - For Single-Zone (LSN180HEV1)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) LG - 18k BTU - Mega Outdoor Condenser - Single Zone Only (LSU180HEV1)
  • (1) LG Mega 18k BTU Wall Mounted Unit - For Single-Zone (LSN180HEV1)
LS180HEV1
specs product image PID-56916
General Information
Type
Wall Mounted
Product Line
Mega
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
UPC
048231377089
Performance
Cooling BTU
18000
Cooling Capacity
17000 BTU
Heating Capacity
19000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.9
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.0
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
106 Pounds
Shipping Weight
112 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8046946
LSU180HEV1
General Information
Type
Outdoor Condenser
Product Line
Mega
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 1/2 Inches
Product Width
30 5/16 Inches
Product Depth
11 5/16 Inches
Product Weight
78 Pounds
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LSN180HEV1
General Information
Type
Wall Mounted
Product Line
Mega
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A

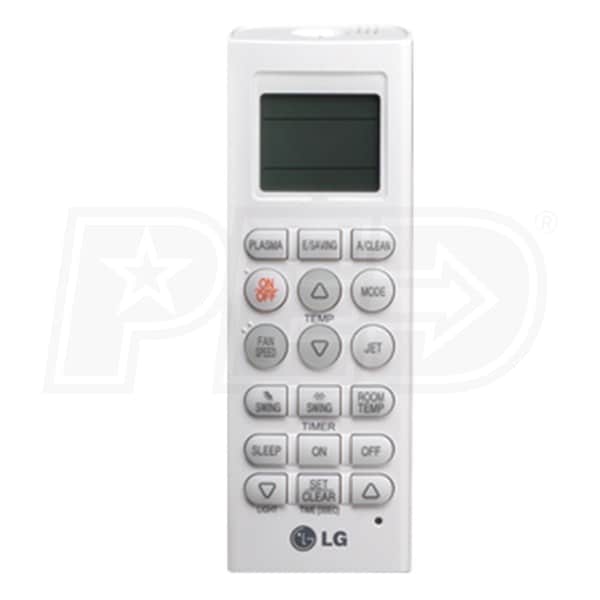

Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
629 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 13/16 Inches
Product Width
40 9/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
30 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
