LG LP126HD3A
LG LP126HD3A
Hover to zoom
1 of 1

LG 11,800 BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump w/ Electric Heat - 3.5 kW - 265V

Model:

LP126HD3A

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
LG 11,800 BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump w/ Electric Heat - 3.5 kW - 265V
LG 11,800 BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump w/ Electric Heat - 3.5 kW - 265V
Model: LP126HD3A
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 3
$93.97
In-Stock
Model: AYLD1A
$345.00

Features

    NOTE: This product is no longer being produced by LG.

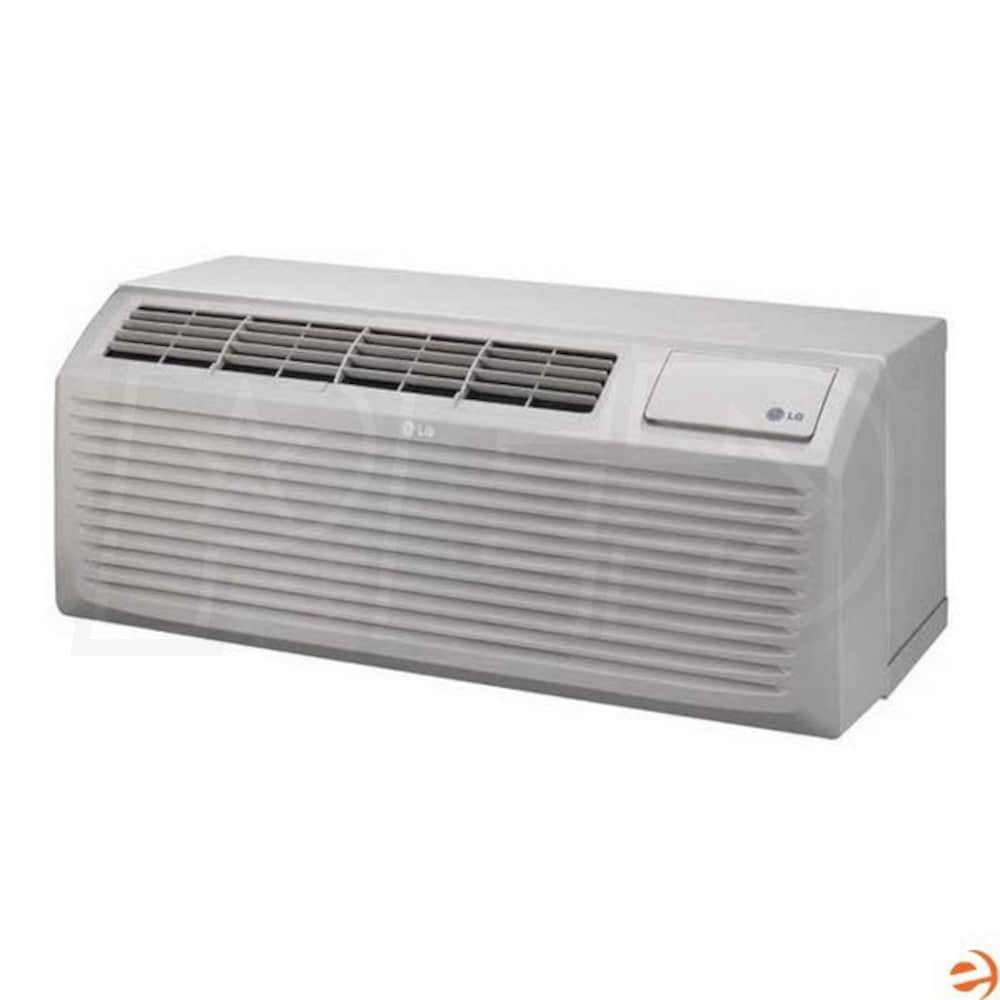

    The LG LP126HD3A Heat Pump w/ Electric Heat Packaged Terminal Air Conditioner (PTAC) is a high-efficiency 11,800 BTU/hr air conditioner and 10,700 BTU/hr heat pump with 3.5 kW of additional electric heat to provide comfort year round. By using separate indoor and outdoor motors, the LP126HD3A is able to achieve the lowest sound rating in the industry and maximize efficiency. This makes it ideal for hotels, hospitals, and other commercial applications. The integrated digital control combines an intuitive user experience with energy saving features in an attractive and easy to read design.

    Product Features

    Digital Display
    The digital display allows easy operation with a variety of functions.

    Energy Saver Mode
    Energy Saver Mode can lower energy consumption and cut energy costs.

    Freeze Room Protection
    Electronic temperature controls monitor and maintain indoor temperatures to prevent any freezing.

    Auto Restart
    Your system will automatically resume operation in its most recent operation mode or return to the programmed schedule following a power failure.

    Gold Fin
    A corrosion-resistant coil extends the service life of your unit.

    Ultra Quiet Operation
    This system operates at a low sound level for your convenience.

    Dip Switch Setting
    The dip switch allows you to set a minimum and maximum operating temperature. It ensures energy efficiency when the PTAC is used in commercial applications.

    Defrost Control
    The defrost control removes frost from the outdoor coil preventing excess ice formation that could damage the unit and halt operation. It prevents indoor fan operation to avoid distributing cold air.

    Product Notes

    A Sub Base Assembly is mandatory on all 265 volt PTAC models. See the Accessories tab for available Sub Base Assembly models.

    Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.

Specifications

LP126HD3A
specs product image PID-45609
General Information
Type
PTAC
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating
Electric Heat
Yes
UPC
048231363297
Performance
Cooling Capacity
11800 BTU
Heating Capacity
10700 BTU
Electric Heat Capacity
3.5 kW
Maximum Air Flow
346 CFM
Minimum Air Flow
316 CFM
Electrical Data
Voltage
265 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
20 Inches
Product Weight
107.4 Pounds
Shipping Weight
119.7 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
1 Year

Reviews

(1)
LG LP126HD3A Reviews & Ratings
Verified Buyer
Verified Buyer
Wretched.
By Matthew O.
Bainbridge Island, Washington
Purchased 09/18/2015 |
Review Posted 10/06/2015
Unit was final sale item but came without a plug in pigtail.No information on the electrical data provided that the item would NOT BE included in the purchase.

Customer service was not interested in a return. Feel like I have had a PTAC dumped on me that was incomplete. Not happy.They suggested reselling it on ebay!!!Unbelievable.
Matthew O. Does Not Recommend This
Was this review helpful?
Expert Response
We're very sorry that you feel mislead, however the PTAC unit you ordered has never come with an included plug-in pigtail. We do not state, nor have we ever stated, on the product page or anywhere else online that this product includes a pigtail. If you have any further questions regarding this order, feel free to give us a call. It is never our intention to mislead anyone.
Ken, the eComfort Product Expert
Ken D.
eComfort Product Expert
Rating Breakdown
Features
1/5
icon-review-marker
Value
1/5
icon-review-marker
