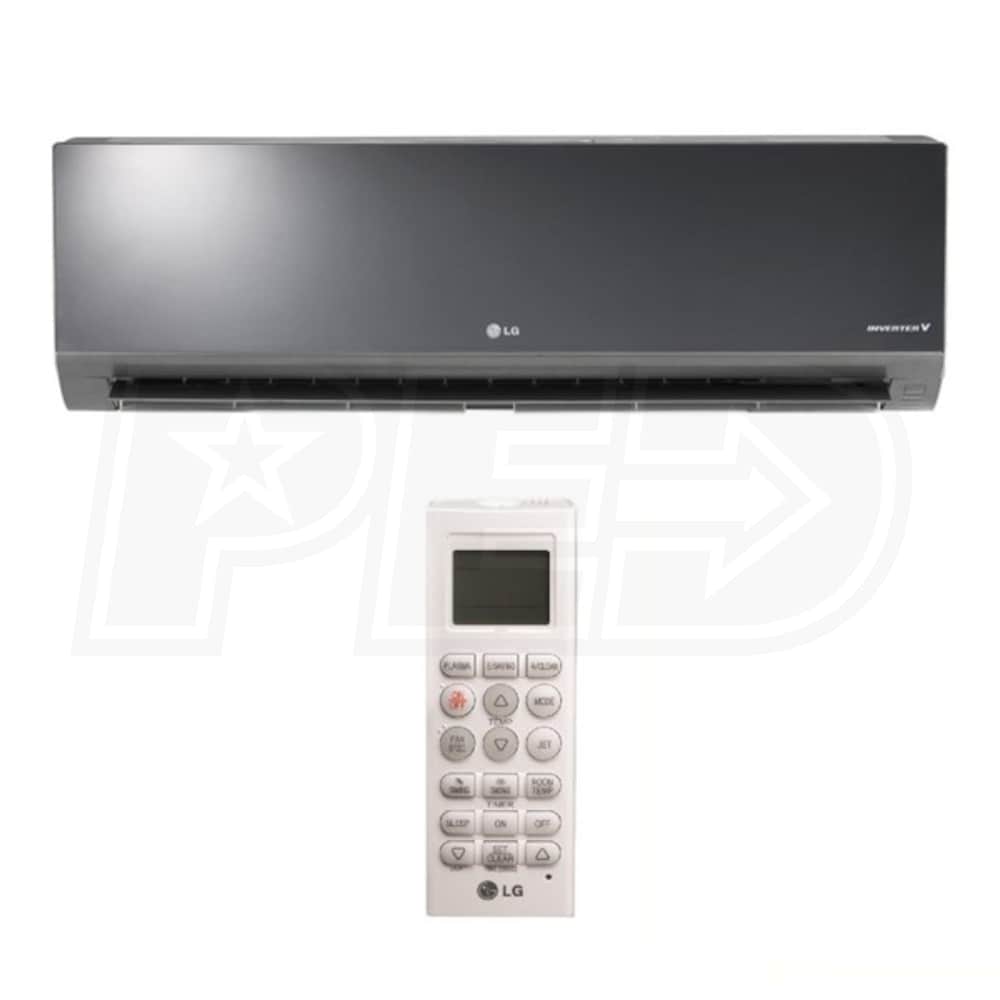

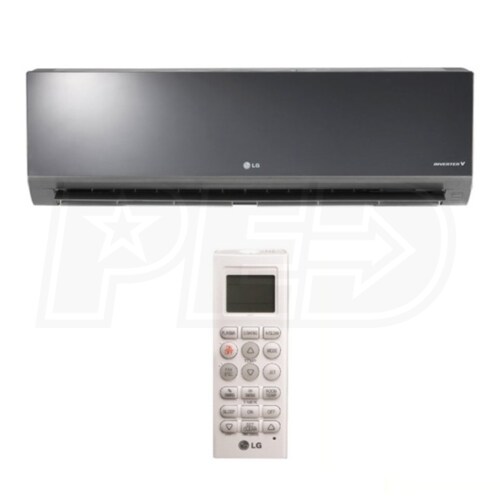

LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone

Model:

LAN180HSV4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone
LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone
Model: LAN180HSV4
Was $740.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Their Art Cool Mirror mini split indoor units are a brilliant blend of sleek aesthetics and clever engineering, making them a great option for any room that needs a heating and cooling solution that won't disrupt the space's design. The LAN180HSV4's mirrored front panel may be the most eye-catching aspect of the unit, but the versatility of its operating modes and reliability of its components cannot be overstated.
  • Air Flow Options
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions. Chaos Wind mode cycles both air flow direction and fan speed to provide a natural circulation pattern.
  • Quiet Design
  • The LAN180HSV4 can operate at volumes as low as 28 dB. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow as well as a brushless motor, which ensures minimal electrical and mechanical noise.
  • Self-Cleaning Coil
  • The LAN180HSV4 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Cool
  • This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LAN180HSV4 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter protects against dust and bacteria, while a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.
  • Hot Start
  • When the hot start function is enabled, the LAN180HSV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Product Compatible With
  • LG LMU24CHV Mini Split Outdoor Condensers
  • LG LMU36CHV Mini Split Outdoor Condensers
  • LG LMU540HV Mini Split Outdoor Condensers
  • LG LSU180HSV4 Mini Split Outdoor Condensers
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

LAN180HSV4
specs product image PID-50842
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
UPC
048231376891
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
572 CFM
Minimum Air Flow
434 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
12 3/4 Inches
Product Width
40 9/16 Inches
Product Depth
9 11/16 Inches
Product Weight
32 Pounds
Shipping Weight
39 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
