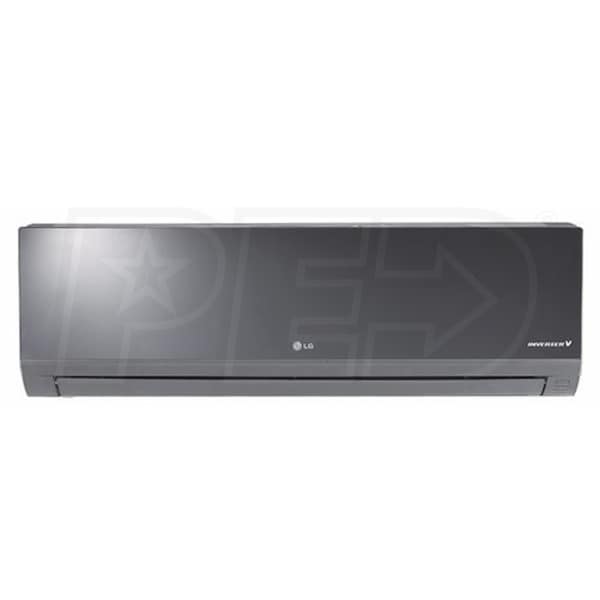

LG Art Cool Mirror 12k BTU Wall Mounted Unit - For Multi or Single-Zone (Scratch & Dent)

Model:

LAN120HSV5-SD

Write A Review

Product Discontinued

Sorry, this product is no longer available.

Continue Shopping With These Categories

Shop All Mini Split Indoor Units

Shop LG Mini Split Wall Mounted Units

LG Art Cool Mirror 12k BTU Wall Mounted Unit - For Multi or Single-Zone (Scratch & Dent)

Model: LAN120HSV5-SD

Was $450.05

Product Discontinued

Accessories

Features

Specifications

Reviews

How-To Articles

Manuals

Expert Recommended Accessories Selected by Bob, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

***Scratch & Dent*** Reboxed. LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Their Art Cool Mirror mini split indoor units are a brilliant blend of sleek aesthetics and clever engineering, making them a great option for any room that needs a heating and cooling solution that won't disrupt the space's design. The LAN120HSV5's mirrored front panel may be the most eye-catching aspect of the unit, but the versatility of its operating modes and reliability of its components cannot be overstated. This product requires a compatible outdoor condenser for functionality.

Built in Wi-Fi
The LAN120HSV5 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
Air Flow Options
This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
Quiet Design
The LAN120HSV5 can operate at volumes as low as 31 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
Self-Cleaning Coil
The LAN120HSV5 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
Jet Cool
This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
Automated Operation
Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
Sleep Mode
With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
Dehumidify
LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
Improved Air Quality
The LAN120HSV5 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
Hot Start
When the hot start function is enabled, the LAN120HSV5's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
Product Compatible With
LG LMU18CHV, LMU24CHV, LMU36CHV, LMU540HV, LSU120HSV5 Mini Split Outdoor Condensers

Product Note

This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

California residents see

Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

LAN120HSV5-SD

General Information

Type

Wall Mounted

Product Line

Multi F

Product Sub-line

Art Cool Mirror

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More

Heating and Cooling

Multi-Zone Compatible

Yes

Refrigerant Type

R-410A

Remote Control

Wireless

Indoor Unit Size(s)

Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.

Installation Location

Indoor

UPC

048231385718

Performance

Cooling BTU

12000

Cooling Capacity

12000 BTU

Maximum Air Flow

282 CFM

Minimum Air Flow

177 CFM

Minimum Sound Level

19 dB

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More

39 dB

Electrical Data

Phase

Frequency

60 Hz

Dimensions

Maximum Line Length

82 Feet

Gas Connection Size

3/8 Inch

Liquid Connection Size

1/4 Inch

Drain Outlet Diameter

5/8 Inch

Product Height

11 1/4 Inches

Product Width

34 13/16 Inches

Product Depth

8 1/16 Inches

Product Weight

24 Pounds

Shipping Weight

29 Pounds

Certifications

ETL Listed

Yes

UL Listed

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

5 Years
