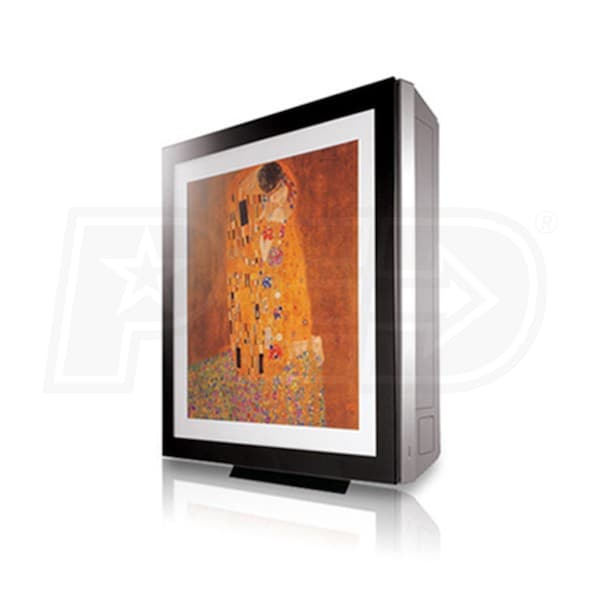

LG - 9k BTU Cooling + Heating - Art Cool Gallery Wall Mounted Air Conditioning System - 16.0 SEER

LG - 9k BTU Cooling + Heating - Art Cool Gallery Wall Mounted Air Conditioning System - 16.0 SEER
Model: LA090HVP
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LA090HVP is a single zone ductless heat pump system from LG's Art Cool Gallery line. An Inverter-driven outdoor condenser is paired with a multifunction LAN090HVP indoor unit. This wall mounted indoor not only heats and cools at sound levels as low as 32 dB, it also serves as a frame for a 20" x 20" piece of art. By using 3D Air Flow to push conditioned air away from the wall, the LA090HVP is capable of effectively heating or cooling nearly any room

Specifications
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones A zone is a room or area within a building that has it's own temperature control.
1
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
09
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
UPC
048231367578
Performance
Cooling Capacity
9000 BTU
Heating Capacity
10800 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5600183
LAU090HVP Specifications
General Information
Type
Outdoor Condenser
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
9000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
49.2 Feet
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
21.5 Inches
Product Width
30.3125 Inches
Product Depth
11.3125 Inches
Product Weight
78 Pounds
Shipping Weight
82 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
LAN090HVP Specifications
General Information
Type
Wall Mounted Unit
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Minimum Air Flow
247 CFM
Maximum Air Flow
370 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
23.625 Inches
Product Width
23.625 Inches
Product Depth
5.75 Inches
Product Weight
31 Pounds
Shipping Weight
34 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Features
Features

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LA090HVP is a single zone ductless heat pump system from LG's Art Cool Gallery line. An Inverter-driven outdoor condenser is paired with a multifunction LAN090HVP indoor unit. This wall mounted indoor not only heats and cools at sound levels as low as 32 dB, it also serves as a frame for a 20" x 20" piece of art. By using 3D Air Flow to push conditioned air away from the wall, the LA090HVP is capable of effectively heating or cooling nearly any room

Specifications
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones A zone is a room or area within a building that has it's own temperature control.
1
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
09
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
UPC
048231367578
Performance
Cooling Capacity
9000 BTU
Heating Capacity
10800 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5600183
LAU090HVP Specifications
General Information
Type
Outdoor Condenser
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
9000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
49.2 Feet
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
21.5 Inches
Product Width
30.3125 Inches
Product Depth
11.3125 Inches
Product Weight
78 Pounds
Shipping Weight
82 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
LAN090HVP Specifications
General Information
Type
Wall Mounted Unit
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Minimum Air Flow
247 CFM
Maximum Air Flow
370 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
23.625 Inches
Product Width
23.625 Inches
Product Depth
5.75 Inches
Product Weight
31 Pounds
Shipping Weight
34 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Product Specs
+
Specifications
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones A zone is a room or area within a building that has it's own temperature control.
1
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
09
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
UPC
048231367578
Performance
Cooling Capacity
9000 BTU
Heating Capacity
10800 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5600183
LAU090HVP Specifications
General Information
Type
Outdoor Condenser
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
9000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
49.2 Feet
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
21.5 Inches
Product Width
30.3125 Inches
Product Depth
11.3125 Inches
Product Weight
78 Pounds
Shipping Weight
82 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
LAN090HVP Specifications
General Information
Type
Wall Mounted Unit
Product Line
Art Cool Gallery
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Minimum Air Flow
247 CFM
Maximum Air Flow
370 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
23.625 Inches
Product Width
23.625 Inches
Product Depth
5.75 Inches
Product Weight
31 Pounds
Shipping Weight
34 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Reviews
(1)
+
LG LA090HVP Reviews & Ratings
Product Q&A
(1)
+
What would the average power consumption wattage per hour be for the 9k model compared to the 12k btu model?
Dan
from California
June 06, 2016
Read Response +
Answer
In air conditioning mode the LA090HVP system has a rated power consumption of .72kW and the LA120HVP system uses .93kW.

In heat mode, the LA090HVP system is rated at .85kW and the LA120HVP system uses 1.25kW.
Hide Response -
