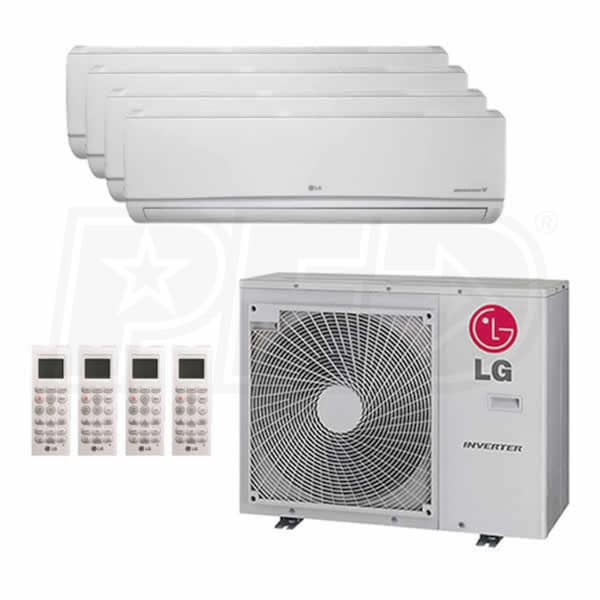

LG Wall Mounted 4-Zone LGRED° Heat System - 30,000 BTU Outdoor - 7k + 7k + 7k + 18k Indoor - 20 SEER
Model: L4L30W07070718
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- LGRED° Heat Technology
- Low or negative ambient temperatures won't slow down the LMU300HHV. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
- Integrated Base Pan Heater
- Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
- Inverter Technology
- LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
- Gold Fin Protection
- To ensure the reliability and longevity of the LMU300HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Quiet Design
- Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
- Air Flow Options
- This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions. With the Chaos Wind feature, the unit cycles both air flow direction and fan speed.
- Self-Cleaning Coil
- These wall mount units feature a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Temperature Control
- Getting your zone comfortable quickly is no problem thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- The LG wall mounted units use a dual filtration system to keep your air clean. A washable filter is backed up by a plasma filtration system that can attract and capture microscopic irritants for pristine air quality.
- Hot Start
- When the hot start function is enabled, the outdoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Built in Wi-Fi
- With built in Wi-Fi, you have the ability to control your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
- Recommended line set sizes for indoor unit connectivity:
- LSN180HSV5: 1/4" x 1/2" Line Set
- LMN078HVT: 1/4" x 3/8" Line Set (Qty 3)
- (1) LG - 30k BTU - LGRED° Heat Outdoor Condenser - For 2-4 Zones (LMU300HHV)
- (1) LG 18k BTU Wall Mounted Unit - For Multi or Single-Zone (LSN180HSV5)
- (3) LG 7k BTU Wall Mounted Unit - For Multi-Zone (LMN079HVT)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG continues to demonstrate global leadership in innovation and technology with their advancements in home comfort solutions. The LGRED° Heat ductless heat pump system boasts superior heating performance in extreme cold weather climates. The powerful LMU300HHV outdoor condenser works with LG indoor units to provide the maximum amount of comfort control for your home. With several air flow options, quiet operation, and weather protection technology, the LGRED° Heat system is accommodating to nearly every home.
Product Includes
Product Note
This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Specifications
General Information
Type
Wall Mounted
Product Line
LGRED Heat
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 7 + 7 + 18
Base Pan Heater Included
Yes
Outdoor Unit Size
30000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
2270 Watts
Heating Power Input
2320 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
252.1 Pounds
Shipping Weight
256.1 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10445376
LMU300HHV Specifications+
LSN180HSV5 Specifications+
LMN079HVT Specifications+
