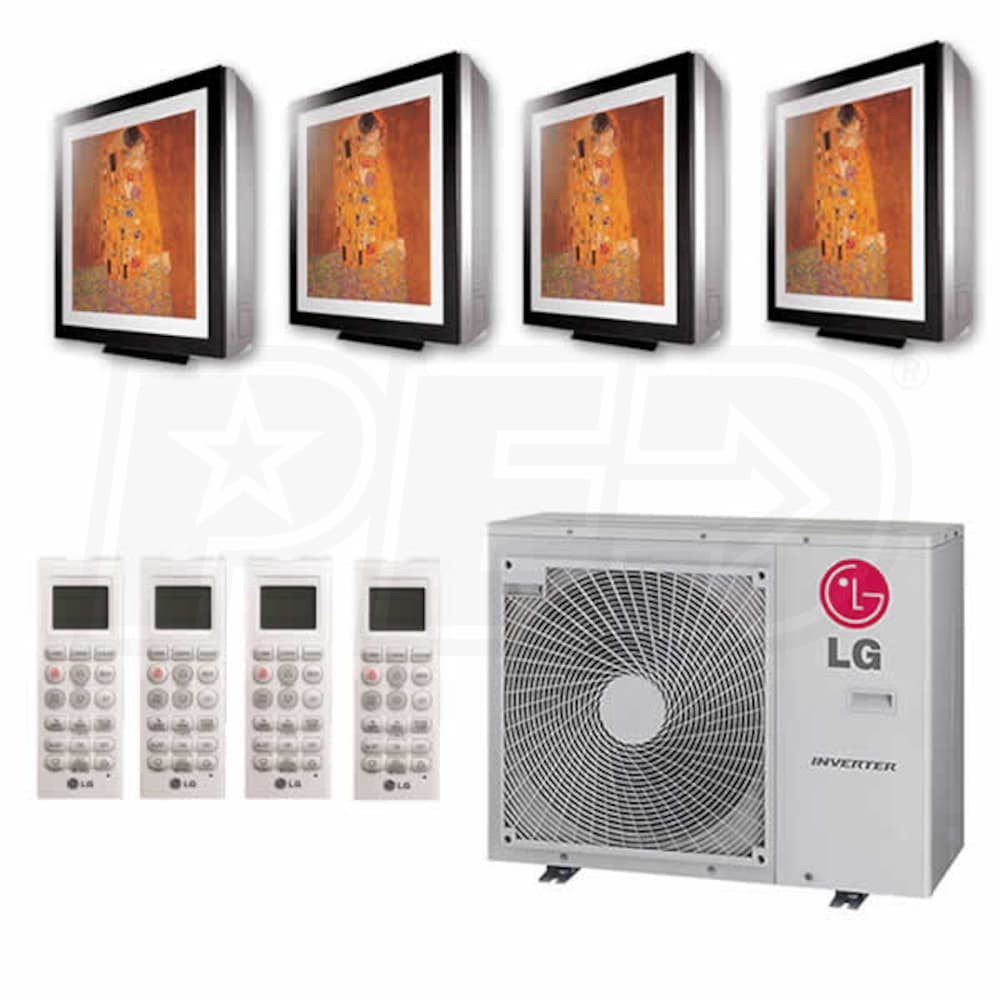

LG Art Cool Gallery Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 22.0 SEER

Model:

L4H36G09090912-B

Write a Review
$4,492.55
Was $4,729.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$57 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
LG Art Cool Gallery Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 22.0 SEER
LG Art Cool Gallery Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 22.0 SEER
Model: L4H36G09090912-B
$4,492.55
Was $4,729.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This wall mounted designer ductless heat pump system pairs a powerful LMU36CHV outdoor condenser with four indoor units from LG's Art Cool Gallery line. These multifunctional indoor units not only heat and cool your rooms, but they also function as frames for 20" x 20" pieces of art. Additionally, Art Cool Gallery units boast a triple air outlet design, devised to provide consistent air flow throughout your entire room. Indoor units are typically the most obtrusive part of a wall mounted ductless heat pump system, but this system allows you to enjoy zoned comfort while hiding them in plain sight.
  • Inverter Technology
  • LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU36CHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. A twin rotary compressor in the outdoor unit also limits vibration noise.
  • Air Flow Options
  • These LG units give you two options for automating air flow. In swing mode, a unit will rotate through all four air flow directions. Chaos Wind mode cycles both air flow direction and fan speed to provide a natural circulation pattern.
  • Self-Cleaning Coil
  • These wall mounted indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Quickly get your zone comfortable with the Jet Heat and Jet Cool modes available with these indoor units. With the press of a button, your system will temporarily adjust the set point and fan speed of a unit to provide rapid zoned heating or cooling.
  • Automated Operation
  • Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units.
  • Improved Air Quality
  • These mini split indoor units include anti-fungal filters to keep your air clean. These filters capture contaminants like dust and bacteria, and they are washable to ensure long term air quality.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the units' internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Hot Start
  • When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Recommended line set sizes for indoor unit connectivity:
  • LMAN097HVP: 1/4" x 3/8" Line Set (Qty 3)
  • LMAN127HVP: 1/4" x 3/8" Line Set
  • Product Includes

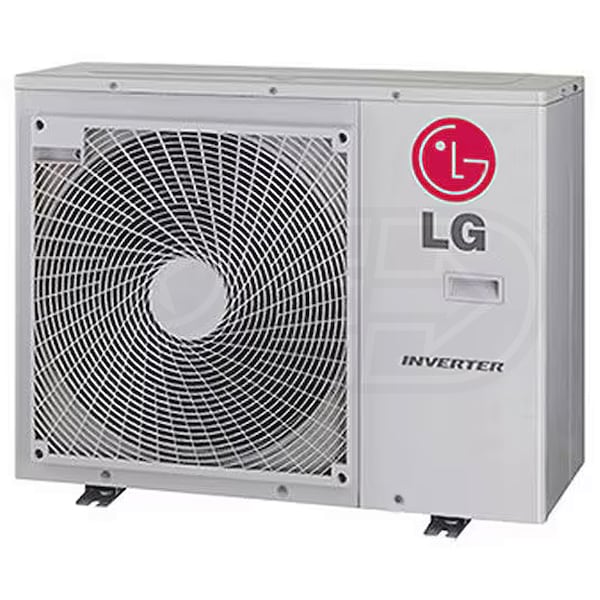

    • (1) LG - 36k BTU - Outdoor Condenser - For 2-4 Zones (LMU36CHV)
    • (1) LG Art Cool Gallery 12k BTU Wall Mounted Unit - For Multi-Zone (LMAN127HVP)
    • (3) LG Art Cool Gallery 9k BTU Wall Mounted Unit - For Multi-Zone (LMAN097HVP)
    Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) LG - 36k BTU - Outdoor Condenser - For 2-4 Zones (LMU36CHV)
  • (1) LG Art Cool Gallery 12k BTU Wall Mounted Unit - For Multi-Zone (LMAN127HVP)
  • (3) LG Art Cool Gallery 9k BTU Wall Mounted Unit - For Multi-Zone (LMAN097HVP)
L4H36G09090912-B
specs product image PID-57604
General Information
Type
Wall Mounted
Product Sub-line
Art Cool Gallery
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9 + 9 + 9 + 12
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling Capacity
34000 BTU
Heating Capacity
41000 BTU
HSPF Learn More
10.0
Cooling Power Input
2.46 Watts
Heating Power Input
2.74 Watts
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
32 41/48 Inches
Product Width
37 19/48 Inches
Product Depth
15 1/2 Inches
Product Weight
137 Pounds
Shipping Weight
148 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7180063
LMU36CHV
General Information
Type
Outdoor Condenser
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
32 41/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
137 Pounds
Shipping Weight
148 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
LMAN127HVP
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
314 CFM
Minimum Air Flow
198 CFM
Minimum Sound Level
34 dB
Maximum Sound Level Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
23 5/8 Inches
Product Width
23 5/8 Inches
Product Depth
5 19/24 Inches
Product Weight
32 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
LMAN097HVP
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
272 CFM
Minimum Air Flow
155 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
23 5/8 Inches
Product Width
23 5/8 Inches
Product Depth
5 19/24 Inches
Product Weight
32 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
