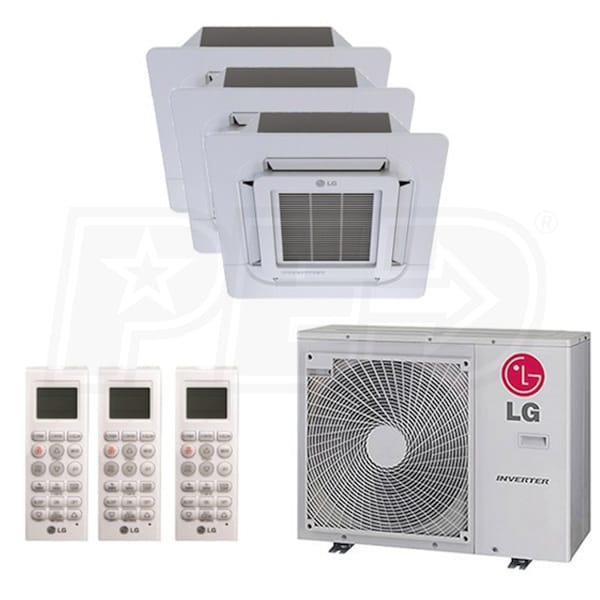

LG Ceiling Cassette 3-Zone System - 30,000 BTU Outdoor - 7k + 7k + 18k Indoor - 21.0 SEER

Model:

L3H30C07071800-A

Write a Review
$3,899.75
Was $4,105.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$69 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
LG Ceiling Cassette 3-Zone System - 30,000 BTU Outdoor - 7k + 7k + 18k Indoor - 21.0 SEER
LG Ceiling Cassette 3-Zone System - 30,000 BTU Outdoor - 7k + 7k + 18k Indoor - 21.0 SEER
Model: L3H30C07071800-A
$3,899.75
Was $4,105.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This ceiling cassette ductless heat pump system pairs a powerful LMU30CHV outdoor condenser with three ceiling cassette indoor units. LG's Multi F ceiling cassette indoor units feature four air outlets which allow them to provide consistent air flow to the furthest reaches of large rooms. In addition to providing excellent coverage, the ceiling cassette indoor units also feature an exceptionally low profile. When installed, a grille less than 1" thick is the only visible clue that your room is receiving efficient heating and cooling LG's devotion to providing efficient ductless solutions can be seen across the Multi F line.
  • Inverter Technology

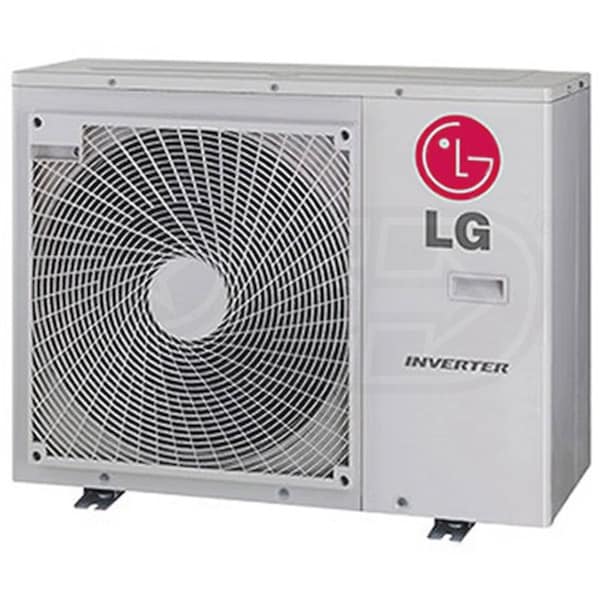

  • LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU30CHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. A twin rotary compressor in the outdoor unit also limits vibration noise.
  • Air Flow Options

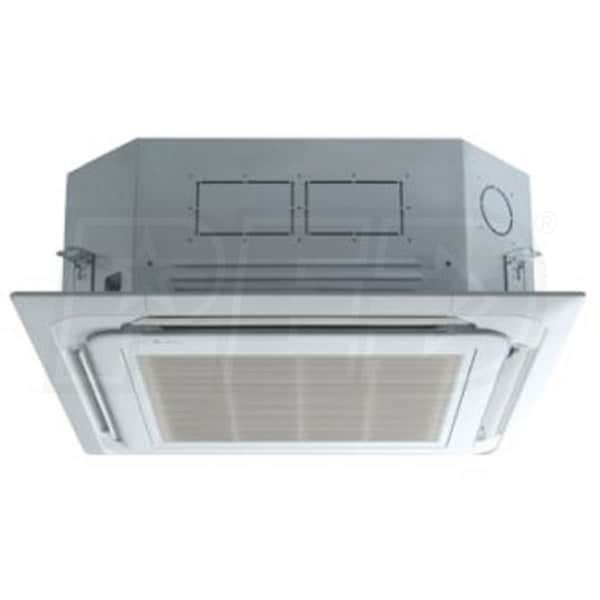

  • There are three automated air flow options with LG's ceiling cassette indoor units: swing mode, Chaos Wind, and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.
  • Jet Cool
  • These LG mini split indoor units feature a Jet Cool operation mode for rapid cooling. In this mode, an indoor unit observes a set point of 64 degrees Fahrenheit while the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Supply Air Branch Duct Connections
  • LG cassette units feature designated cutouts for a branch duct, giving you the ability to duct up to 1/2 of the unit's airflow capacity to adjacent spaces.
  • Recommended line set sizes for indoor unit connectivity:
  • LMCN078HV: 1/4" x 3/8" Line Set (Qty 2)
  • LCN188HV4: 1/4" x 1/2" Line Set
  • Product Includes
    • (1) LG - 30k BTU - Outdoor Condenser - For 2-4 Zones (LMU30CHV)
    • (1) LG - 18k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately (LCN188HV4-NG)
    • (2) LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately (LMCN078HV-NG)
    • (3) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QCHW0)
    Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.

    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system



    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) LG - 30k BTU - Outdoor Condenser - For 2-4 Zones (LMU30CHV)
  • (1) LG - 18k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately (LCN188HV4-NG)
  • (2) LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately (LMCN078HV-NG)
  • (3) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QCHW0)
L3H30C07071800-A
specs product image PID-58096
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
7 + 7 + 18
Outdoor Unit Size
30000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
21.0
EER Learn More
12.4
HSPF Learn More
9.9
Cooling Power Input
2418 Watts
Heating Power Input
2453 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
242 Pounds
Shipping Weight
246 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8111325
LMU30CHV
General Information
Type
Outdoor Condenser
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
30000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
32 41/48 Inches
Product Width
37 5/12 Inches
Product Depth
15 1/2 Inches
Product Weight
137 Pounds
Shipping Weight
148 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
LCN188HV4-NG
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
18
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
459 CFM
Minimum Air Flow
388 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More
41 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/48 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
32 Pounds
Shipping Weight
42 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
LMCN078HV-NG
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

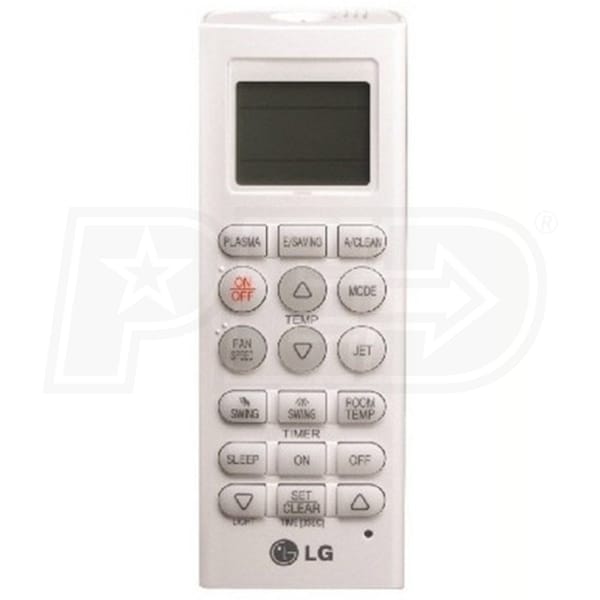

Remote Control
Wireless
Indoor Unit Size(s) Learn More
7
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
265 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
24 dB
Maximum Sound Level Learn More
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
26 Pounds
Shipping Weight
31 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
PT-QCHW0
General Information
Type
Grille
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Installation Location
Indoor
Dimensions
Product Height
2 7/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
7 Pounds
