LG Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 7k Indoor - 21.7 SEER

LG Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 7k Indoor - 21.7 SEER
Model: L3H24W07070700-A
$2,604.00
In-Stock
Ships Monday, Jan 22nd
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Outdoor Unit BTU/h
Indoor Units Sizes
High Heating Capacity
Add-Ons

In-Stock
Ships Monday, Jan 22nd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This wall mounted ductless heat pump system pairs a powerful LMU24CHV outdoor condenser with three wall mounted indoor units from LG's Standard line. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.

    Product Features

    Inverter Technology
    LG's multi-zone outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures without overshooting or short-cycling.

    Gold Fin Protection
    To ensure the reliability and longevity of the LMU24CHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.

    Low Ambient Operations
    Cold temperatures can't slow the Multi F line of outdoor condensers down. This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.

    Quiet Design
    Thanks to a brushless direct current fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home. A twin rotary compressor in the outdoor unit also limits vibration noise and the indoor units feature a cross flow fan design that further reduces sound levels by restricting the surface pressure of airflow.

    Air Flow Options
    LG's wall mounted multi-zone indoor units give you two options for automating air flow. In swing mode, a unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room. With the Chaos Wind feature, which cycles both air flow direction and fan speed, you can enjoy a natural circulation pattern in the comfort of your home.

    Self-Cleaning Coil
    These wall mounted indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.

    Jet Temperature Control
    Getting your zone comfortable quickly is no problem thanks to the Jet Heat and Jet Cool modes available with these indoor units. With the press of a button, your system will temporarily adjust the set point and fan speed of a unit to provide rapid zoned heating or cooling.

    Automated Operation
    Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.

    Sleep Mode
    With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units. A second timer can bet set to activate the unit in the morning to ensure that your home is the perfect temperature when you wake up.

    Improved Air Quality
    These mini split indoor units use a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria. This filter is backed up by a plasma filtration system that can attract and capture microscopic irritants for pristine air quality.

    Dehumidify
    LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the units' internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.

    Hot Start
    When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.

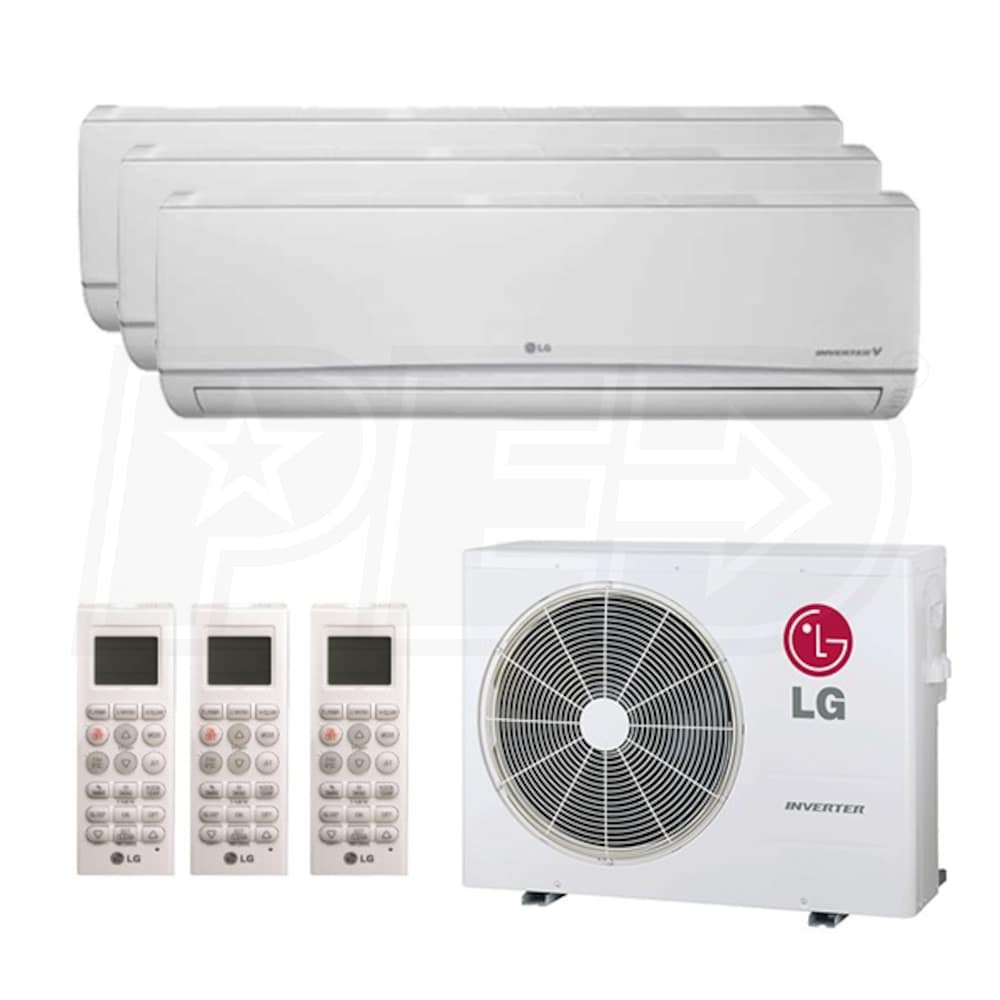

    Product Includes
    • (1) LG LMU24CHV Mini Split Outdoor Condenser

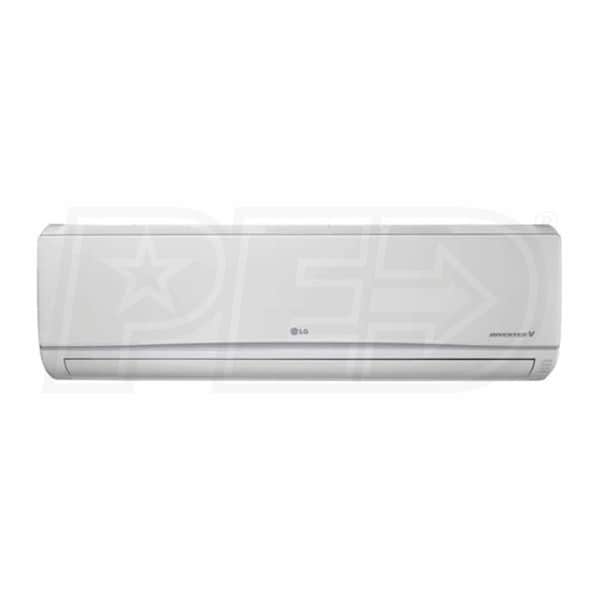

    • (3) LG LMN078HVT Wall Mounted Heat Pump Mini Split Indoor Units

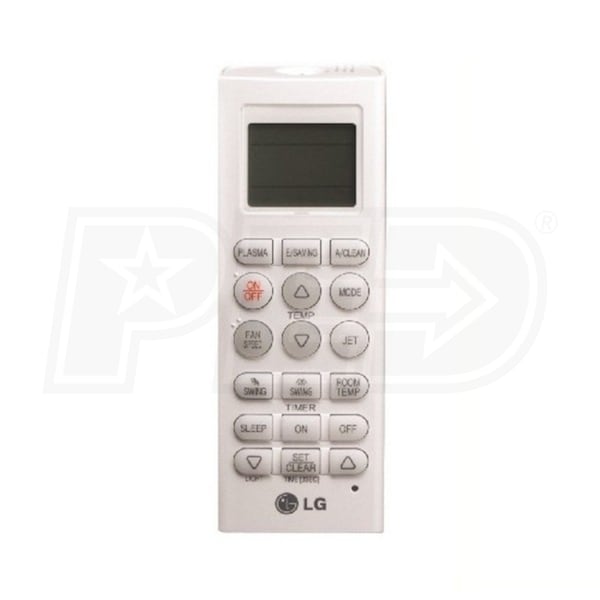

    • (3) LG Wireless Remote Controllers
    Product Note

    Each indoor unit will include any port adapters necessary for multi-zone installation.

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Standard
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones A zone is a room or area within a building that has it's own temperature control.
3
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
06 + 06 + 06
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
20000 BTU
Heating Capacity
23100 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
21.7
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
1481 Watts
Heating Power Input
1780 Watts
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
169 Pounds
Shipping Weight
186 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7180062
LMU24CHV Specifications
General Information
Type
Outdoor Condenser
Product Line
Multi F
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Performance
Nominal Capacity
24000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Product Height
25.78125 Inches
Product Width
34.25 Inches
Product Depth
12.59375 Inches
Product Weight
100 Pounds
Shipping Weight
108 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
LMN078HVT Specifications
General Information
Type
Wall Mounted Unit
Product Line
Multi F
Product Sub-line
Standard
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
7000 BTU
Minimum Air Flow
162 CFM
Maximum Air Flow
198 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Minimum Sound Level
26 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Drain Outlet Diameter
0.625 Inches
Product Height
11.375 Inches
Product Width
35.25 Inches
Product Depth
8.28125 Inches
Product Weight
23 Pounds
Shipping Weight
26 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
