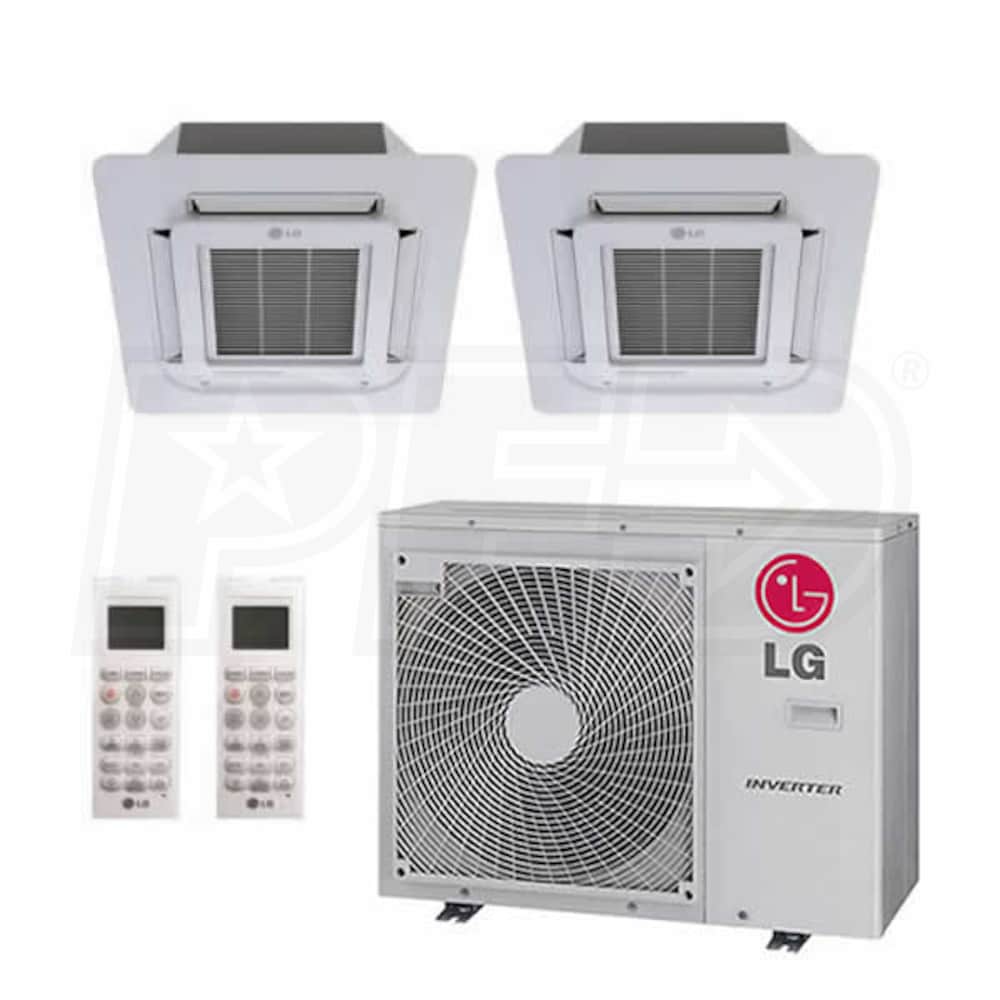

LG Ceiling Cassette 2-Zone LGRED° Heat System - 24,000 BTU Outdoor - 12k + 12k Indoor - 21 SEER

Model:

L2L24C12120000

Write a Review
$3,946.30
Was $4,154.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601
synchrony card logo
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
LG Ceiling Cassette 2-Zone LGRED° Heat System - 24,000 BTU Outdoor - 12k + 12k Indoor - 21 SEER
LG Ceiling Cassette 2-Zone LGRED° Heat System - 24,000 BTU Outdoor - 12k + 12k Indoor - 21 SEER
Model: L2L24C12120000
$3,946.30
Was $4,154.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    LG continues to demonstrate global leadership in innovation and technology with their advancements in home comfort solutions. The LGRED° Heat ductless heat pump system boasts superior heating performance in extreme cold weather climates. The powerful LMU240HHV outdoor condenser works with LG indoor units to provide the maximum amount of comfort control for your home. With several air flow options, quiet operation, and weather protection technology, the LGRED° Heat system is accommodating to nearly every home.
  • LGRED° Heat Technology
  • Low or negative ambient temperatures won't slow down the LMU240HHV. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Inverter Technology
  • LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU240HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to a brushless direct current motor and a twin rotary compressor, the LMU240HHV is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
  • Air Flow Options
  • The LG ceiling cassettes feature three air flow options. Swing mode fluctuates air flow direction. Chaos wind cycles direct and fan speed to provide more natural circulation. Finally Swirl mode produces steady comfort though out the zone.
  • Self-Cleaning Coil
  • These wall mount units feature a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Cool
  • These LG mini split indoor units feature a Jet Cool operation mode for rapid cooling. In this mode, an indoor unit observes a set point of 64 degrees Fahrenheit while the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Condensate Protection
  • Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the ceiling cassette through reliable, effective condensate removal.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LG ceiling cassette units use a dual filtration system to keep your air clean. A washable filter is backed up by a plasma filtration system that can attract and capture microscopic irritants for pristine air quality.
  • Hot Start
  • When the hot start function is enabled, the ceiling cassette's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Supply Air Branch Duct Connections
  • LG cassette units feature designated cutouts for a branch duct, giving you the ability to duct up to 1/2 of the unit's airflow capacity to adjacent spaces.
  • Recommended line set sizes for indoor unit connectivity:
  • LCN127HV4-NOGRILLE: 1/4" x 3/8" Line Set (Qty 2)
  • Product Includes
    • (1) LG - 24k BTU - LGRED° Heat Outdoor Condenser - For 2-3 Zones (LMU240HHV)
    • (2) LG - 12k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately (LCN128HV4-NG)
    • (2) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QCHW0)
    Product Note
    This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) LG - 24k BTU - LGRED° Heat Outdoor Condenser - For 2-3 Zones (LMU240HHV)
  • (2) LG - 12k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately (LCN128HV4-NG)
  • (2) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QCHW0)
L2L24C12120000
specs product image PID-79301
General Information
Type
Ceiling Cassette
Product Line
LGRED Heat
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12 + 12
Base Pan Heater Included
Yes
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
21.0
EER Learn More
13.5
HSPF Learn More
10.7
Cooling Power Input
1780 Watts
Heating Power Input
2120 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
228.1 Pounds
Shipping Weight
232.1 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10445374
LMU240HHV
General Information
Type
Outdoor Condenser
Product Line
LGRED Heat
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
No
Base Pan Heater Included
Yes
Color
Warm Gray
Performance
Cooling BTU
24000
Cooling Power Input
1780 Watts
Heating Power Input
2120 Watts
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Product Height
32 41/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
152.1 Pounds
Shipping Weight
166 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
LCN128HV4-NG
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
247 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
40 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
PT-QCHW0
General Information
Type
Grille
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Installation Location
Indoor
Dimensions
Product Height
2 7/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
7 Pounds
