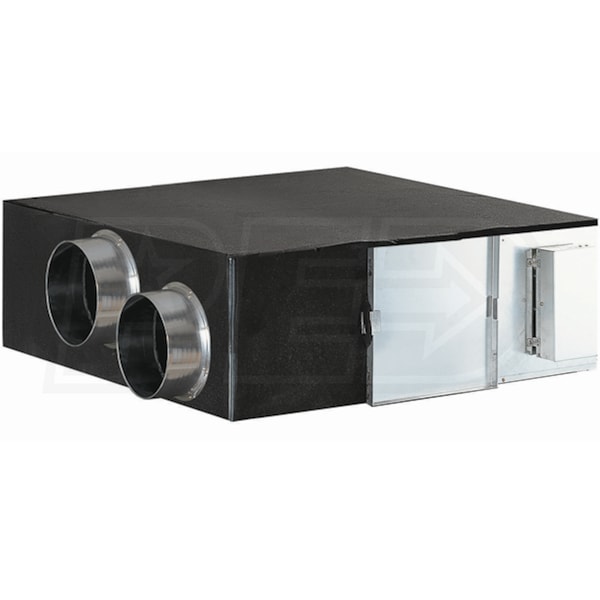

LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10" Duct

Model:

ARVU053ZEA2

Write A Review
$3,140.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks
synchrony card logo
$55 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10
LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10" Duct
Model: ARVU053ZEA2
$3,140.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The LG Energy Recovery Ventilator (ERV) is a 470 CFM ducted fan, designed to make your heating and cooling systems more efficient by recovering heat from exhaust air. Perfect for hotels, restaurants, schools, and office buildings, the LG ERV improves indoor air quality by bringing fresh outside air indoors. The LG ERV features an electronic control board, three speed brushless motor and washable filters.
  • Energy Saving
  • Indoor air passes through the heat exchanger to pre-warm or pre-cool the incoming outside air, saving you money and energy by reducing the load your HVAC system needs to handle.
  • Multiple Modes
  • The LG ERV can be operated independently in heat exchange mode or bypass mode. Heat exchange mode brings indoor and outdoor air across the heat exchanger, while bypass mode draws in untempered outdoor air.
  • Simple Maintenance
  • With washable filters that are easy to access, cleaning the heat exchanger is a breeze.

Specifications

ARVU053ZEA2
specs product image PID-81438
Overview
Product Category
Energy Recovery Ventilators (ERVs)
General Information
Type
ERV
Product Line
ARV
Product Category
Energy Recovery Ventilators (ERVs)
Ports Quantity
4
Port Location
Side
Performance
Maximum Air Flow
471 CFM
Apparent Sensible Effectiveness
62 %
Minimum Air Flow
388 CFM
Total Recovery Efficiency
37 %
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
10 Inches
Product Height
14 3/8 Inches
Product Width
44 7/8 Inches
Product Depth
41 13/16 Inches
Product Weight
148 Pounds
Shipping Weight
177 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5593064
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
