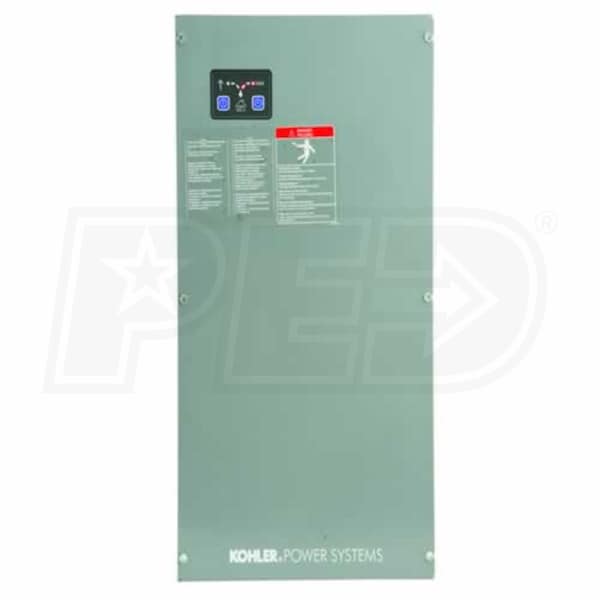

Kohler RDT Series 400-Amp Outdoor Automatic Transfer Switch

Kohler RDT Series 400-Amp Outdoor Automatic Transfer Switch
Our Price
Compare Prices
Shipping Info
Model: RDT-CFNC-0400A
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$1,878.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
115 Pounds
Consumer Warranty
5 Years
Product Length
48.1 Inches
Product Width
22 Inches
Product Height
16.4 Inches
UPC
650531172037
Features
Features
  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
115 Pounds
Consumer Warranty
5 Years
Product Length
48.1 Inches
Product Width
22 Inches
Product Height
16.4 Inches
UPC
650531172037
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
115 Pounds
Consumer Warranty
5 Years
Product Length
48.1 Inches
Product Width
22 Inches
Product Height
16.4 Inches
UPC
650531172037
Reviews
(1)
+
Kohler RDT-CFNC-0400A Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Will this work with my MQ70 generator?
Donovan
from Oklahoma
October 02, 2013
Answer
Thank you for your inquiry!

The Kohler, RDT-CFNC-0400A is fitted with the MPAC 500 controller. This will allow the transfer switch to control the motor and transfer functions. It is designed for use with generators that have 2-wire start capabilities. We recommend that you double check with the manufacturer of the MQ70 to ensure that it will support 2-wire operation.
+
Hi Jim. Is this transfer switch a 400amp service entrance rated?
Giovanni
from New York
June 19, 2012
Answer
This is not a service entrance rated transfer switch.

Here is their 400A Service Entrance rated switch....

Kohler RDT-CFNC-0400ASE
