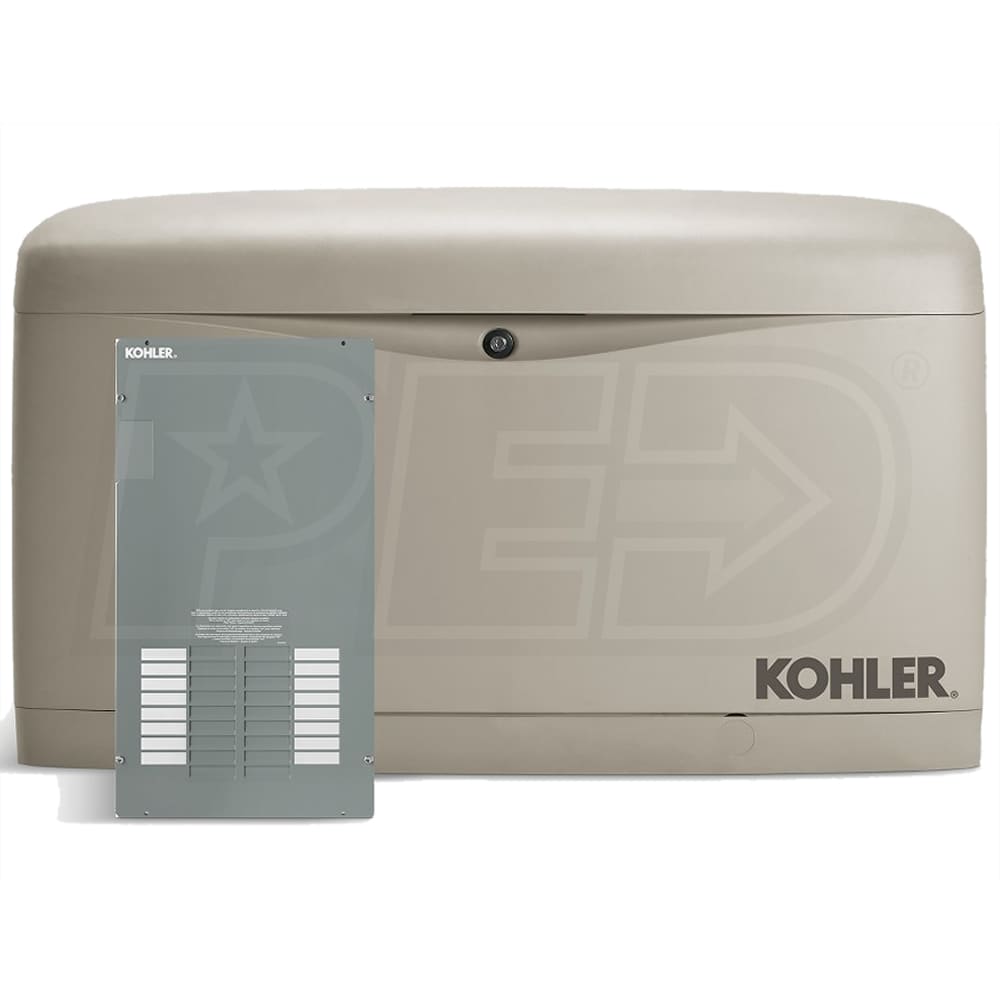

Kohler 20KW Composite Standby Generator System (100A Indoor 16-Circuit Switch)
Model:
20RESCL-100LC16
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
4
Model: GM92406-KP3-QS
$231.00
Model: GM90095-KP1-QS
$64.00
Model: GM79141-KP3-QS
$309.00
Only 1 In-Stock
$86.00
Factory-Direct
Features
- Kohler 20RESCL Air-Cooled Standby Generator System
- Fully Automatic Operation - Includes Automatic Transfer Switch
- Premium 5-Year / 2000 Hour Limited Warranty
- Backed by Kohler's extraordinary reliability & performance

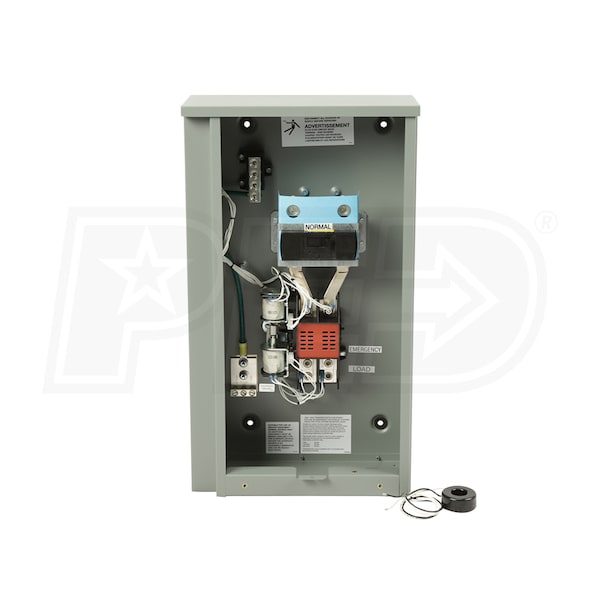

- RXT 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center
- NEMA 1R Cabinet designed for indoor installation
- Up to 8 tandem breakers can be used for a total of 24 circuits
- Fast Response Time & PowerBoost™ Technology
- Greater motor-starting ability for large electrical loads
- Kohler generators restore power in as little as 10 seconds
- Cleaner Power for Sensitive Electronics
- Protects sophisticated electronics with low distortion (THD)
- DC2 Controller
- Provides advanced control, system monitoring & diagnostics
- 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
- 2-Line Backlit LCD Digital Display & Real-Time Clock To Set Weekly Exercise
- No More Codes - Easy to read local data access in all lighting conditions
- Compatible w/ OnCue Plus & OnCue Plus Wireless Generator Management Systems
- Real-time power status and the ability to manage your entire backup system
- Kohler Command PRO® OHV Engine
- Runs on clean-burning Natural Gas or LPG
- New Silencer Reduces Sound Levels & Provides Quiet Operation
- Maintains neighborhood solitude - 69 dB(A) @ 23 ft.
- Exclusive 100% Corrosion-Proof Composite Enclosure & Polymer Base
- Will not rust - even in harsh seaside environments
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
20RESCL-100LC16

Overview
Weight
500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
UPC
650531162250
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 Run (64 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
