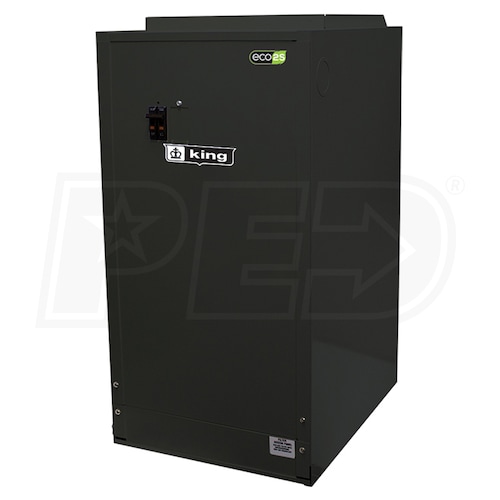

King Electric - 51,195 BTU - Two-Stage Electric Furnace - Multi-Position - Single Phase - 15 kW - 208V

Model:

KFS2015-1-2S1-ECM

Write A Review
$3,248.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
King Electric - 51,195 BTU - Two-Stage Electric Furnace - Multi-Position - Single Phase - 15 kW - 208V
King Electric - 51,195 BTU - Two-Stage Electric Furnace - Multi-Position - Single Phase - 15 kW - 208V
Model: KFS2015-1-2S1-ECM
$3,248.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The King Electric KFS electric furnace comes with an energy efficient motor and 2 heating stages for maximum comfort and energy savings. With Quiet operation and multi-position mounting the KFS electric furnace can be used for residential or commercial heating, providing years of excellent maintenance-free service.
  • King Electric KFS Series Features
  • Standard 24 Volt Control
  • Welded Cabinet Design
  • Breaker Disconnects
  • Dual Inlet Industrial Blower
  • Fan Only Relay
  • Baked Enamel Finish
  • Sequenced Heating Elements
  • Quiet Sound Insulated Cabinet
  • Heavy Duty Open Coil Element

Specifications

KFS2015-1-2S1-ECM
specs product image PID-115235
Overview
Product Category
Furnace
UPC
093319327975
General Information
Type
Electric Furnace
Product Line
KFS ECO2S
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Speed
Energy Efficient ECM Motor
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Color
Gray
Performance
Heating BTU
51195
Heating Capacity
51195 BTU
Electric Heat Capacity
15 kW
Heating Power Input
15000 Watts
Electrical Data
Voltage
208 Volts
Phase
1
Minimum Circuit Ampacity
72 Amps
Recommended Breaker Size
40 and 60 Amps
Current Draw
72 Amps
Dimensions
Product Height
30 1/2 Inches
Product Width
20 Inches
Product Depth
16 Inches
Product Weight
71 Pounds
Shipping Weight
75 Pounds
Certifications
Country of Origin
US
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heating Element Warranty
5 Years
