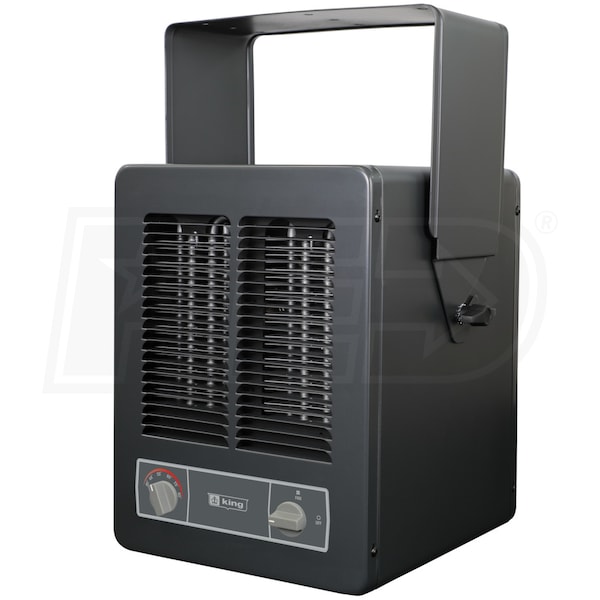

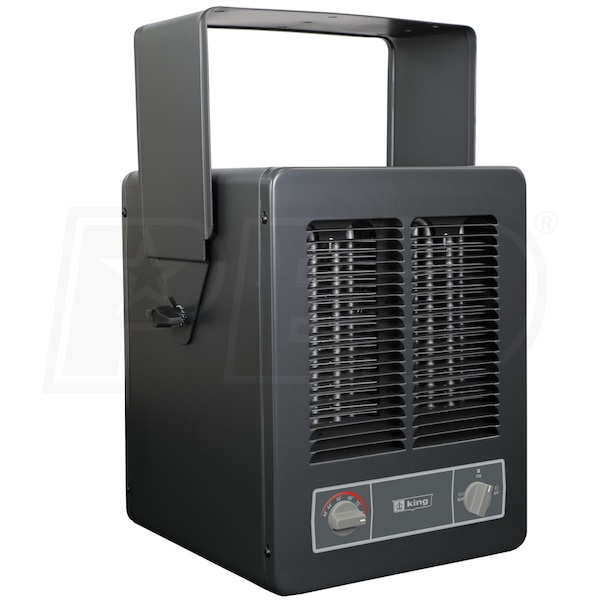

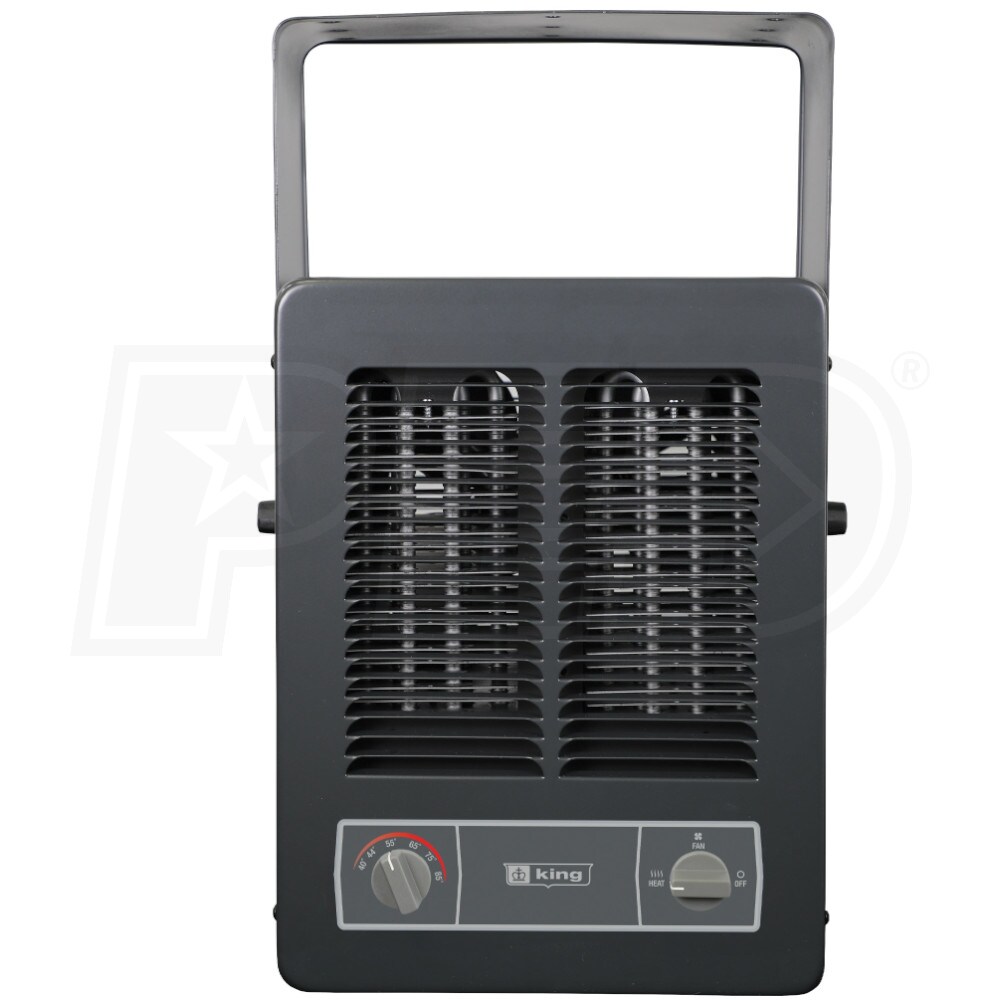

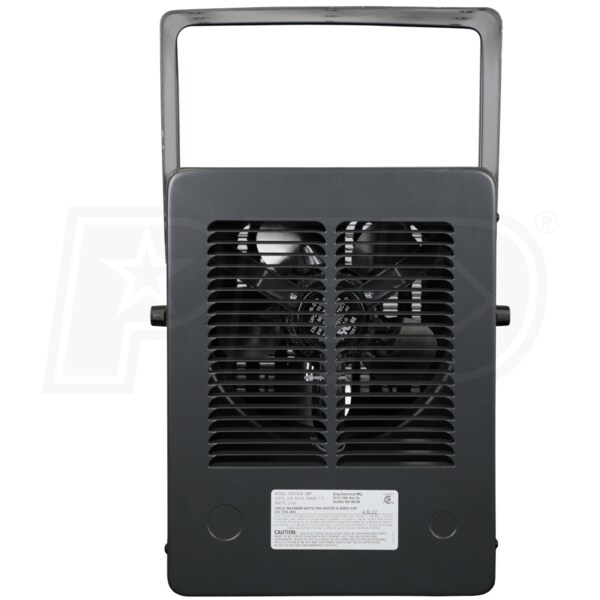

King Electric - Compact Unit Heater - 5700W - 1-3 Phase - 208V

Model:

KBP2006-3MP

Write A Review
$922.26
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$154 / Month
Suggested monthly payments with 6 month financing.
King Electric - Compact Unit Heater - 5700W - 1-3 Phase - 208V
King Electric - Compact Unit Heater - 5700W - 1-3 Phase - 208V
Model: KBP2006-3MP
$922.26
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The King Electric KBP unit heater flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. During the cool down period, the KBP unit heater increases the heat exchange in the room by dissipating heat from the elements. The KBP unit heater comes standard with a 3-position switch and an accurate built-in thermostat, making it a great fit for both residential and commercial applications.
  • King Electric KB PlatinumX Series Features
  • Original Pic-A-Watt Element
  • Fan Delay To Dissipate Heat
  • Selector Switch
  • Product Includes
  • Built-in Thermostat
  • Universal Wall/Ceiling Bracket

Specifications

KBP2006-3MP
specs product image PID-115081
Overview
Product Category
Unit Heater
UPC
093319151938
General Information
Type
Unit Heaters
Product Line
KBP
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Blower Motor Type
Long Life Cast Iron Motor
Mount Type
Wall/Ceiling
Minimum Setpoint Range
40 F
Maximum Setpoint Range
90 F
Color
Almond
Performance
Heating BTU
19449
Heating Capacity
19449 BTU
Heating Capacity (kW)
5.7 kW
Maximum Air Flow
270 CFM
Heating Power Input
5700 Watts
Electrical Data
Voltage
208 Volts
Minimum Circuit Ampacity
27 Amps
Recommended Breaker Size
40 Amps
Current Draw
27 Amps
Dimensions
Product Height
13 5/8 Inches
Product Width
10 3/8 Inches
Product Depth
11 1/4 Inches
Product Weight
23 Pounds
Shipping Weight
26 Pounds
Certifications
Country of Origin
US
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heating Element Warranty
5 Years
