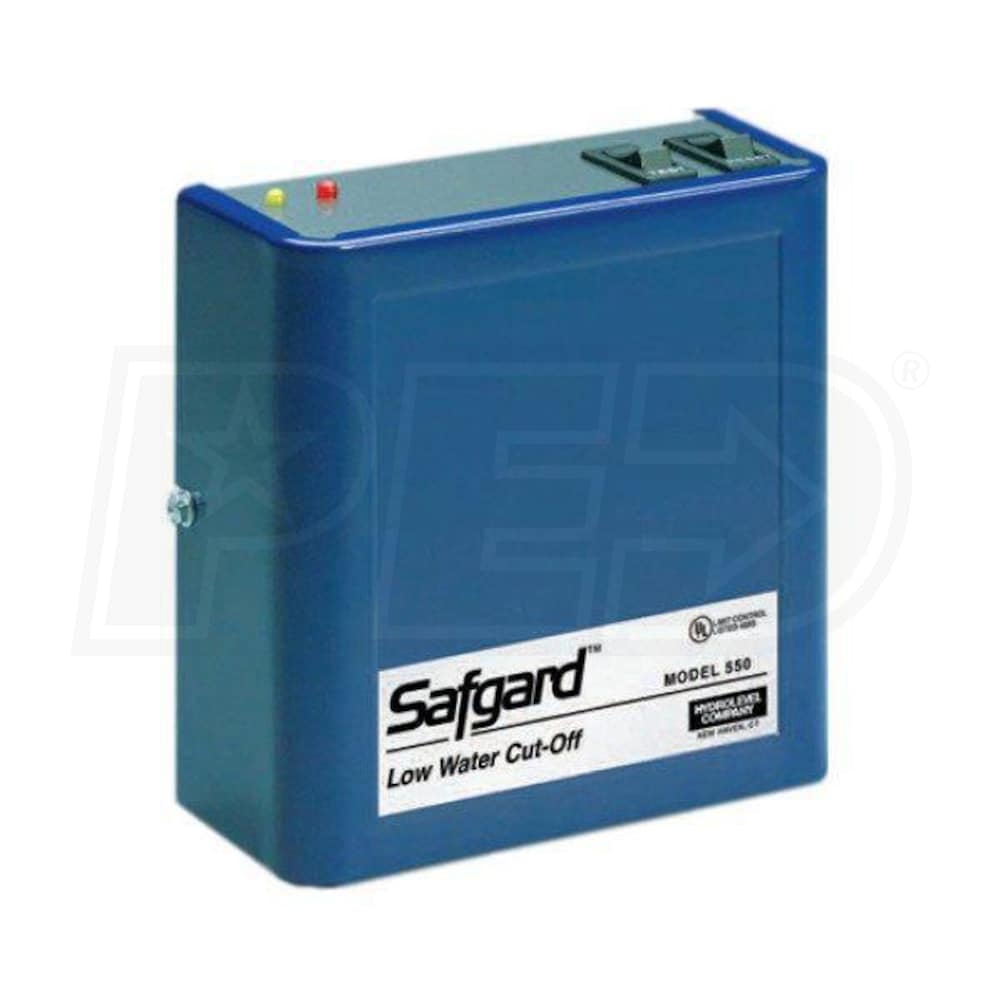

Hydrolevel Safgard 550 Commercial Hot Water Boiler Low Water Cut-Off, 120 VAC, Standard EL1214 3/4" NPT Probe
Share
+Share This Product
Product Description
Specs
1
Reviews
Product Q&A
How-To Articles
Manuals
Product Description
+−
Features
Features
The Safgard Commercial Boiler Low Water Cut-Offs are used as the primary low water cut-off on residential and commercial water boilers. The Safgard 500 and 700 series LWCOs are also used as secondary controls on commercial steam boilers. Hydrolevel controls utilize a non-moving, heavy duty, electronic probe to sense liquid levels. The probe can be installed in an equalizing line or directly into a boiler or water tank in accordance with manufacturers' instructions and local and State codes. When water is in contact with the probe, it completes a circuit between the stainless steel probe tip and the tank or boiler surface in which the probe is installed. When the water level drops below the probe, the circuit opens. Hydrolevel low water cut-offs for hydronic heating systems use the water signal to allow the burner to operate. If the water level drops below the probe, the circuit opens and the cut-off shuts down the burner. Automatically restarts burner on return of normal water level.
Heavy-duty electro-mechanical design
for long life.
Automatically shuts off burner in a low water condition
to prevent boiler damage.
Low maintenance
No moving parts to wear stick or hand up, as in float devices.
Rugged construction
Designed for the heating professional.
More Probe Plate Space
Large probe tip puts more conductive surface area in the water, leading to more dependable operation and less chance of nuisance boiler shutdowns.
Manual Reset
Shuts down the burner when water drops below the probe for 2 seconds. Requires manual reset if the water remains below the probe for 30 seconds. Power failures heating and air bubbles will not cause the manual reset to lock out. Fully CSD-1 compliant.
Test Button
Tests control operation without lowering the water level. Depressing the test button shuts down the burner after two second delay and lights low water indicating LED. Depressing the test button a full 30 seconds will send control into manual reset.
Specifications
General Information
Connection Type
NPT
UPC
064227745550
Performance
Maximum Operating Pressure
160 PSI
Electrical Data
Power Consumption
4 Watts
Voltage
120 Volts
Frequency
60 Hz
Dimensions
Connection Size
3/4 Inch
Product Height
5 9/16 Inches
Product Width
5 1/2 Inches
Product Depth
6 1/4 Inches
Product Weight
15 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
