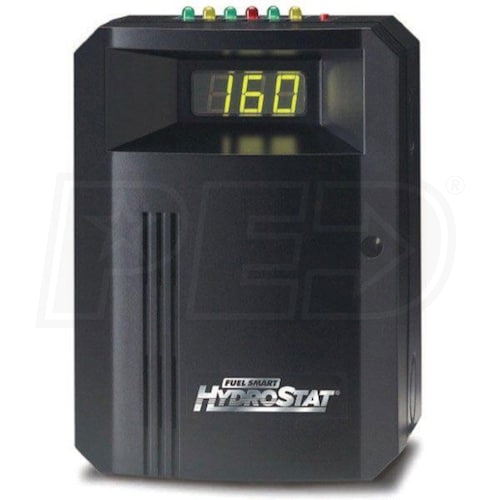

Hydrolevel HydroStat 3250 Universal Temperature Limit, Boiler Reset and Low Water Cut-Off for Oil-Fired Boilers, 120 VAC

Hydrolevel HydroStat 3250 Universal Temperature Limit, Boiler Reset and Low Water Cut-Off for Oil-Fired Boilers, 120 VAC
Our Price
Compare Prices
Shipping Info
Model: 3250
1.0 out of 51.0 out of 51.0 out of 51.0 out of 51.0 out of 5
Number of Reviews (1)
Write A Review
$136.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.

Factory-Direct
Ships in 4-7 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Hydrostat 3200 by Hydrolevel is a Universal Controller with Temperature Limit, Boiler Reset, and Low Water Cut-Off functionality. On new boilers, you can install the Fuel Smart Hydrostat with a Hydrolevel Electro-Well to meet local and state low water cut-off requirements and to provide your customer with fuel-saving Thermal Targeting technology. On existing boilers, you can replace common Aquastat models in the field to quickly upgrade older boilers with the Fuel Smart Hydrostat. If you choose to add the protection of a low water cut-off, just replace the immersion well with a Hydrolevel Electro-Well. The boiler and radiation installed in a house is designed to keep the house warm on the coldest day of the year. For every other day, the heating system is essentially larger than it needs to be. With conventional boiler controls, this "oversized" boiler burns more fuel than is needed to keep the house warm. Fuel Smart HydroStat uses Thermal Targeting technology to analyze thermostat activity and continually evaluate how much heat the house requires. When it's very cold outside, the heat demand is high and Fuel Smart HydroStat will raise the boiler's target temperature to provide needed heat to the home. When the outside temperature is milder, the heat demand is lower. During these periods, Fuel Smart HydroStat will lower the boiler's target temperature, saving fuel while continuing to provide comfort to the home. To further enhance fuel efficiency, Fuel Smart HydroStat is also equipped with a Thermal Pre-Purge feature. When activated, the control will purge standing heat in the boiler at the start of any thermostat call, supplying the "free" latent energy to the heating zone that is calling. If this latent heat is not sufficient to satisfy the thermostat, the control will then energize the burner. This feature works with single and multi-zone heating systems utilizing circulators or zone valves and requires no change in wiring.
  • Bypasses the Thermal Targeting function on calls from the indirect water heater allowing the boiler to fire to the high limit setting ensuring a quick response
  • Universal replacement
  • for common Aquastat models
  • Provides cold-start and tankless-coil operation
  • resulting in higher efficiencies
  • Easy to set
  • dial-type limit settings
  • Industry standard
  • wiring designations
  • Lowers the boiler temperature
  • to save fuel without sacrificing comfort
  • Easy to install
  • no outdoor sensor required
  • Easy to set
  • just dial in the number of heating zones
  • Works with virtually any boiler
  • making it one of the most versatile control available in today's market
  • Low Water Cut-Off protects boiler
  • from damaging low water conditions
  • LWCO automatically activated
  • when installed with Hydrolevel Electro-Well
  • Saves cost and time
  • associated with installing a separate control
  • Diagnostic Lights
  • continually indicates which features are active and if the control is holding the burner off for any reason, no complicated menus to scroll through
  • Indirect Water Heater Compatible
Specifications
Electrical Data
Voltage
120 Volts
Frequency
60 Hz
Dimensions
Product Height
6.3 Inches
Product Width
4.6 Inches
Product Depth
3.7 Inches
Product Weight
10 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The Hydrostat 3200 by Hydrolevel is a Universal Controller with Temperature Limit, Boiler Reset, and Low Water Cut-Off functionality. On new boilers, you can install the Fuel Smart Hydrostat with a Hydrolevel Electro-Well to meet local and state low water cut-off requirements and to provide your customer with fuel-saving Thermal Targeting technology. On existing boilers, you can replace common Aquastat models in the field to quickly upgrade older boilers with the Fuel Smart Hydrostat. If you choose to add the protection of a low water cut-off, just replace the immersion well with a Hydrolevel Electro-Well. The boiler and radiation installed in a house is designed to keep the house warm on the coldest day of the year. For every other day, the heating system is essentially larger than it needs to be. With conventional boiler controls, this "oversized" boiler burns more fuel than is needed to keep the house warm. Fuel Smart HydroStat uses Thermal Targeting technology to analyze thermostat activity and continually evaluate how much heat the house requires. When it's very cold outside, the heat demand is high and Fuel Smart HydroStat will raise the boiler's target temperature to provide needed heat to the home. When the outside temperature is milder, the heat demand is lower. During these periods, Fuel Smart HydroStat will lower the boiler's target temperature, saving fuel while continuing to provide comfort to the home. To further enhance fuel efficiency, Fuel Smart HydroStat is also equipped with a Thermal Pre-Purge feature. When activated, the control will purge standing heat in the boiler at the start of any thermostat call, supplying the "free" latent energy to the heating zone that is calling. If this latent heat is not sufficient to satisfy the thermostat, the control will then energize the burner. This feature works with single and multi-zone heating systems utilizing circulators or zone valves and requires no change in wiring.
  • Bypasses the Thermal Targeting function on calls from the indirect water heater allowing the boiler to fire to the high limit setting ensuring a quick response
  • Universal replacement
  • for common Aquastat models
  • Provides cold-start and tankless-coil operation
  • resulting in higher efficiencies
  • Easy to set
  • dial-type limit settings
  • Industry standard
  • wiring designations
  • Lowers the boiler temperature
  • to save fuel without sacrificing comfort
  • Easy to install
  • no outdoor sensor required
  • Easy to set
  • just dial in the number of heating zones
  • Works with virtually any boiler
  • making it one of the most versatile control available in today's market
  • Low Water Cut-Off protects boiler
  • from damaging low water conditions
  • LWCO automatically activated
  • when installed with Hydrolevel Electro-Well
  • Saves cost and time
  • associated with installing a separate control
  • Diagnostic Lights
  • continually indicates which features are active and if the control is holding the burner off for any reason, no complicated menus to scroll through
  • Indirect Water Heater Compatible
Specifications
Electrical Data
Voltage
120 Volts
Frequency
60 Hz
Dimensions
Product Height
6.3 Inches
Product Width
4.6 Inches
Product Depth
3.7 Inches
Product Weight
10 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
Electrical Data
Voltage
120 Volts
Frequency
60 Hz
Dimensions
Product Height
6.3 Inches
Product Width
4.6 Inches
Product Depth
3.7 Inches
Product Weight
10 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(1)
+
Hydrolevel 3250 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Are all green light on when system is working properly?
Joe W.
from New Jersey
August 08, 2016
Answer
The diagnostic lights at the top of the HydroStat 3250 indicate different operating modes of the control, and an individual light being lit or unlit does not necessarily indicate a problem.

The first light labeled Temp-Active indicates whether the control is powered and working. The second light labeled Temp-Hi Limit indicates that the high limit has been reached and the burner has been shut off. It is normal for this light to turn on and off during boiler operation.

The LWCO-Active light will only illuminate if you are using the Hydrolevel ElectroWell. This indicates that the low water cut off feature is active. The LWCO-Low Water light indicates that there is a low water condition only when the Hydrolevel ElectroWell is used.

The Economy-Active light indicates whether the economy feature is being used to set the supply water temperature. You can turn the economy feature on and off using the Economy Dial on the control. The Economy-Target light will illuminate when the economy target temperature has been reached and the burner has been shut off. Like the TEMP-Hi Temp light, it is normal for the Economy-Target to cycle on and off during normal operation.
