Hydrolevel HydroStat 3100 Universal Temperature Limit and Low Water Cut-Off for Gas-Fired Boilers, 24 VAC

Hydrolevel HydroStat 3100 Universal Temperature Limit and Low Water Cut-Off for Gas-Fired Boilers, 24 VAC
Model: 3100
$139.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Hydrolevel HydroStat 3100 Universal Temperature Limit and Low Water Cut-Off for Gas-Fired Boilers, 24 VAC

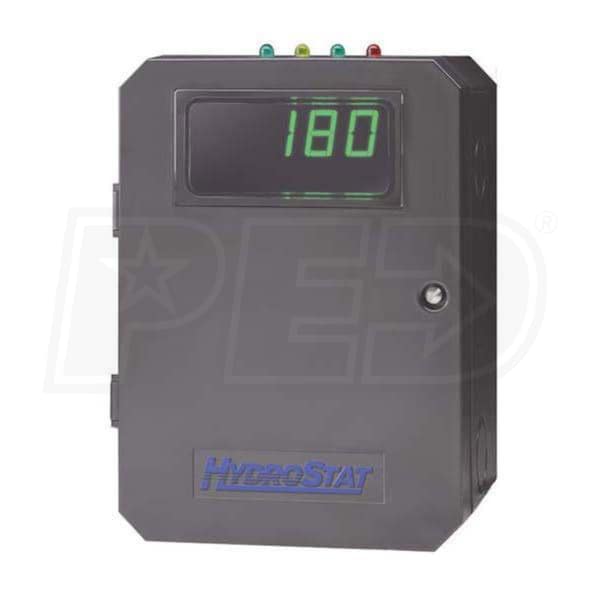

    The Hydrostat 3100 by Hydrolevel is designed to be used in one of two ways. By installing the Hydrostat Limit Controller on an existing immersion well, the Hydrolevel 3100 can be used as a universal replacement for common Aquastat models. Whether it's a cold start or a tankless coil boiler, this Hydrolevel limit controller is well suited to provide all the temperature functions of the control being replaced. Or, install the Hydrolevel Low Water Cutoff on a Hydrolevel Electro-Well (sold separately) to automatically activate the low water cut-off function, allowing you to add low water cut-off protection to a new or existing installation without spending additional time and costs to install a separate control.

    Hydrolevel 3100 Universal Temperature Limit and Low Water Cut-Off Features:
    • Dual Function Design - HydroStat performs both high temperature limit and low water cut-off functions when installed with a Hydrolevel Electro-Well.
    • Replaces Common Aquastat Models - Can be installed on existing immersion wells to replace both cold-start and triple-action Aquastats.
    • Digital Display - Easy to read LED continually displays boiler temperature. Also displays temperature limit and differential settings during adjustment.
    • Easy to Set - Dials for setting temperature limits and differentials eliminate complicated programming.
    • Easy to Wire - Industry standard wiring designations make change-outs quick and easy. Uses the same terminal designations as common Aquastat models.
    • Advanced Micro-Controller Design - Utilizes dual thermistor technology for better accuracy, response and reliability.
    • 4 on-board diagnostic indicating lights
    • Saves time, materials and wiring
    Hydrolevel 3100 Universal Temperature Limit and Low Water Cut-Off Accessories:
    • Remote Mounting - the Hydrolevel 48-101 and 48-102 Remote Mount Kits are available separately for mounting the HydroStat Control Box in a remote location. Each kit includes mounting hardware and a remote sensor.
    • Electro-Well - To enable Hydrostat's low water cut-off function, Electro-Wells are available in 4 sizes to replace standard immersion wells. The Hydrolevel EW-201, EW-202, EW-221 and EW-222 are all compatible.
    Hydrolevel 3100 Universal Temperature Limit and Low Water Cut-Off Warranty:
    • 1 year
Specifications
Electrical Data
Voltage
120 Volts
Frequency
60 Hz
Dimensions
Product Height
6.25 Inches
Product Width
4.5 Inches
Product Depth
3 Inches
Product Weight
10 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
