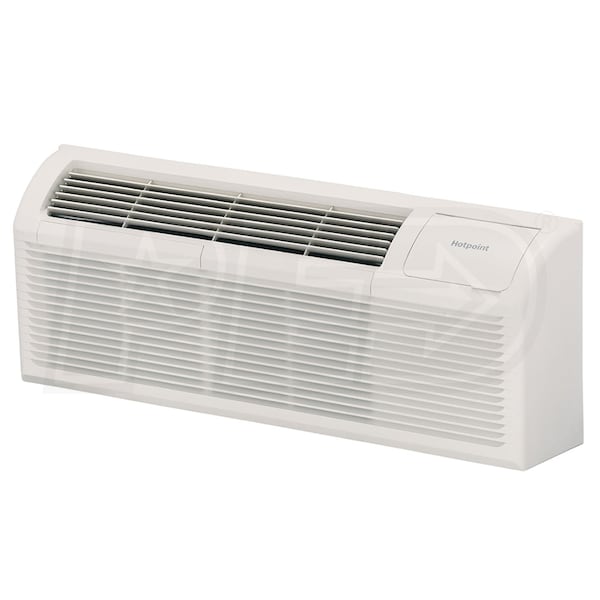

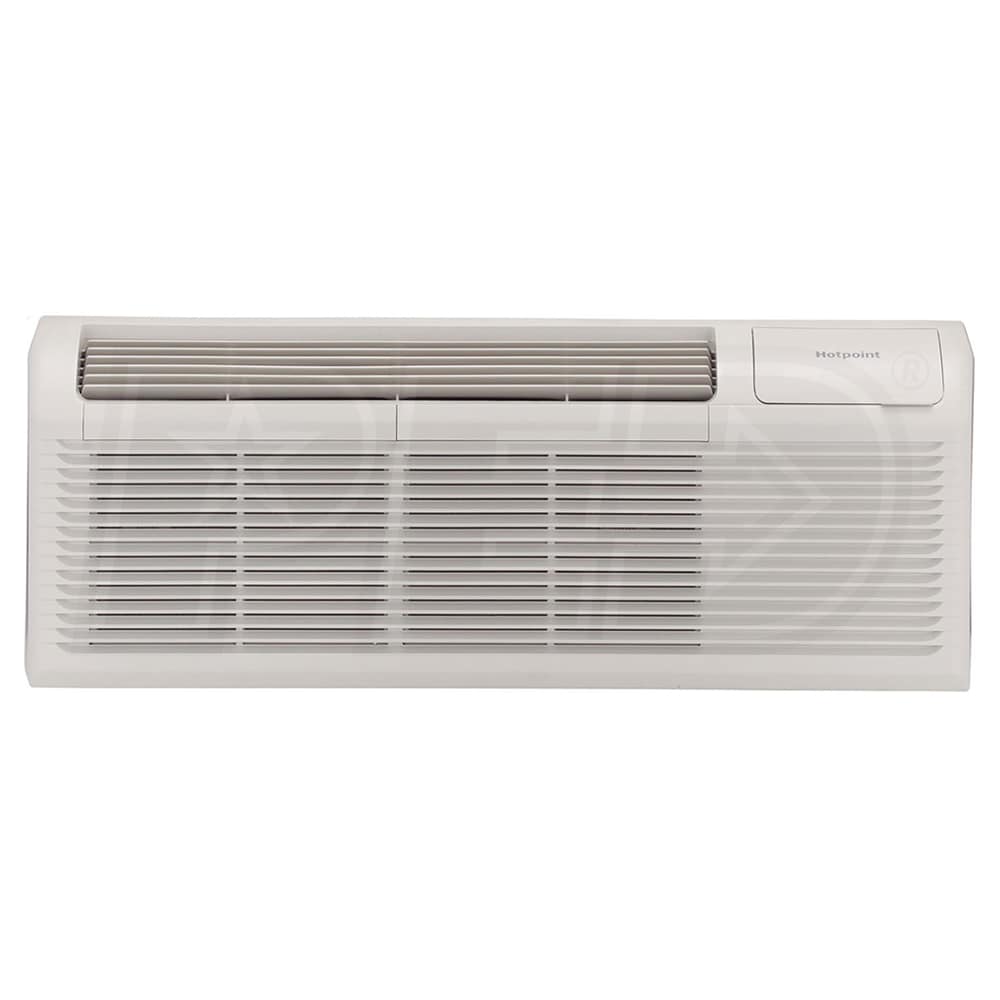

Hotpoint - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - 2.4 kW Electric Heat - 208-230 Volt



Write A Review
Free Shipping
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Estimated Availability 12-14 Weeks
  Learn More
Estimated Availability
Secure your place in line to receive this item once the manufacturer has provided us new inventory. Keep in mind orders are fulfilled in the order they are received. If you wish to no longer wait on the item, you are more than welcome to cancel the order. However, please keep in mind you will lose your place in line.
Shipping to60601
synchrony card logo
$128 / Month
Suggested monthly payments with 6 month financing.
Hotpoint - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - 2.4 kW Electric Heat - 208-230 Volt
Hotpoint - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - 2.4 kW Electric Heat - 208-230 Volt
Model: AH11E09D2B
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    Engineered for durability, Hotpoint PTACs are bult with durable materials to withstand the elements. The self-diagnostics feature helps you identify service needs, making service calls quick and easy. Hotpoint PTACs gives the guests control over their comfort with an easy-to-use control panel.
  • Three Speed Fan
  • Hotpoint PTACs come with three different fan speeds to choose from. Giving every guest control over their own comfort.
  • Four Temperature Limiting Options
  • All Hotpoint PTACs offer four temperature options for comfort and peak efficiency.
  • Intuitive Display
  • The control panel of the Hotpoint PTACs allows guest to easily set their preferred settings, helping reduce maintenance calls.
  • Power Cord Included
  • Hotpoint PTACs are equipped with a LCDI cord for fast and easy installation.
  • Freeze and Frost Protection
  • Hotpoint PTACs operate in peak conditions with indoor frost and automatic freeze control.
  • Auto Power Recovery
  • Hotpoint PTACs automatically resume operation after a power failure, reducing maintenance calls.
  • Self-Diagnostics
  • Each Hotpoint PTAC comes with a nine-point diagnostic code system that makes it easy to solve service issues.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm -
For more information go to:


Plug Types
Plug Type (NEMA 6-15P): This appliance uses NEMA 6-15P standard size power plug. It's designed for a 240V 15A household power supply. Please verify that your home's power supply is compatible with this appliance before purchase.
specs product image PID-113647
Product Category
General Information
Product Line
Product Category
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Electric Heat
Refrigerant Type
Electric Heat
Cooling BTU
Cooling Capacity
9200 BTU
Electric Heat Capacity
2.4 kW
EER Learn More
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
Maximum Air Flow
435 CFM
Minimum Air Flow
394 CFM
Electrical Data
Plug Type
NEMA 6-15P
208/230 Volts
60 Hz
Recommended Breaker Size
15 Amps
Product Height
16 Inches
Product Width
42 Inches
Product Depth
21 Inches
Product Weight
105 Pounds
Shipping Weight
130 Pounds
AHRI Certified
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
