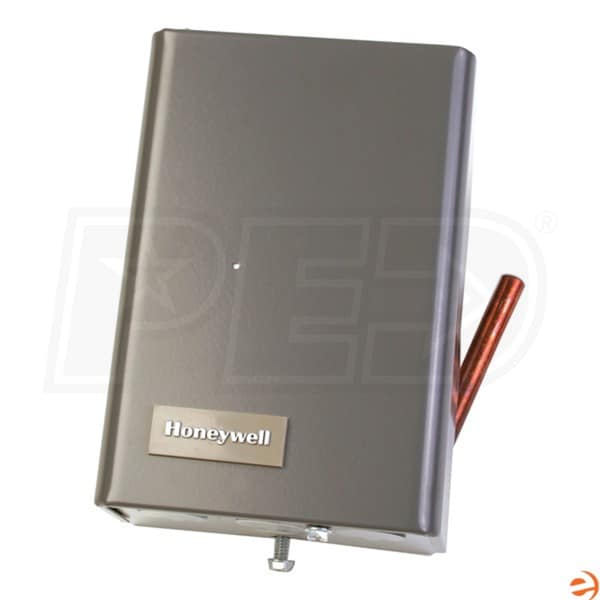

Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Protection, Low Limit+Circulator Control Applications

Model:

L8124A1015

Write A Review
$343.38
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Jun 23rd
Shipping to60601
synchrony card logo
$58 / Month
Suggested monthly payments with 6 month financing.
Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Protection, Low Limit+Circulator Control Applications
Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Protection, Low Limit+Circulator Control Applications
Model: L8124A1015
$343.38
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Protection, Low Limit+Circulator Control Applications

    The Honeywell L8124A1015 Triple Aquastat Relay Immersion Type Controller for High Limit Protection is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.

    Honeywell L8124A1015 Triple Aquastat Relay Immersion Type Controller for High Limit Protection Features:
    • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
    • Provide multizone control by using a separate circulator and R845 Relay for each zone
    • Mount directly to boiler
    • Requires 24 Vac thermostat with heat anticipator set at .2A
    Honeywell L8124A1015 Triple Aquastat Relay Immersion Type Controller for High Limit Protection Includes:
    • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
    Honeywell L8124A1015 Triple Aquastat Relay Immersion Type Controller for High Limit Protection Warranty:
    • Parts: 1 Year

Specifications

L8124A1015
specs product image PID-35542
General Information
Product Line
L812
Limit Type
High and Low
High Differential Temperature Type
Fixed
Low Differential Temperature Type
Adjustable
UPC
085267054867
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
240 F
Maximum Operating Pressure
200 PSI
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.2 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
3.1 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
