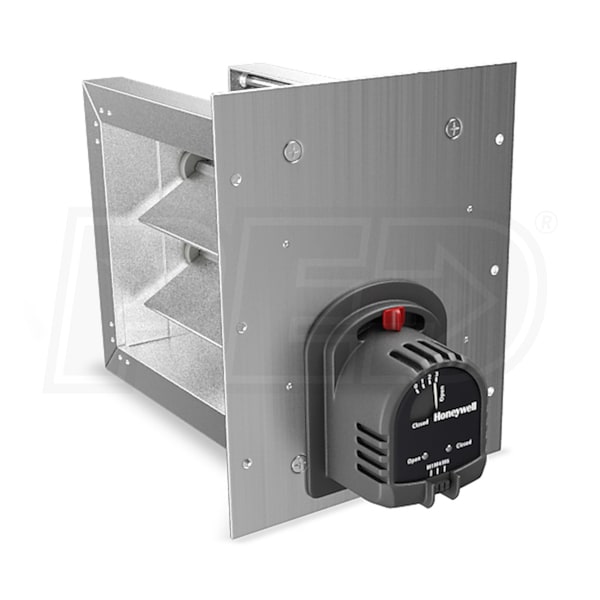

Honeywell Home-Resideo TrueZONE - Rectangular Zoning Damper - 20" X 16"
Honeywell Home-Resideo TrueZONE - Rectangular Zoning Damper - 20" X 16"
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Easy Installation - Designed for the Technician
- Adjustable Range Stops are easy to set by with a push-in lever
- Mechanical Position Indicator allows easy viewing through a clear window
- Push-In Terminals for the same easy wiring used on TrueZONE Panels
- LED Indicator Lights show damper position (Red: the damper is closed, Green: open)
- Taping Flange allows positioning insulation under it before sealing with foil tape
- Oustanding Performance
- Designed with R8 insulation specification in mind, helping the system pass efficiency audits
- The improved internal design creates a slower return that ensures a quiet operation
- Built To Last
- The TrueZONE Damper actuator is constructed with high temperature outer plastics, an all-metal drive train and Teflon-coated springs
- Motor Mounted on the 16" Dimension
Honeywell Home-Resideo developed its first residential temperature zoning systems in 1945. Since then, the market for individual room temperature control has continued to grow, and so has Honeywell Home-Resideo's leadership position in the category. For applications from two zones to 32 zones, and for products from panels to dampers to complete system kits, Honeywell Home-Resideo is your single-source solution for zoning.
Specifications
General Information
Type
Zoning Damper
Product Line
ZD
Voltage Type
24
Normal Position
Open
UPC
085267615303
Dimensions
Product Height
16 Inches
Product Width
20 Inches
Shipping Height
23 5/8 Inches
Shipping Width
6 1/2 Inches
Shipping Depth
16 Inches
Shipping Weight
9.4 Pounds
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
