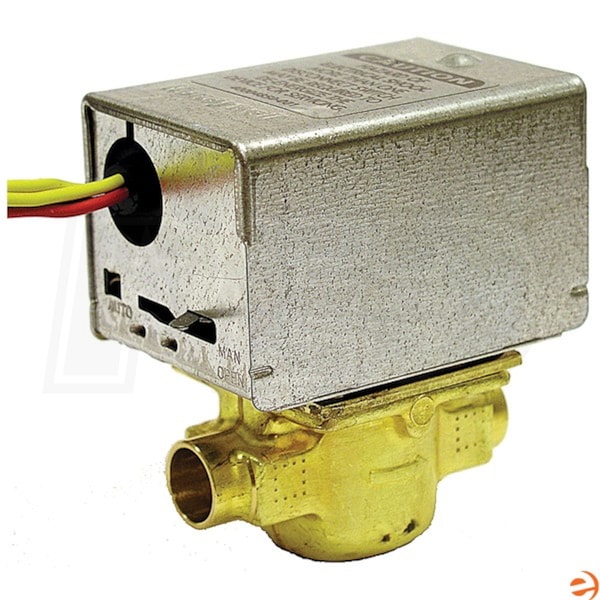

Honeywell Motorized Line Voltage Diverting Valve, 120 Vac, Flare Connection

Honeywell Motorized Line Voltage Diverting Valve, 120 Vac, Flare Connection
Our Price
Compare Prices
Shipping Info
Model: V4044A1001
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell Motorized Line Voltage Diverting Valve, 120 Vac, Flare Connection

    The Honeywell V4044A1001 Motorized Line Voltage Diverting Valve consists of an actuator motor and valve assembly for controlling the flow of hot or chilled water. The Honeywell V4044A1001 Motorized Line Voltage Diverting Valve is a 0.5 inch Three-way, Diverting Flare valve, with a Cv of 4.

    Honeywell V4044A1001 Motorized Line Voltage Diverting Valve Features:
    • May be installed without disassembling the valve
    • Compact construction for easy installation
    • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
    • Motor may be replaced without removing the valve body or draining the system
    • Suitable for heating applications
    Honeywell V4044A1001 Motorized Line Voltage Diverting Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V4043
Valve Type
Diverting
Body Pattern
Three-way
Connection Type
Flare
Maximum Differential Pressure Range
20 PSI
UPC
085267103787
Performance
CV Value
4
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.35 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features

    Honeywell Motorized Line Voltage Diverting Valve, 120 Vac, Flare Connection

    The Honeywell V4044A1001 Motorized Line Voltage Diverting Valve consists of an actuator motor and valve assembly for controlling the flow of hot or chilled water. The Honeywell V4044A1001 Motorized Line Voltage Diverting Valve is a 0.5 inch Three-way, Diverting Flare valve, with a Cv of 4.

    Honeywell V4044A1001 Motorized Line Voltage Diverting Valve Features:
    • May be installed without disassembling the valve
    • Compact construction for easy installation
    • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
    • Motor may be replaced without removing the valve body or draining the system
    • Suitable for heating applications
    Honeywell V4044A1001 Motorized Line Voltage Diverting Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V4043
Valve Type
Diverting
Body Pattern
Three-way
Connection Type
Flare
Maximum Differential Pressure Range
20 PSI
UPC
085267103787
Performance
CV Value
4
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.35 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
V4043
Valve Type
Diverting
Body Pattern
Three-way
Connection Type
Flare
Maximum Differential Pressure Range
20 PSI
UPC
085267103787
Performance
CV Value
4
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.35 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
