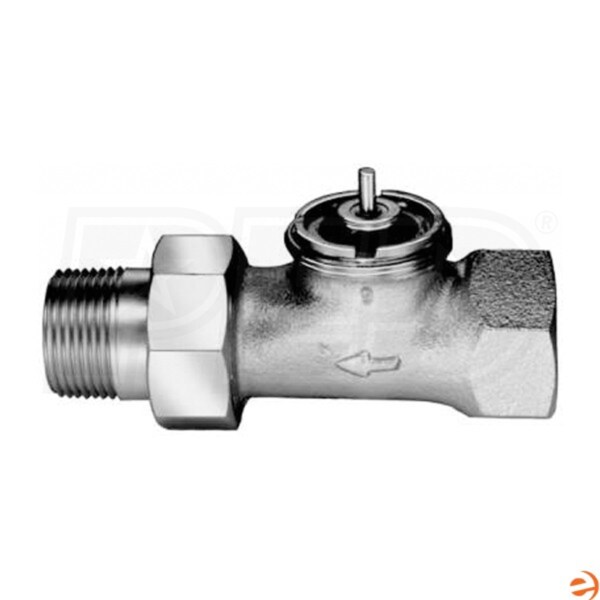

Honeywell High Capacity Thermostatic Radiator Valve, 8.0 Cv, Straight Body, 1 1/4" Threaded, 193,000 BTU

Honeywell High Capacity Thermostatic Radiator Valve, 8.0 Cv, Straight Body, 1 1/4" Threaded, 193,000 BTU
Our Price
Compare Prices
Shipping Info
Model: V110D1024
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell High Capacity Thermostatic Radiator Valve, 8.0 Cv, Straight Body, 1 1/4" Threaded, 193,000 BTU

    The Honeywell V110D1024 High Capacity Thermostatic Radiator Valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The Honeywell V110D1024 High Capacity Thermostatic Radiator Valve is a Straight body pattern valve with a 1.25 inch NPT connection. It has a Cv of 8.

    Honeywell V110D1024 High Capacity Thermostatic Radiator Valve Features:
    • Designed with the higher capacity normally required by North American heating systems
    • Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
    • Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
    • All working parts are replaceable using service tool (MT100C1011)
    • Valves normally open without control mounted
    • Valves may be used with T104 Thermostat Actuators
    • Meets ASHRAE Standard 102-1989
    Honeywell V110D1024 High Capacity Thermostatic Radiator Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Body Pattern
Straight
Connection Type
NPT
UPC
085267103176
Performance
CV Value
8
Dimensions
Connection Size
1.25 Inches
Product Weight
2.65 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features

    Honeywell High Capacity Thermostatic Radiator Valve, 8.0 Cv, Straight Body, 1 1/4" Threaded, 193,000 BTU

    The Honeywell V110D1024 High Capacity Thermostatic Radiator Valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The Honeywell V110D1024 High Capacity Thermostatic Radiator Valve is a Straight body pattern valve with a 1.25 inch NPT connection. It has a Cv of 8.

    Honeywell V110D1024 High Capacity Thermostatic Radiator Valve Features:
    • Designed with the higher capacity normally required by North American heating systems
    • Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
    • Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
    • All working parts are replaceable using service tool (MT100C1011)
    • Valves normally open without control mounted
    • Valves may be used with T104 Thermostat Actuators
    • Meets ASHRAE Standard 102-1989
    Honeywell V110D1024 High Capacity Thermostatic Radiator Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Body Pattern
Straight
Connection Type
NPT
UPC
085267103176
Performance
CV Value
8
Dimensions
Connection Size
1.25 Inches
Product Weight
2.65 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Body Pattern
Straight
Connection Type
NPT
UPC
085267103176
Performance
CV Value
8
Dimensions
Connection Size
1.25 Inches
Product Weight
2.65 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
