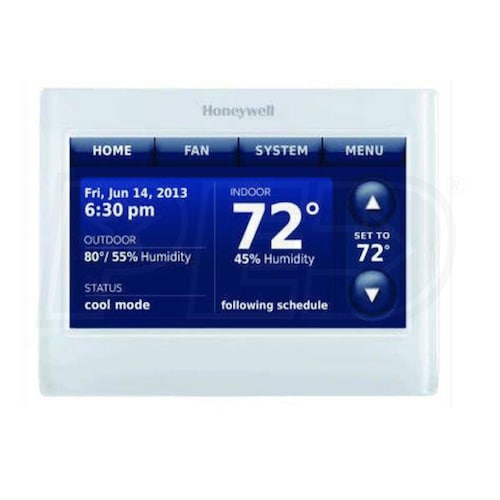

Honeywell Home-Resideo Prestige - 2-Wire High Definition Thermostat - Color Touchscreen - RedLINK™

Model:

THX9421R5021WW

Write A Review
$383.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Mar 19th
Shipping to60601
synchrony card logo
$64 / Month
Suggested monthly payments with 6 month financing.
Honeywell Home-Resideo Prestige - 2-Wire High Definition Thermostat - Color Touchscreen - RedLINK™
Honeywell Home-Resideo Prestige - 2-Wire High Definition Thermostat - Color Touchscreen - RedLINK™
Model: THX9421R5021WW
$383.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Honeywell Home-Resideo thermostats have a worldwide reputation for both reliability and ease of use. The Prestige Touchscreen Thermosatat is a fantastic tool for controlling home heating and cooling. This 7 Day programmable thermostat communicates with your air handler or other HVAC products to provide clean, even heat to your entire home. The Prestige thermostat is a touch screen thermostat that practically programs itself by asking you intuitive questions instead of a manual programming interface. Honeywell Home-Resideo's enhanced thermostat features and extended warranty combine to offer a product unmatchable by nearly anyone in the industry.
  • Honeywell Home-Resideo THX9421R5021WW Features
  • Control heating, cooling and IAQ equipment with only 2 wires at the thermostat. Heating, cooling and IAQ equipment wires to the Equipment Interface Module
  • Smart Schedule - programs in seconds for any lifestyle
  • RedLINK wireless communication
  • All Prestige IAQ kits come standard with a return and discharge air temperature sensor
  • USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats
  • 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
  • Multiple staging options to provide comfort or energy savings
  • Controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system.
  • Product Compabatible with
  • THM5421R1021 Equipment Interface Module
  • RedLINK accessories
  • Product Note
    This thermostat may require Honeywell THM5421R1021 Equipment Interface Module for some applications. Please call our technical support to confirm.

Specifications

THX9421R5021WW
specs product image PID-34954
General Information
Type
Thermostat
Stages
4 Heat/2 Cool
Connection Type
Hardwire
Programmable
Yes
UPC
085267653626
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Electrical Data
Voltage
18-30 Volts
Frequency
50 Hz
Dimensions
Product Height
3 1/2 Inches
Product Width
4 1/2 Inches
Product Depth
7/8 Inch
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
