Honeywell Hydronic Universal Switching Relay, Two Spst, Low voltage SPST relay

Honeywell Hydronic Universal Switching Relay, Two Spst, Low voltage SPST relay
Our Price
Compare Prices
Shipping Info
Model: R8845U1003
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

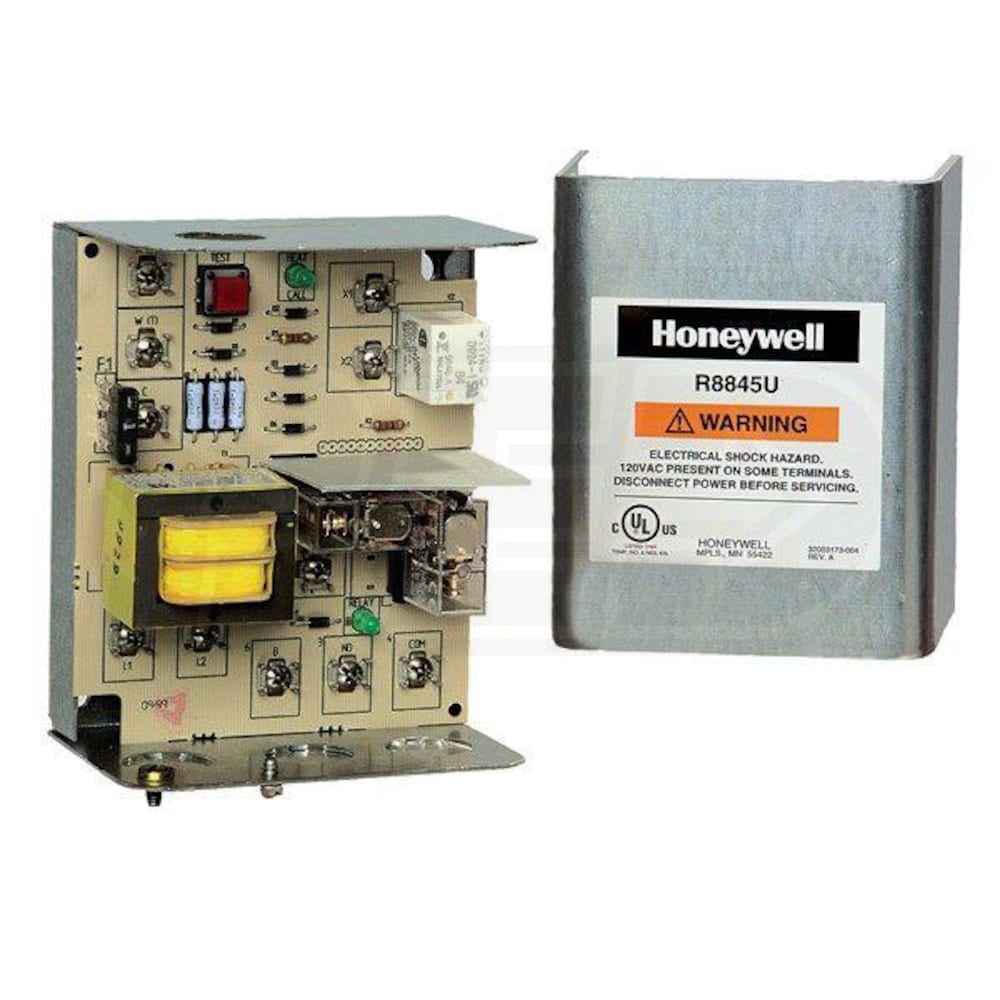

    The Honeywell R8845U1003 Hydronic Universal Switching Relay with 24V transformer provides intermediate switching of line and low-voltage devices from a line or low voltage controller and is typically applied in Hydronic heating systems.
  • Honeywell R8845U1003 Features
  • Replaceable socketed relays
  • Two troubleshooting LED
  • Push-to-test button
  • Replaceable transformer fuse
  • Low-voltage contact rating for powerpile applications
  • Long-life DC relay drive control technology
  • Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control or with internal 24V transformer supply
  • One model replaces many competitor models
Specifications
General Information
Product Line
R8845
UPC
085267198080
Electrical Data
Maximum Load at 120V - AFL
7.44 Amps
Maximum Load at 120V - ALR
44.4 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/4 Inches
Product Width
4 7/16 Inches
Product Length
3 1/2 Inches
Product Weight
2.05 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The Honeywell R8845U1003 Hydronic Universal Switching Relay with 24V transformer provides intermediate switching of line and low-voltage devices from a line or low voltage controller and is typically applied in Hydronic heating systems.
  • Honeywell R8845U1003 Features
  • Replaceable socketed relays
  • Two troubleshooting LED
  • Push-to-test button
  • Replaceable transformer fuse
  • Low-voltage contact rating for powerpile applications
  • Long-life DC relay drive control technology
  • Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control or with internal 24V transformer supply
  • One model replaces many competitor models
Specifications
General Information
Product Line
R8845
UPC
085267198080
Electrical Data
Maximum Load at 120V - AFL
7.44 Amps
Maximum Load at 120V - ALR
44.4 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/4 Inches
Product Width
4 7/16 Inches
Product Length
3 1/2 Inches
Product Weight
2.05 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
R8845
UPC
085267198080
Electrical Data
Maximum Load at 120V - AFL
7.44 Amps
Maximum Load at 120V - ALR
44.4 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/4 Inches
Product Width
4 7/16 Inches
Product Length
3 1/2 Inches
Product Weight
2.05 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
