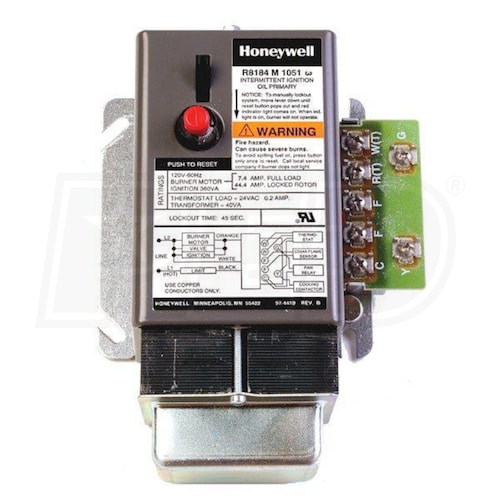

Honeywell Home-Resideo Protectorelay Oil Burner Control - 45 Second Lock Out Timing
Honeywell Home-Resideo Protectorelay Oil Burner Control - 45 Second Lock Out Timing
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Honeywell Home-Resideo R8184M1051 Features
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Remote lockout indication available on some models
- Enclosed safety switch with external reset button
- Manual trip lever open safety switch for system maintenance
- Mounts on standard 4 x 4 in junction box
- C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required
The Honeywell Home-Resideo R8184M1051 Protectorelay Oil Burner Control provides automatic, nonrecycling control of an intermittent ignition oil burner system.
Specifications
General Information
Product Line
R8184
UPC
085267078733
Dimensions
Product Height
4 3/8 Inches
Product Width
4 1/8 Inches
Product Length
2 1/2 Inches
Product Weight
2.95 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Honeywell Home-Resideo R8184M1051 Features
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Remote lockout indication available on some models
- Enclosed safety switch with external reset button
- Manual trip lever open safety switch for system maintenance
- Mounts on standard 4 x 4 in junction box
- C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required
The Honeywell Home-Resideo R8184M1051 Protectorelay Oil Burner Control provides automatic, nonrecycling control of an intermittent ignition oil burner system.
