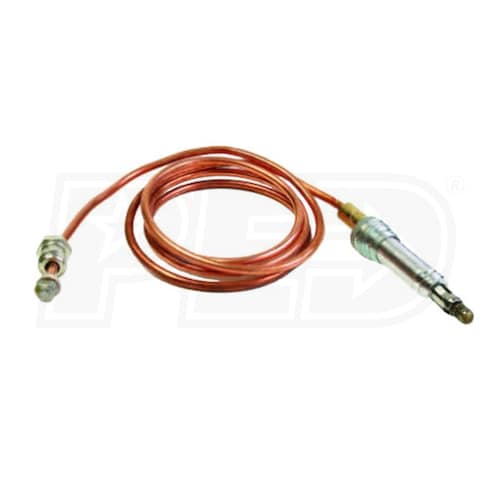

The Honeywell Q340A1090 Universal 30mV Thermocouple generates a thermoelectric current that senses a pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base. The temperature difference generates a small amount of DC power, measured in millivolts.
Honeywell Q340A1090 Features
Spade or quick-connect terminals available for millivolt gas control connections.
Male connector for Pilotstat safety control power units
Push-in clip
Split Nut
Two Automatic Operators
Adapter Assembly
Product Includes
Push-in clip
Split Nut
Two Automatic Operators
Adapter Assembly
Specifications
General Information
Product Line
Q340
UPC
085267067430
Dimensions
Connection Size
17/48 Inch
Product Weight
0.16 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
