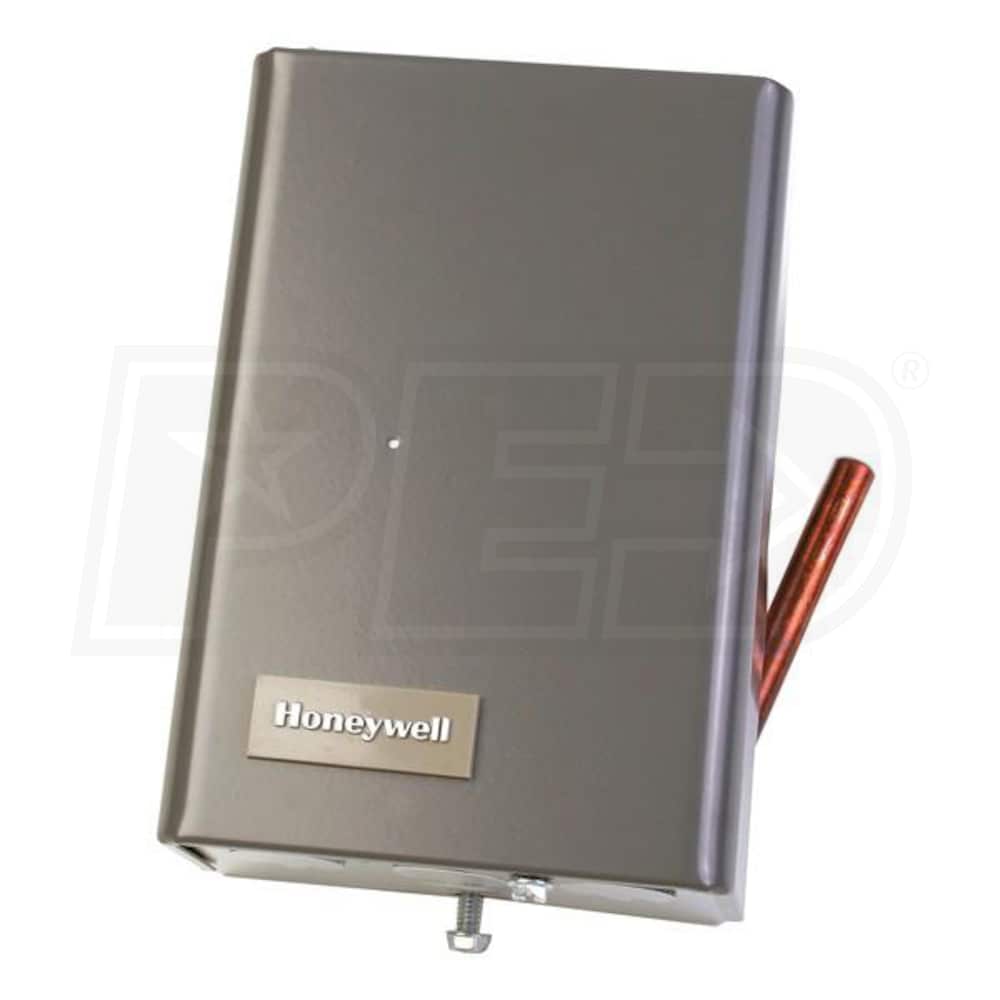

Honeywell Home-Resideo Triple Aquastat Relay - Immersion Type - For High Limit Applications
Model: L8124C1003
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$258.90
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Honeywell Home-Resideo L8124C1003 Triple Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
  • Honeywell Home-Resideo L8124C1003 Features
  • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
  • Provide multizone control by using a separate circulator and R845 Relay for each zone
  • Mount directly to boiler
  • Requires 24 Vac thermostat with heat anticipator set at .2A
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
  • Product Includes
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
Specifications
General Information
Product Line
L812
Limit Type
High
High Differential Temperature Type
Fixed
Low Differential Temperature Type
Adjustable
UPC
085267054959
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
240 F
Maximum Operating Pressure
200 PSI
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.7 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
3.3 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The Honeywell Home-Resideo L8124C1003 Triple Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
  • Honeywell Home-Resideo L8124C1003 Features
  • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
  • Provide multizone control by using a separate circulator and R845 Relay for each zone
  • Mount directly to boiler
  • Requires 24 Vac thermostat with heat anticipator set at .2A
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
  • Product Includes
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
Specifications
General Information
Product Line
L812
Limit Type
High
High Differential Temperature Type
Fixed
Low Differential Temperature Type
Adjustable
UPC
085267054959
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
240 F
Maximum Operating Pressure
200 PSI
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.7 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
3.3 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
