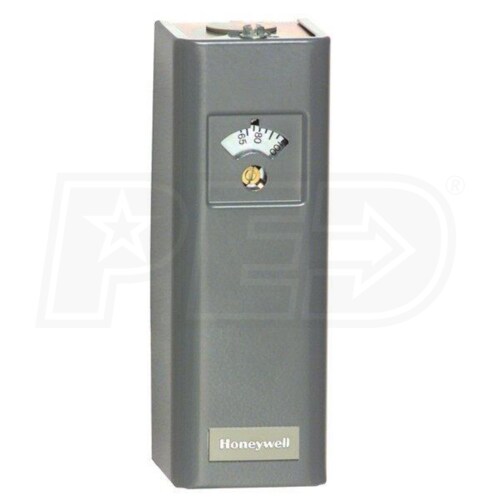

Honeywell Home-Resideo Remote Bulb Aquastat Controller - 100-240° F Range - For Circulator or Low Limit Applications
Model:
L6008A1192
+
Share This Product
Features
- Honeywell Home-Resideo L6008A1192 Features
- Remote temperature sensing element detects and responds rapidly to temperature changes
- Totally enclosed Micro Switch snap-acting switch
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical mounting of the remote element into boiler, tank or other container.
- Case mounts to a vertical surface
The Honeywell Home-Resideo L6008A1192 Remote Bulb Aquastat Controller For Circulator & Low Limit Applications is an immersion device for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
Specifications
L6008A1192
General Information
Product Line
L600
Limit Type
Low
Low Differential Temperature Type
Adjustable
UPC
085267053877
Performance
Minimum Operating Temperature
100 F
Maximum Operating Temperature
240 F
Electrical Data
Maximum Load at 120V - AFL
8 Amps
Maximum Load at 120V - ALR
48 Amps
Maximum Load at 240V - AFL
5.1 Amps
Maximum Load at 240V - Resistive
30.6 Amps
Voltage
120/240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Bulb Size
3/8 Inch
Product Height
5 5/8 Inches
Product Width
2 Inches
Product Length
2 1/8 Inches
Product Weight
1.3 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
