Honeywell Aquastat Controller For High or Low Limit Applications, 100-240 Degree Range, 5 Degree Differential Temperature

Honeywell Aquastat Controller For High or Low Limit Applications, 100-240 Degree Range, 5 Degree Differential Temperature
Our Price
Compare Prices
Shipping Info
Model: L4006A1132
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell Aquastat Controller For High or Low Limit Applications, 100-240 Degree Range, 5 Degree Differential Temperature

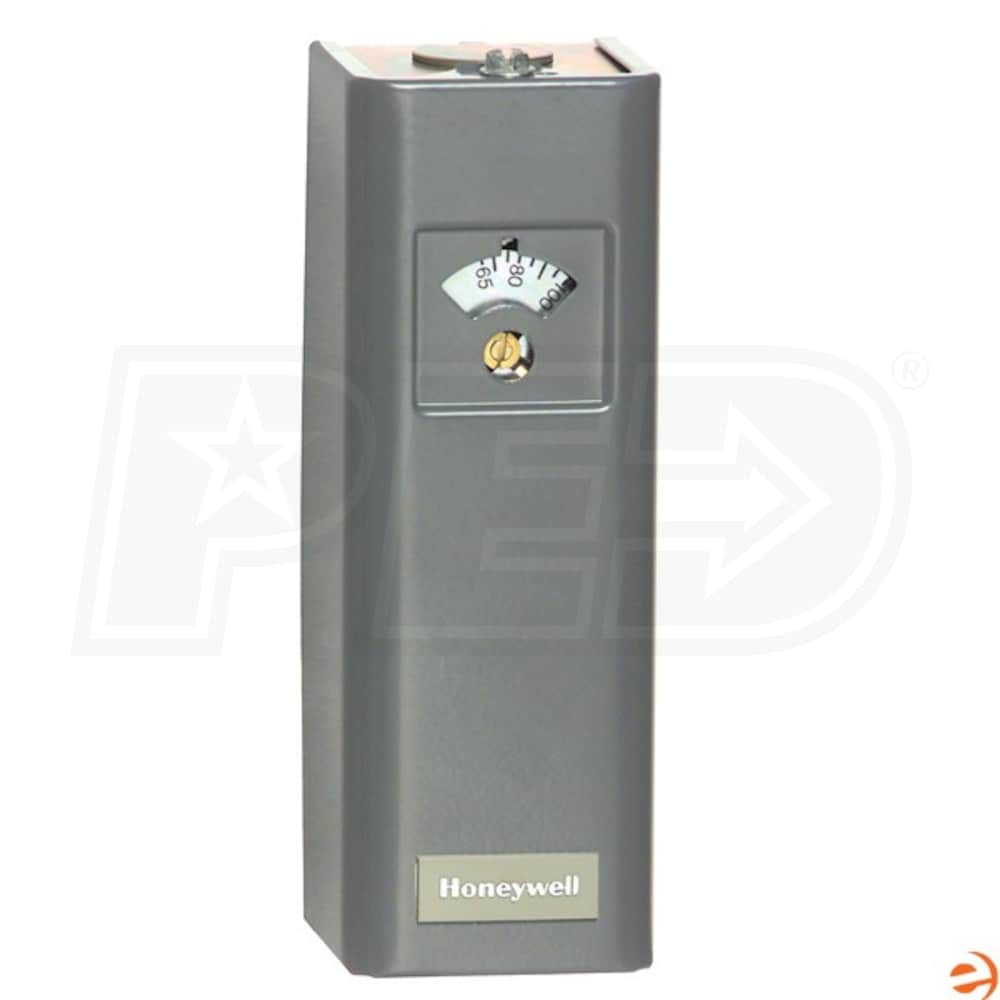

    The Honeywell L4006A1132 Aquastat Controller For High or Low Limit Applications is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.

    Honeywell L4006A1132 Aquastat Controller For High or Low Limit Applications Features:
    • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint
    • Visible control point scale and external adjustment screw permit easy setting
    • Horizontal or vertical insertion of the sensing element
    • Direct or well immersion of the sensing element
    • Models available for strap-on mounting
    • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
    Honeywell L4006A1132 Aquastat Controller For High or Low Limit Applications Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
L400
Limit Type
High or Low
High Differential Temperature Type
Fixed
UPC
085267000161
Performance
Minimum Operating Temperature
100 F
Maximum Operating Temperature
240 F
Electrical Data
Maximum Load at 120V - AFL
8 Amps
Maximum Load at 120V - ALR
48 Amps
Maximum Load at 240V - AFL
5.1 Amps
Maximum Load at 240V - Resistive
30.6 Amps
Voltage
120/240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Capillary Length
3 Inches
Bulb Size
0.38 Inches
Well Spud Size
0.75 Inches
Well Spud Type
NPT
Product Height
5.63 Inches
Product Width
2 Inches
Product Length
2.13 Inches
Product Weight
1.18 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
American Gas Association Certification
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
