Guardian MC48C3XC1
Guardian MC48C3XC1
Hover to zoom
1 of 1

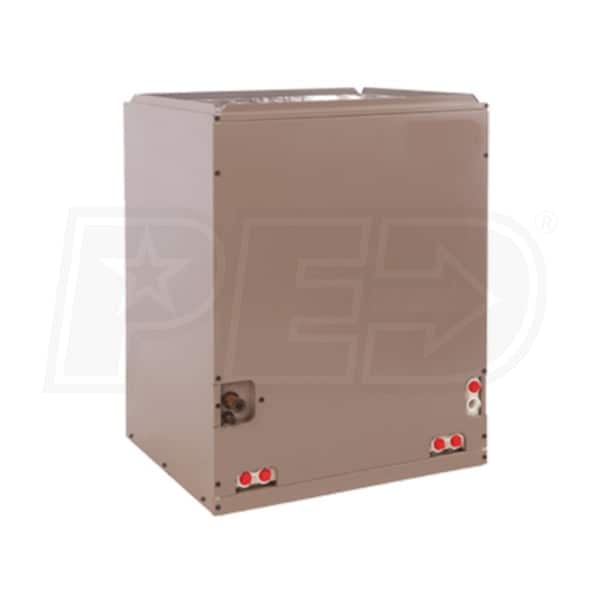

Guardian MC - 3-4 Ton - Multi-Position A Coil - Cased

Model:

MC48C3XC1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Guardian MC - 3-4 Ton - Multi-Position A Coil - Cased
Guardian MC - 3-4 Ton - Multi-Position A Coil - Cased
Model: MC48C3XC1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    Backed by Johnson Controls, the Guardian brand strives to uphold quality standards unparalleled in the industry - delivering performance, efficiency, and reliability you can trust. Their MC evaporator coil is the perfect complement to a Guardian air conditioner in any airflow application. It features a design that prioritizes longevity and efficiency to keep your maintenance and utility costs low. Before the MC48C3XC1 leaves the factory, it is thoroughly tested for leaks and equipped with refrigerant line fittings to expedite installation.

    Product Features

    High Performance Design
    Guardian evaporator coils employ copper tubing for highly efficient heat transfer and superior ease of maintenance. Their design also includes aluminum fins to maximize surface area and improve dehumidification.

    Flex-Coil
    The MC48C3XC1 features Guardian's flex-coil design. Flex-coils are capable of utilizing either R-22 or R-410A, so they're a great fit for nearly any system, regardless of refrigerant type.

    Condensate Protection
    All Guardian MC evaporator coils include a fiberglass-reinforced thermoset drain pan. Thermoset plastic is rust-proof and highly resistant to heat, making it the perfect choice for condensate management applications.

    Insulated, Reinforced Cabinet
    A galvanized steel cabinet protects the MC48C3XC1 from rust, corrosion, and other hazards. This cabinet features a foil-faced lining to improve efficiency and prevent coil sweating.

    Airflow Versatility
    Guardian's MC coils ship from the factory ready to be installed into systems of any airflow orientation. Whether you're working with an upflow, downflow, or horizontal design, there is an MC coil for your system.

Specifications

MC48C3XC1
specs product image PID-37346
General Information
Type
Evaporator Coil
Product Line
MC
Refrigerant Type
R-22 or R-410a
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 4.0 Tons
Nominal Cooling Capacity
42000 BTU
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 Inches
Product Width
21 Inches
Product Depth
21 1/2 Inches
Product Weight
82 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
