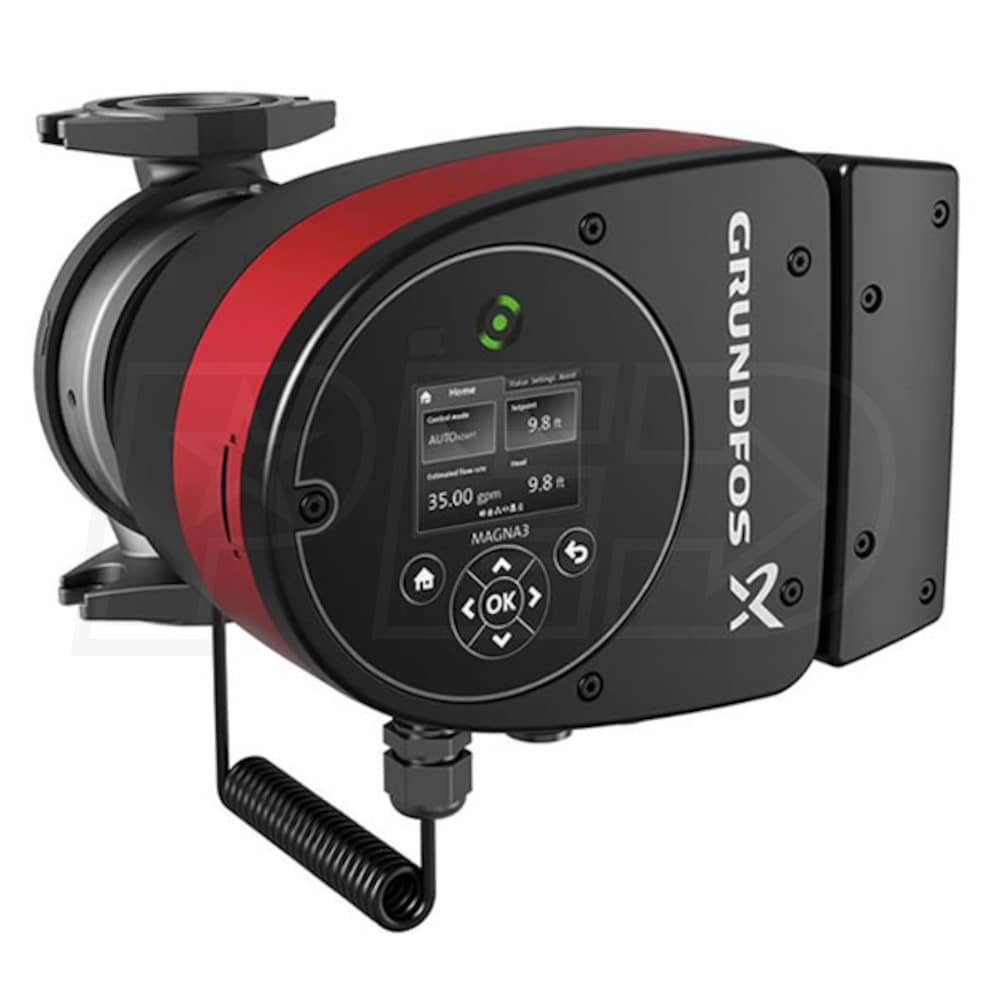

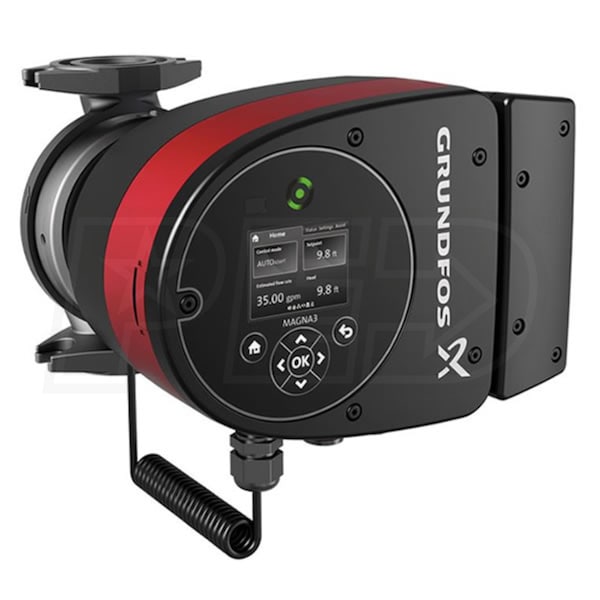

Grundfos MAGNA3 - 3/4 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange

Model:

98126808

Write A Review
$3,448.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Grundfos MAGNA3 - 3/4 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange
Grundfos MAGNA3 - 3/4 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange
Model: 98126808
$3,448.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. With a full-range of intelligent, high efficiency pumps, the MAGNA3 series provides circulation for heating, cooling, ground source heat pump systems and domestic hot water applications.
  • Durable Cast Iron Construction
  • The Grundfos MAGNA3 40-180 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The MAGNA3 40-180 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the MAGNA3 40-180 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Intelligent Control
  • With modes such as Constant Temperature Mode and Proportional Pressure Mode, you have a full range of control mode options with the MAGNA3. State-of-the-art modes like AutoAdapt and FlowAdapt set the MAGNA3 apart from the competition
  • Energy Saving
  • With the lowest Energy Efficiency Index (EEI), the MAGNA3 is the most efficient circulator on the market today. You can achieve energy savings up to 75% as compared to typical circulators.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.

Specifications

98126808
specs product image PID-103031
Overview
Product Category
Boiler Accessories
General Information
Product Line
MAGNA3
Product Category
Boiler Accessories
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Drive Type
Permanent Magnet
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
59 Feet
Maximum Flow Rate
62 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
230 F
Maximum Operating Pressure
174 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
8 1/2 Inches
Product Width
10 10/12 Inches
Product Depth
14 35/48 Inches
Product Weight
40 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
