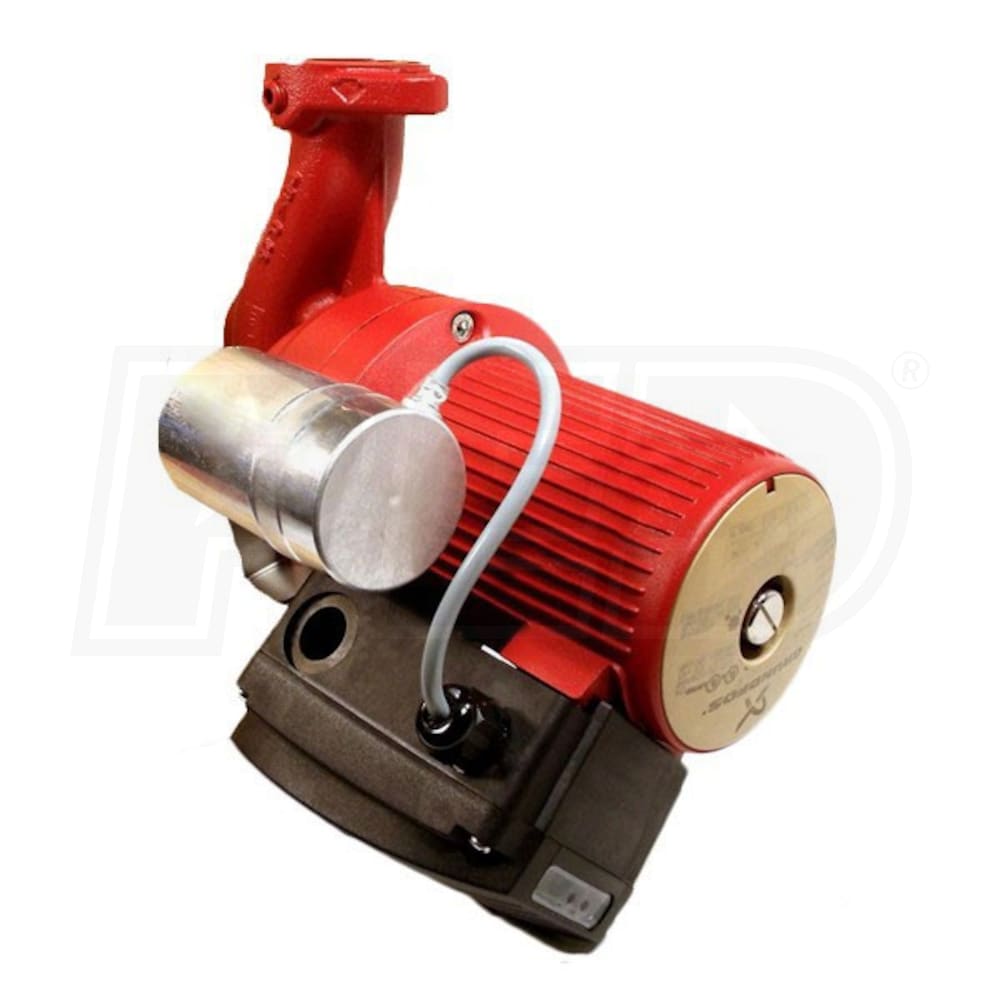

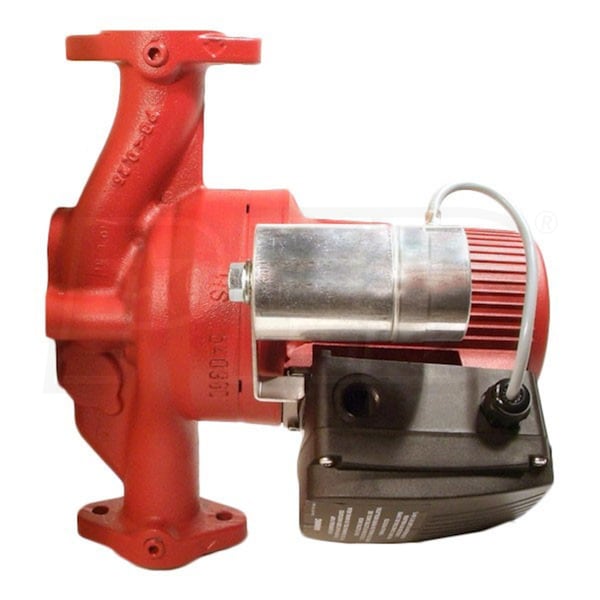

Grundfos UPS - 1-1/2 HP - 2-Speed Circulation Pump - Bronze - GF 40/43 Flange

Model:

96402807

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Grundfos UPS - 1-1/2 HP - 2-Speed Circulation Pump - Bronze - GF 40/43 Flange
Grundfos UPS - 1-1/2 HP - 2-Speed Circulation Pump - Bronze - GF 40/43 Flange
Model: 96402807
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS40-240/2 is a 2-speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Bronze Construction
  • The Grundfos UPS40-240/2 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS40-240/2 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS40-240/2 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.

Specifications

96402807
specs product image PID-36937
Overview
Product Category
Boiler Accessories
UPC
05700390682132
General Information
Product Line
UPS40-240/2
Product Category
Boiler Accessories
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
53.3 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
1 1/2
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
8.4 Amps
Dimensions
Product Height
11 5/16 Inches
Product Width
9 11/16 Inches
Product Depth
11 1/2 Inches
Product Weight
63 Pounds
Flange Connection
GF 40/43
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
