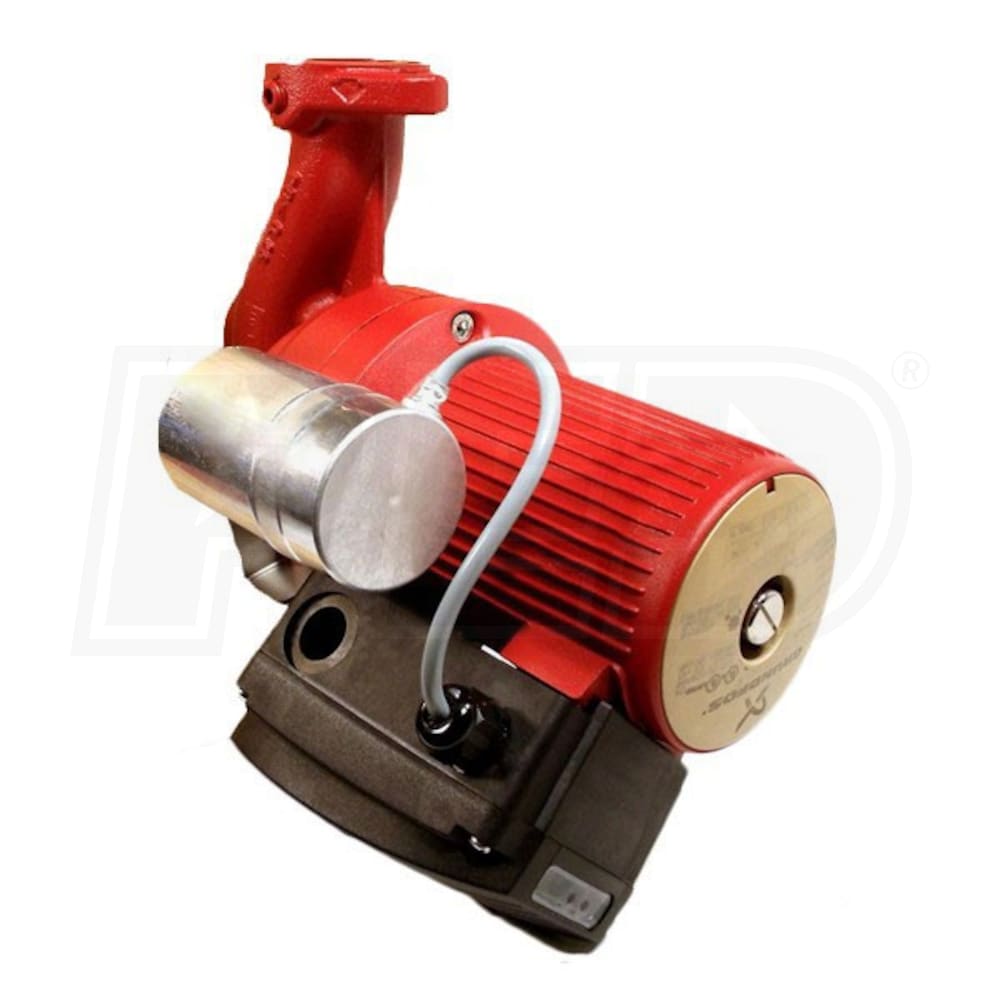

Grundfos UPS - 3/4 HP - 2-Speed Circulation Pump - Cast Iron - GF 40/43 Flange

Model:

96402765

Write a Review
$1,465.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$245 / Month
Suggested monthly payments with 6 month financing.
Grundfos UPS - 3/4 HP - 2-Speed Circulation Pump - Cast Iron - GF 40/43 Flange
Grundfos UPS - 3/4 HP - 2-Speed Circulation Pump - Cast Iron - GF 40/43 Flange
Model: 96402765
$1,465.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS40-80/2 is a 2-speed circulator with a wet-rotor fluid movement design. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Cast Iron Construction
  • The Grundfos UPS40-80/2 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS40-80/2 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS40-80/2 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.

Specifications

96402765
General Information
Product Line
UPS40-80/2
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
05700390680619
Performance
Maximum Head
26.2 Feet
Maximum Flow Rate
45.3 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
3/4
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
4.45 Amps
Dimensions
Product Height
11 15/16 Inches
Product Width
8 3/8 Inches
Product Depth
13 1/2 Inches
Product Weight
42 Pounds
Flange Connection
GF 40/43
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
