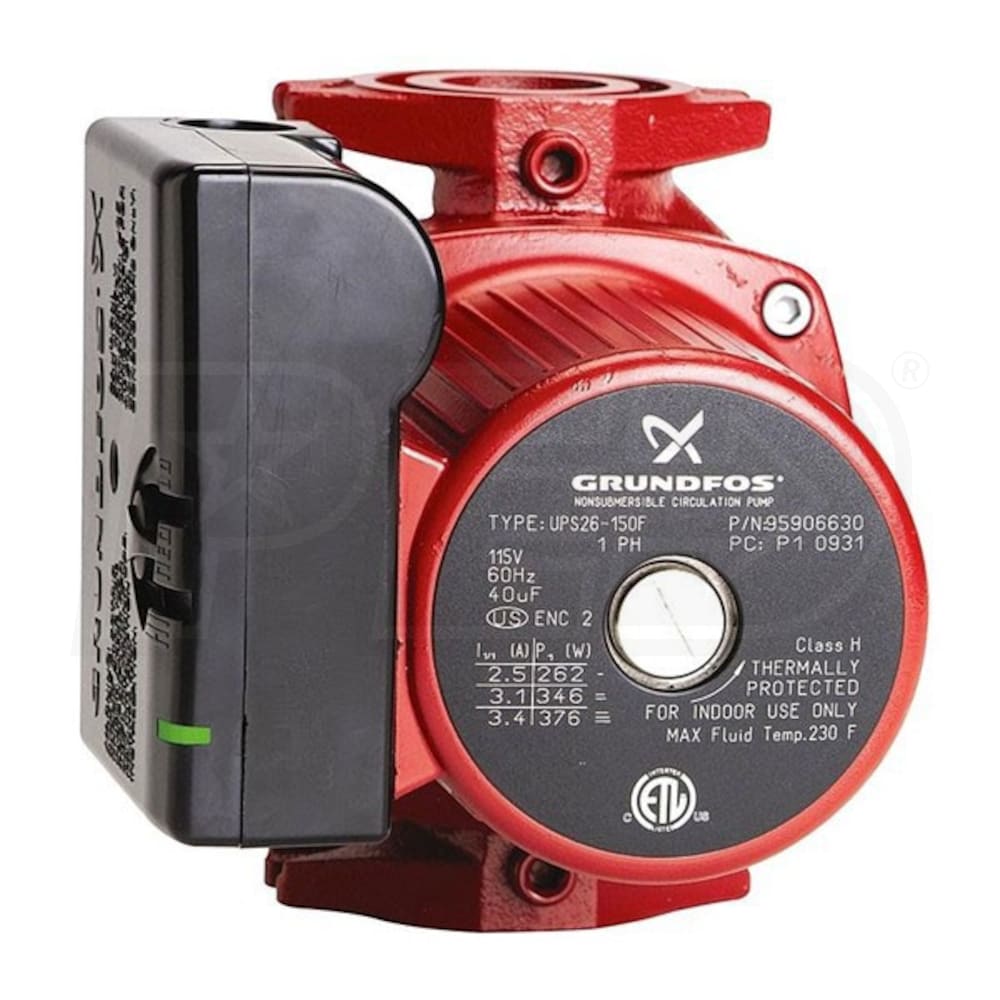

Grundfos UPS - 1/2 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Flange

Model:

95906630

Write A Review
$912.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 16th
Shipping to60601
synchrony card logo
$152 / Month
Suggested monthly payments with 6 month financing.
Grundfos UPS - 1/2 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Flange
Grundfos UPS - 1/2 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Flange
Model: 95906630
$912.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS26-150F is a three speed circulator with a wet-rotor fluid movement design. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Cast Iron Construction
  • The Grundfos UPS26-150F is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS26-150F pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS26-150F lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.

Specifications

95906630
specs product image PID-36848
Overview
Product Category
Boiler Accessories
UPC
05700313291670
General Information
Product Line
UPS26-150
Product Category
Boiler Accessories
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
45.3 Feet
Maximum Flow Rate
52 GPM
Minimum Fluid Temperature
32 F
Maximum Fluid Temperature
230 F
Horsepower
1/2 HP
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
3.5 Amps
Dimensions
Product Height
5 11/16 Inches
Product Width
7 1/8 Inches
Product Depth
6 1/2 Inches
Product Weight
17.4 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
