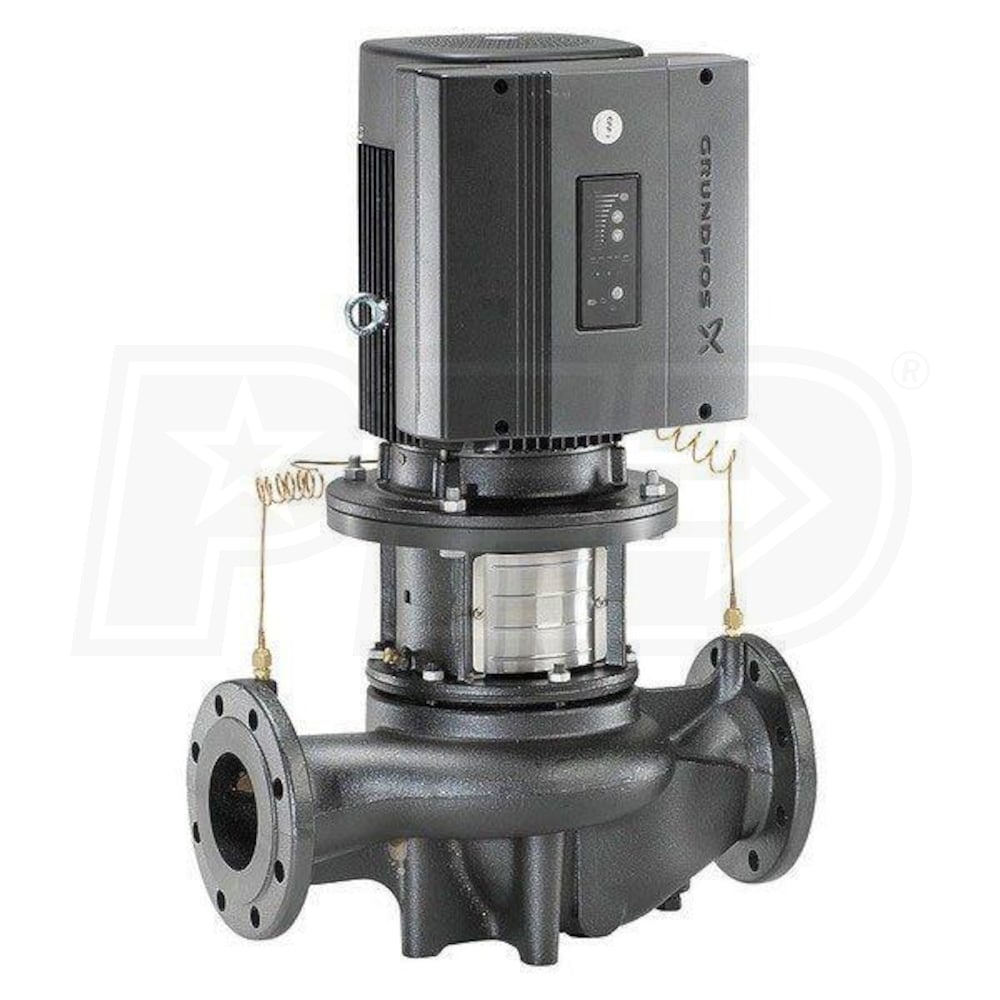

Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount

Model:

91136596

Write A Review
$6,523.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$82 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount
Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount
Model: 91136596
$6,523.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Grundfos TPE50-160/2 is a single-stage, in-line centrifugal pump with a standard motor and mechanical shaft seal. It is a close-coupled type, meaning the pump and motor are separate units, which results in the pump being less sensitive to impurities in the pumped liquid than similar pump of the canned rotor type. This unit's motor features a built-in variable frequency drive, which gradually ramps the motor up to operating capacity rather than abruptly subjecting the motor to a high starting torque and current, which ultimately lessens the mechanical and electrical stress, reduces maintenance and repair costs, and extends the life of the equipment while maintaining an optimal comfort level. This model allows for several configurations and control methods such as constant pressure, temperature or flow via an external signal from either a sensor or a controller. Typical applications include: heating, district heating, air-conditioning, district cooling, industrial cooling, industrial processes and water supply.
  • Grundfos 91136596 Features
  • Significant energy savings
  • Increased comfort
  • Control and monitoring of pump performance
  • Communication with the pump
  • Bronze construction

Specifications

91136596
specs product image PID-36690
Overview
Product Category
Boiler Accessories
UPC
05700838068764
General Information
Product Line
TPE50-160/2
Product Category
Boiler Accessories
Motor Type
Variable Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Bronze
Drive Type
Close-Coupled
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
92.9 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Phase
3
Frequency
60 Hz
Dimensions
Connection Size
2 Inches
Product Height
14 Inches
Product Width
20 5/8 Inches
Product Depth
10 1/2 Inches
Product Weight
110 Pounds
Shipping Weight
117 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
