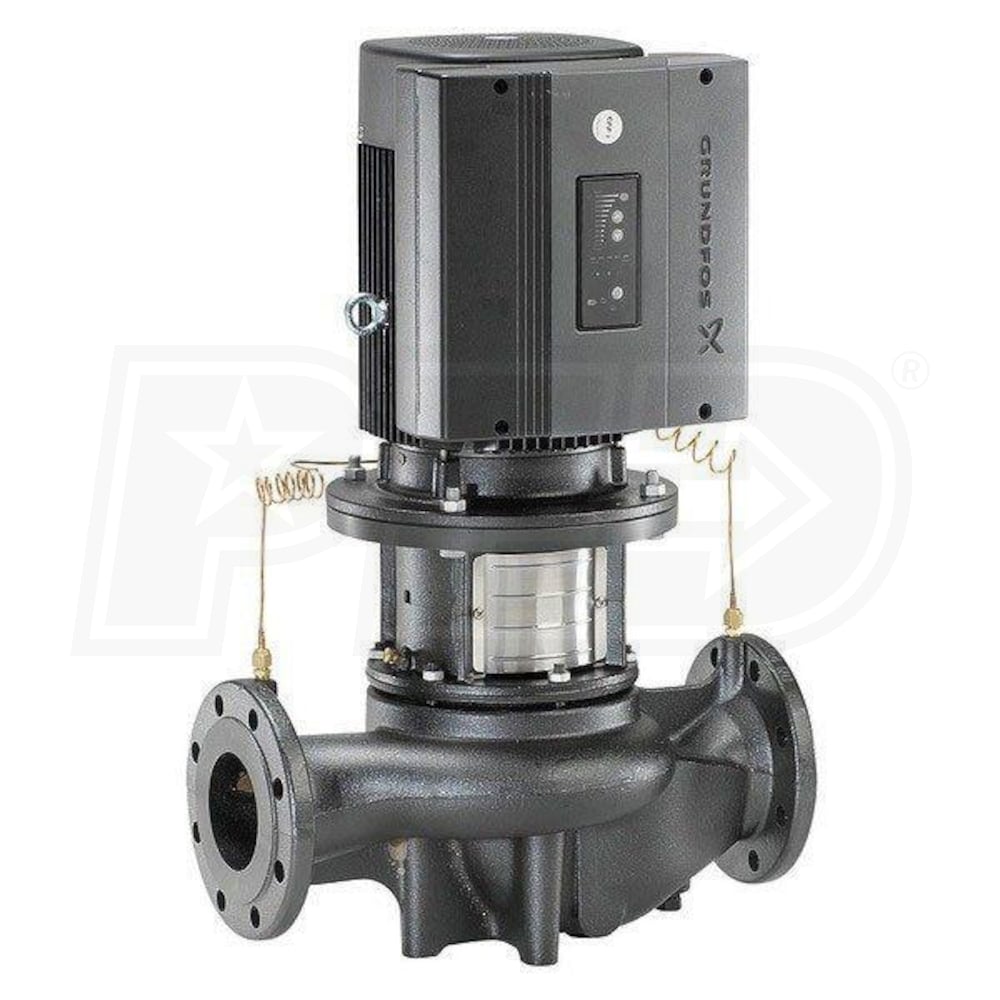

Grundfos TPE40-240/2 E-Circulator Pump with Differential Pressure Sensor, 1-1/2 HP, BUBE Seal, Cast Iron, GF 40/43 Flange Mount

Model:

91136583

Write A Review
$5,933.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$75 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Grundfos  TPE40-240/2 E-Circulator Pump with Differential Pressure Sensor, 1-1/2 HP, BUBE Seal, Cast Iron, GF 40/43 Flange Mount
Grundfos TPE40-240/2 E-Circulator Pump with Differential Pressure Sensor, 1-1/2 HP, BUBE Seal, Cast Iron, GF 40/43 Flange Mount
Model: 91136583
$5,933.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Grundfos TPE40-240/2 is a single-stage, in-line centrifugal pump with a standard motor and mechanical shaft seal. It is a close-coupled type, meaning the pump and motor are separate units, which results in the pump being less sensitive to impurities in the pumped liquid than similar pump of the canned rotor type. This unit's motor features a built-in variable frequency drive, which gradually ramps the motor up to operating capacity rather than abruptly subjecting the motor to a high starting torque and current, which ultimately lessens the mechanical and electrical stress, reduces maintenance and repair costs, and extends the life of the equipment while maintaining an optimal comfort level. It also features a factory-fitted integrated differential-pressure sensor, which continually adjusts the pressure to fit the current demand of the system. This Grundfos pump is an ideal solution for a quick and safe installation, and depending on the type of application, it can offer significant energy-savings, drastically increased comfort or improved processing. Typical applications include: heating, district heating, air-conditioning, district cooling, industrial cooling, industrial processes and water supply.
  • Grundfos 91136583 Features
  • Significant energy savings
  • Increased comfort
  • Control and monitoring of pump performance
  • Communication with the pump
  • Differential pressure sensor
  • Cast iron construction
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.

Specifications

91136583
specs product image PID-36268
Overview
Product Category
Boiler Accessories
UPC
05700838068511
General Information
Product Line
TPE40-240/2
Product Category
Boiler Accessories
Control Type
On/Off
Motor Type
Variable Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Close-Coupled
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
78.7 Feet
Maximum Flow Rate
56.4 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Phase
3
Frequency
60 Hz
Dimensions
Connection Size
1 1/2 Inches
Product Height
13 1/2 Inches
Product Width
17 5/8 Inches
Product Depth
10 1/2 Inches
Product Weight
108 Pounds
Shipping Weight
108 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
