Grundfos 91136578
Grundfos 91136578
Hover to zoom
1 Of 5

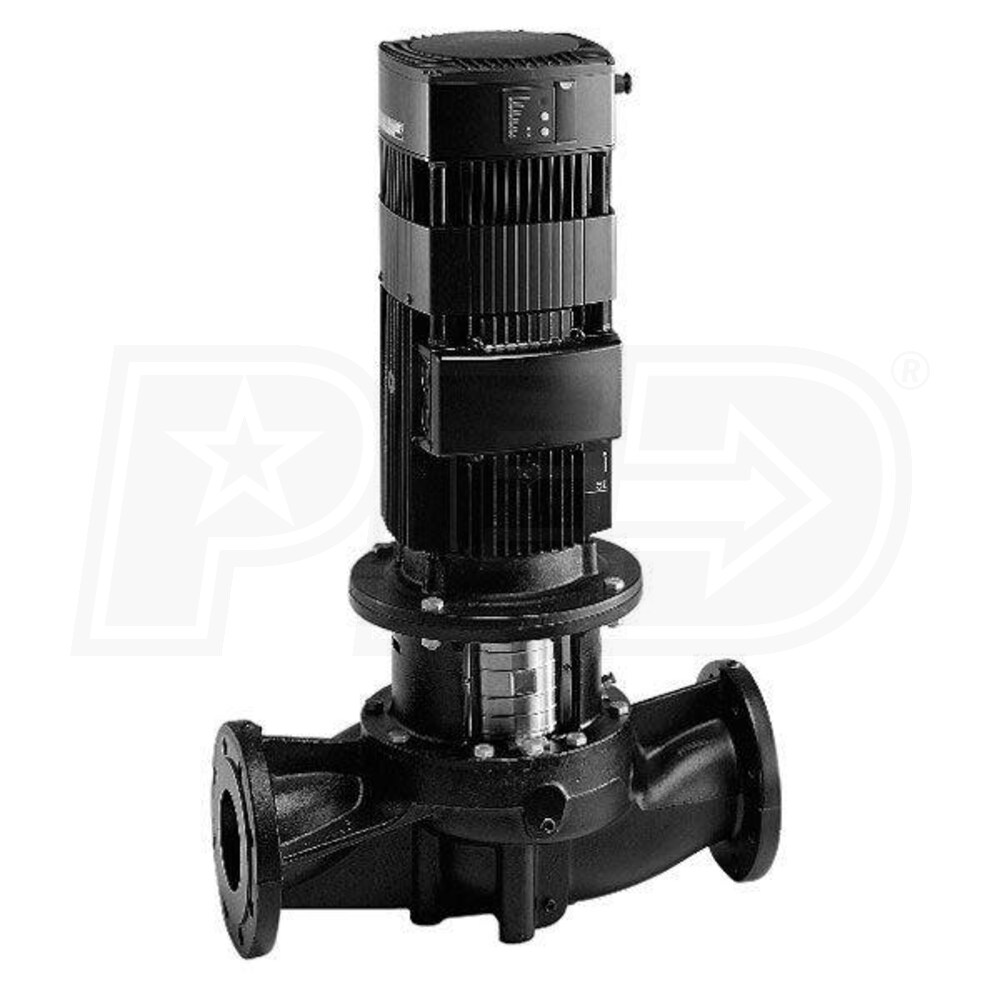

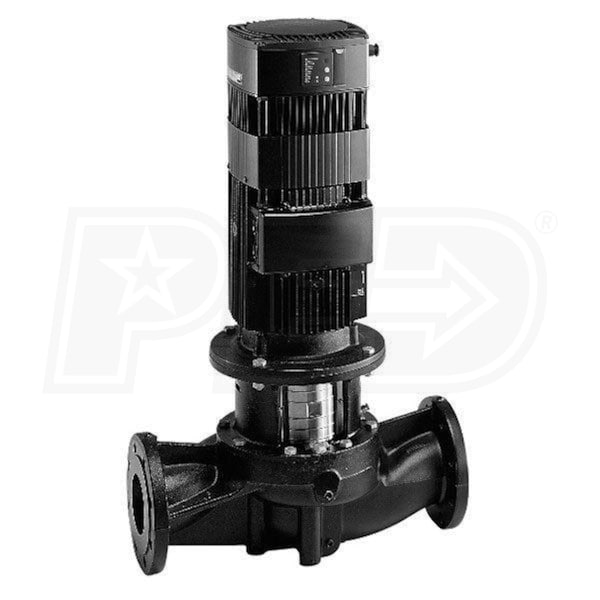

Grundfos 2.5 LPE 5/4.6 E-Circulator Pump, 5 HP, 208-230V, GF 65 Flange Mount

Model:

91136578

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Grundfos 2.5 LPE 5/4.6 E-Circulator Pump, 5 HP, 208-230V, GF 65 Flange Mount
Grundfos 2.5 LPE 5/4.6 E-Circulator Pump, 5 HP, 208-230V, GF 65 Flange Mount
Model: 91136578
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Grundfos 2.5 LPE 5/4.6 E-Circulator Pump, 5 HP, 208-230V, GF 65 Flange Mount

    Whether you are looking for pumps used in closed or open systems, Grundfos is proud to offer you an array of solutions. As the world's leading manufacturer of pumps, they are involved in all aspects of the hydronic industry including the transfer of heated, potable and waste water. Their dedication to deliver products that are dependable, efficient and intuitive has placed them among industry leaders who consistently set the highest standards. Grundfos pumps are equipped with the state-of-the-art electronics, enabling their pumps to regulate the output to precisely match the requirements of the application. Capabilities such as these ensure convenience for the user, result in significant energy savings, and ultimately benefit the customer as well as the environment. One of the reasons that Grundfos has remained in the upper echelons of the industry is due to their emphasis on customer oriented research and sustainable development. By collaborating with various sectors of the industry such as clients, suppliers, universities and institutions, they integrate the latest technologies within the pump industry. No matter the application, if you are seeking an effective and energy saving pump, Grundfos offers you the highest-quality solution.

    The Grundfos 2.5 LPE 5/4.6 is an E-circulator pump. These pumps are equipped with Grundfos MGE motors which have features such as: built-in PI-controller, optional connection to external control signals, setpoint setting on the unit itself and can communicate with the Grundfos remote control R100. Through its frequency control this pump is continuously able to vary the speed of the motor, enabling the pump to operate at any duty point in the range between the pump's minimum and maximum performance curves. This model is specifically engineered to perform according to variable needs and is ideal for use in large heating systems as: main pump, pump in mixing loop, boiler shunt pump, pump for flue gas chiller, pump for partial flow filter, pump in liquid-coupled batteries, pump for pressure keeping system and circulation of domestic hot water. These units are also a great fit for refrigeration heating and air-conditioning systems. Traditionally, the risk associated with refrigeration heating and air-conditioning systems is that the pumped liquid temperature is lower that the ambient temperature, resulting in condensation on the pump housing. Since the 2.5 LPE 5/4.6 is of the closed-coupled type, the pump housing is separated from the motor and electronic unit and is not affected by the condensed water. Due to its ease of installation/service and flexibility in performance, this unit is among the best selling pumps out on the market.

    Grundfos 2.5 LPE 5/4.6 E-Circulator Pump Features:
    • Built-in PI-controller
    • Optional connection to external control signals
    • Setpoint setting on the unit itself
    • Communication with the Grundfos remote control R100
    • Controlled (automatically operates according to the desired setpoint of the control parameter) and uncontrolled (operates according to the constant curve set) operation modes
    Grundfos 2.5 LPE 5/4.6 E-Circulator Pump Warranty:
    • 2 Years

Specifications

91136578
specs product image PID-36310
General Information
Blower Motor
Variable Speed
Control Type
Setpoint Control
Connection Type
Flange
Mount Type
In-Line
Material
Cast Iron
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Weight
200 Pounds
Warranty Information
Warranty Learn More
2 Years
