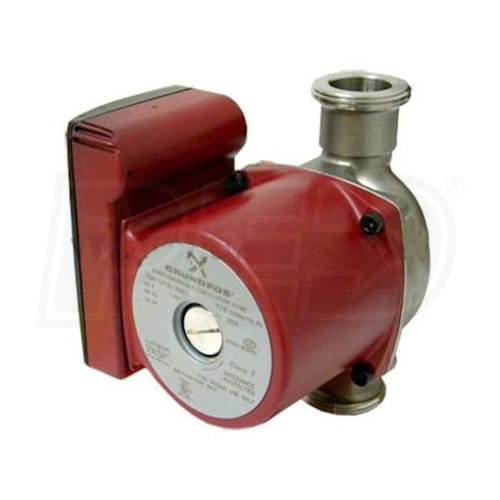

Grundfos UP - 1/13 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union - Check Valve

Model:

59896786

Write A Review
$613.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$103 / Month
Suggested monthly payments with 6 month financing.
Grundfos UP - 1/13 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union - Check Valve
Grundfos UP - 1/13 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union - Check Valve
Model: 59896786
$613.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-55SUC is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Stainless Steel Construction
  • The Grundfos UP15-55SUC is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-55SUC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-55SUC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.

Specifications

59896786
specs product image PID-36752
Overview
Product Category
Boiler Accessories
UPC
05700837428187
General Information
Product Line
UP15-55
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Union Mount
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
17.1 Feet
Maximum Flow Rate
21.6 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/12
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.42 Amps
Dimensions
Product Height
5 1/16 Inches
Product Width
4 2/3 Inches
Product Depth
5 7/8 Inches
Product Weight
5.4 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
