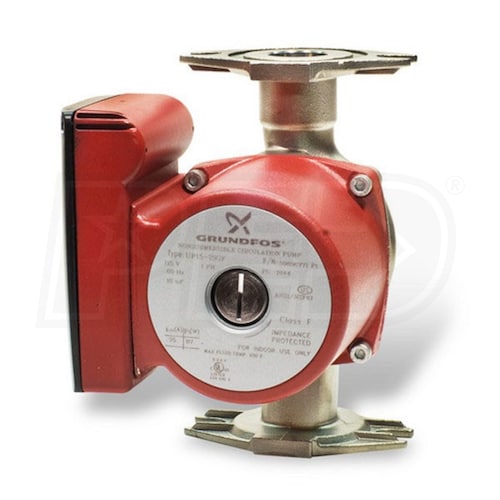

Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GF 15/26 Flange

Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GF 15/26 Flange
Our Price
Compare Prices
Shipping Info
Model: 59896771
(Based on expert analysis, manufacturer ratings and customer reviews)
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews (11)
Write A Review
$198.00
In-Stock
Ships Thursday, Oct 18th

In-Stock
Ships Thursday, Oct 18th
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 11
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SF is a single speed circulator with a wet-rotor fluid movement design. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Stainless Steel Construction
  • The Grundfos UP15-29SF is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-29SF pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-29SF lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.5 Inches
Product Width
4.875 Inches
Product Depth
6.5 Inches
Product Weight
6 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SF is a single speed circulator with a wet-rotor fluid movement design. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Stainless Steel Construction
  • The Grundfos UP15-29SF is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-29SF pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-29SF lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.5 Inches
Product Width
4.875 Inches
Product Depth
6.5 Inches
Product Weight
6 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.5 Inches
Product Width
4.875 Inches
Product Depth
6.5 Inches
Product Weight
6 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(11)
+
Grundfos 59896771 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(3)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Can Grundfos model 59896771 be used on domestic hot water recirculation line? I see it has a stainless body.
Kent H
from Ohio
August 22, 2016
Answer
Yes, this pump can be used for domestic hot water.
+
Can this pump work upside down? That is installed vertically but the flow goes from above to below?
Robert
from Illinois
December 31, 2015
Answer
The pump can be installed in any orientation as long as the motor shaft is located horizontally. It is also best practice to have the terminal box on one side of the pump with the conduit entry facing down. Details can be found in the installation manual on page 7.
+
My pump froze. Is there more to changing out the pump than shutting both gate valves and undoing the 4 bolts?
Mike
from California
September 19, 2015
Answer
As long as there are isolation valves on either side of the pump, you should be okay. You might need new flanges if they are leaking. Please refer to the Grundfos UP Installation Manual for more details.
